How to Register a DS1103
To register a DS1103, carry out the following instructions.
Method To register a DS1103
1 From the menu bar, choose Platform – Initialization – Register...

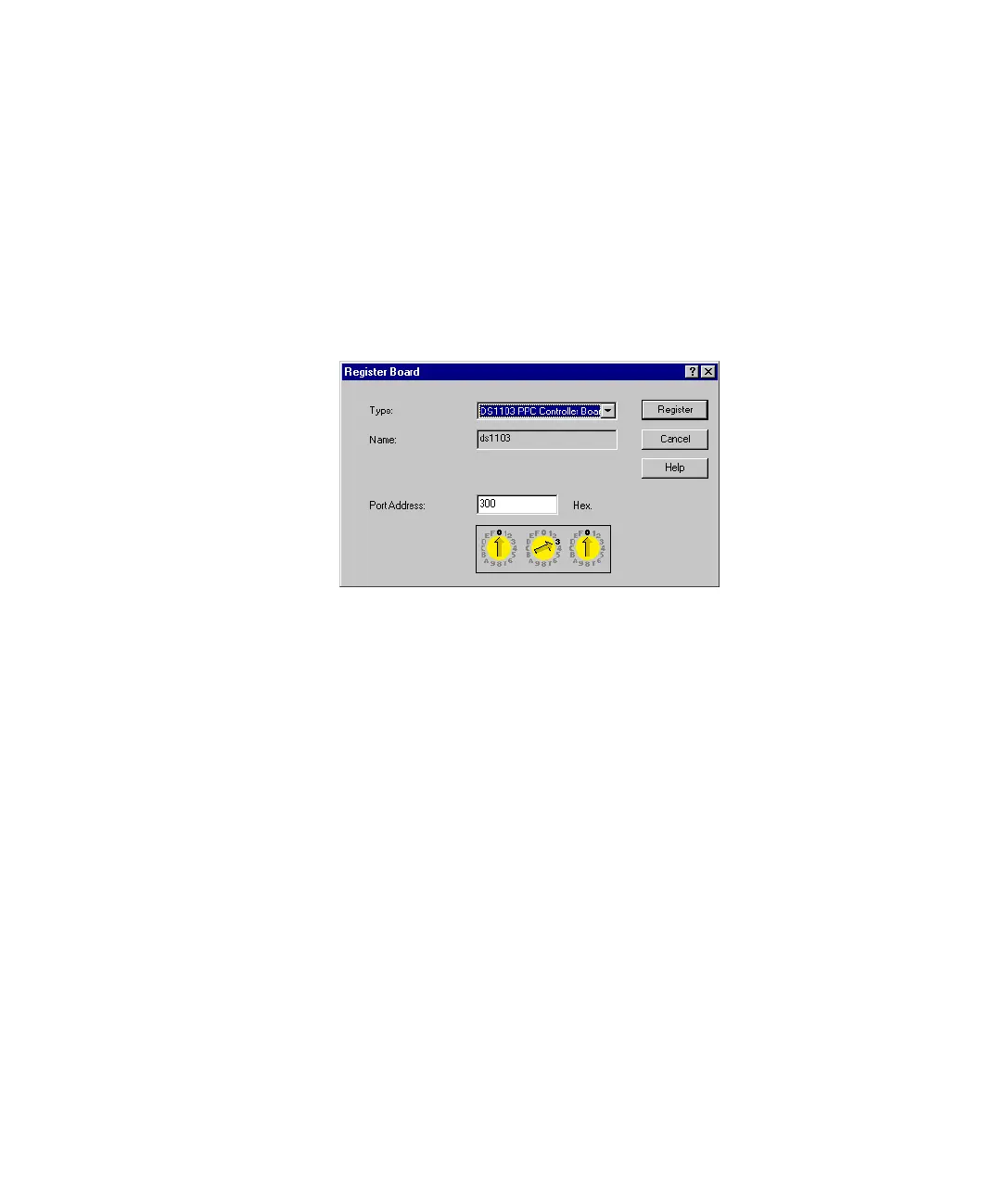

to call up the Register Board dialog.
2 In the Register Board dialog, select “DS1103 PPC Controller
Board” as the Type.
3 Enter the I/O base address selected on the board in the Port
Address edit field as a hexadecimal number, or use the address
switches to adjust the address.
4 Click Register.
The DS1103 is registered and ControlDesk returns to the Platform
Navigator.
Automatic
firmware update
When you register the board, ControlDesk’s Platform Manager will
automatically update its firmware to the available version if the current
version is lower than the available one. This is the default setting after
you install the dSPACE software. You can also switch off automatic
updating. For details, see Platform Manager Page in the ControlDesk
Reference.
