DS1103 Hardware Installation and Configuration March 2004
Iā ā ā ā ā ā ā ā ā ā ā ā ā
ā¼
228
ā ā ā ā ā ā ā ā ā ā ā ā ā ā ā ā¼
AutoBox without
heater

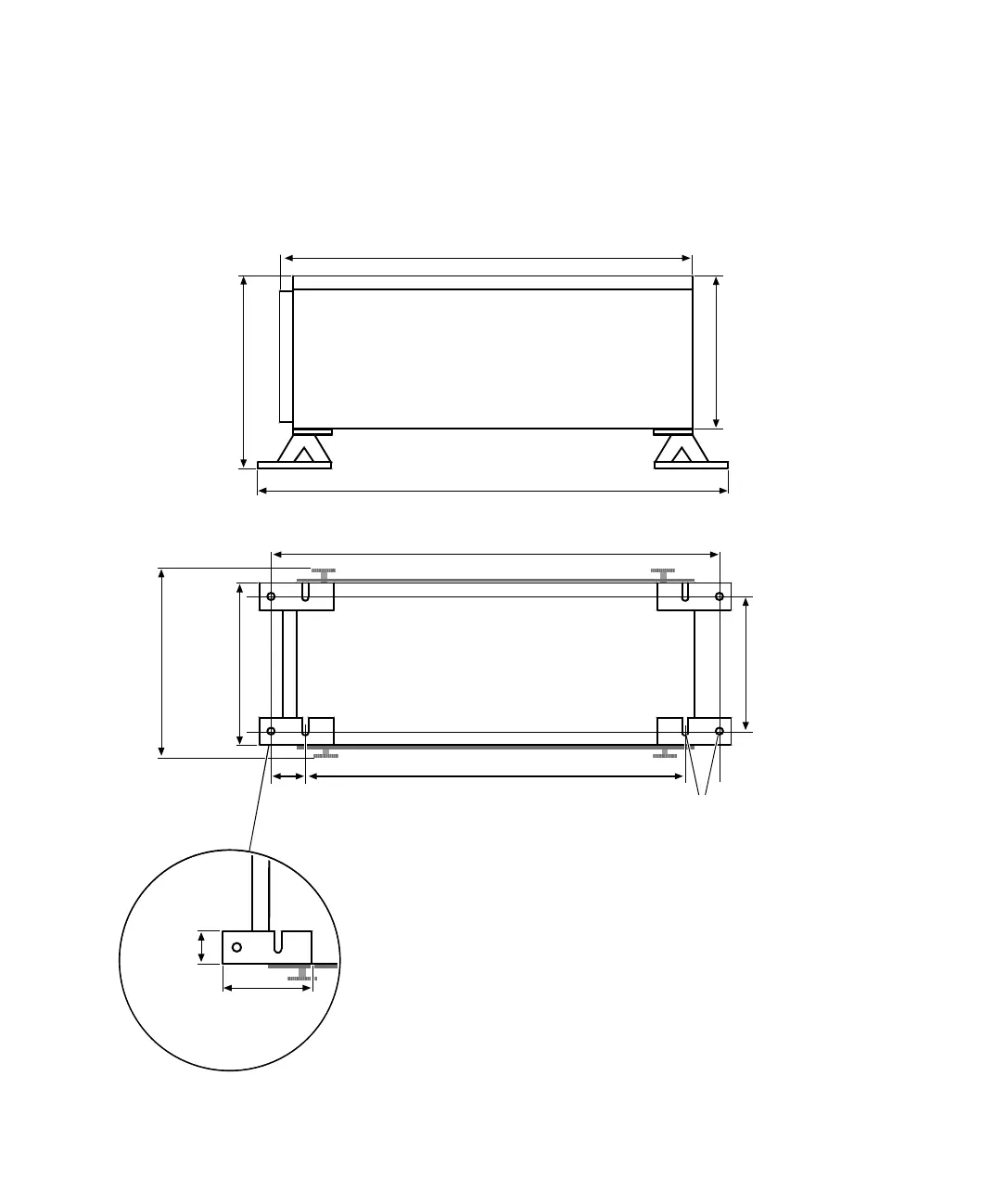

The following diagrams show the physical dimensions of the AutoBox
without heater.
Not to scale
435 mm (17.1 in.)
165 mm
(6.5 in.)
195 mm
(7.7 in.)
480 mm (18.9 in.)
195 mm
(7.7 in.)
170 mm
(6.7 in.)
463 mm (18.2 in.)
395 mm (15.5 in.)
6.4 mm dia.
(0.25 in.)
33 mm
(1.3 in.)
220 mm
(8.6 in.)
67 mm
(2.63 in.)
24.5 mm
(0.96 in.)
