DS1103 Hardware Installation and Configuration March 2004
Iā ā ā ā ā ā ā ā ā ā ā ā ā
ā¼
230
ā ā ā ā ā ā ā ā ā ā ā ā ā ā ā ā¼
Tandem-AutoBox
without heater

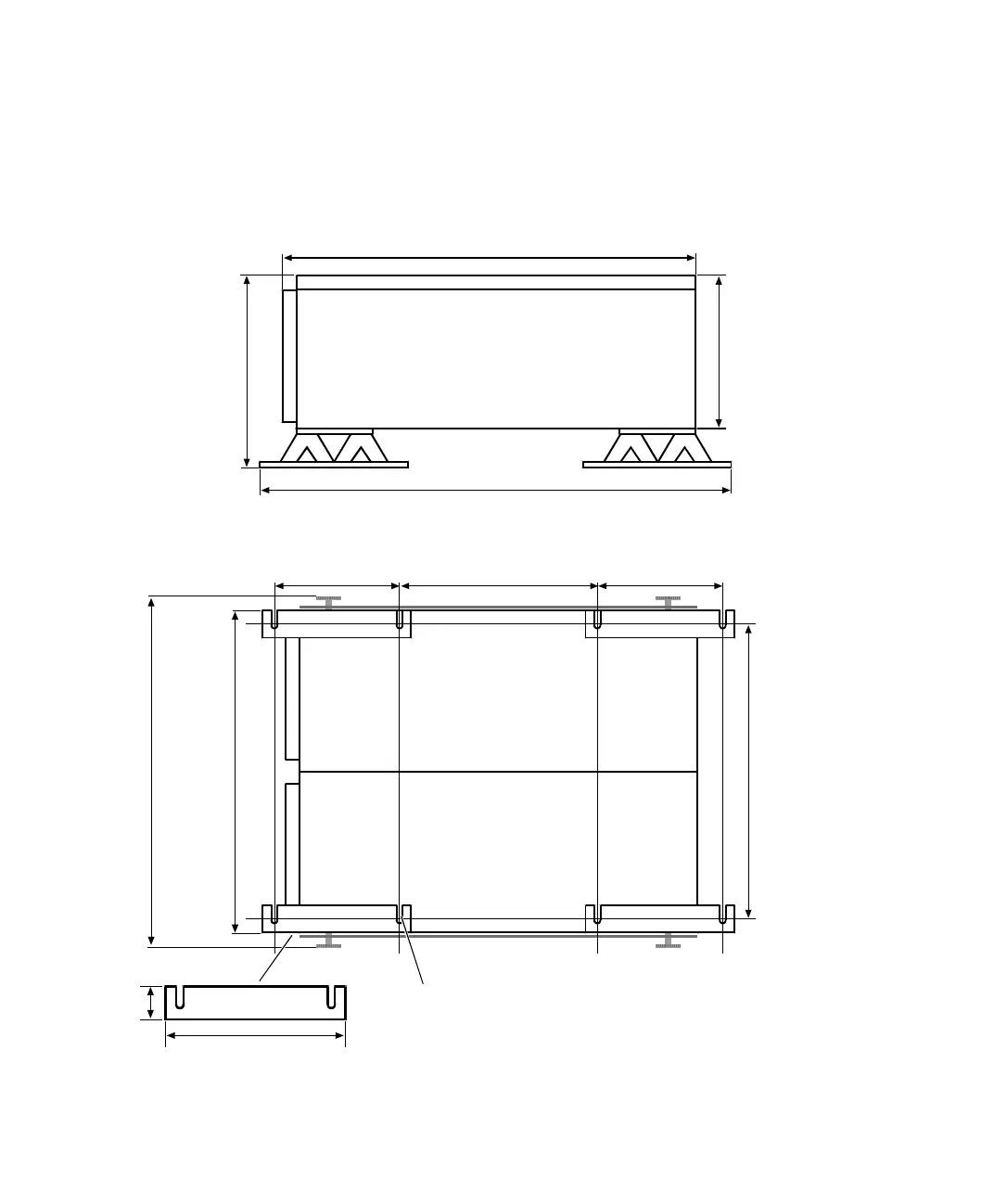

The following diagrams show the physical dimensions of the
Tandem-AutoBox without heater.
435 mm (17.1 in.)
165 mm
(6.5 in.)
195 mm
(7.7 in.)
495 mm (19.5 in.)
120 mm (4.7 in.)
390 mm
(15.35 in.)
368 mm
(14.5 in.)
240 mm (9.4 in.) 120 mm (4.7 in.)
Not to scale
415 mm
(16.6 in.)
6.4 mm dia.
(0.25 in.)
135 mm (5.31 in.)
24.5 mm
(0.96 in.)
