dSPACE DS1103 Hardware Installation And Configuration

Setting Up an Ethernet Connection Between PC and Expansion Box ▲ ■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
■
DS1103 Hardware Installation and Configuration March 2004
I■■■■■■■■■■■■■ ▼
84
■■■■■■■■■■■■■■■▼

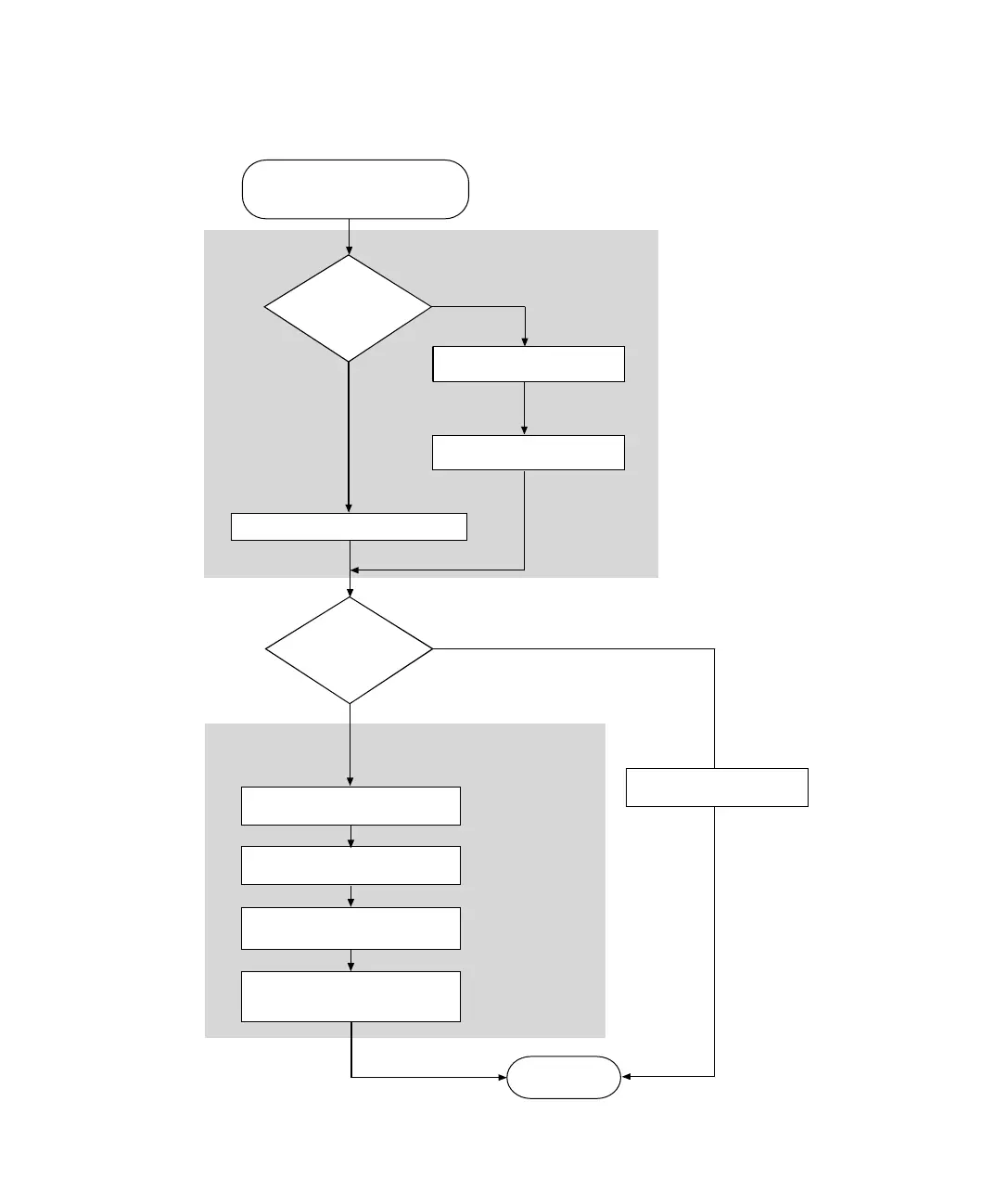

Expansion Box
Ready for Use
Integrate
the Expansion
Box into an Existing
Network?
No
How to Prepare and Set Up
the TCP/IP Protocol
Is a
Network Adapter
Installed on
the PC?
How to Set Up the TCP/IP Protocol
Installing a Network
Adapter on the PC
How to Change the TCP/IP
Configuration on the PC
How to Set Up a Peer-to-Peer
Connection
How to Integrate the Expansion
Box into a Network
How to Change the IP Address
of the Expansion Box
How to Restore the TCP/IP
Configuration of the PC
How to Connect the Expansion
Box to the Network and
Test the Connection
Yes
No
How to Set Up a
Peer-to-Peer Connection
Yes
Connecting an Expansion
Box via Ethernet Under
Windows 2000/Windows XP
see page 86
see page 85
see page 93
see page 94
see page 95
see page 96
see page 88
see page 89
see page 85
see page 89
