5.2.2 Lubricating with grease
Allowing the machine to operate at peak efficiency requires that
its moving parts be lubricated sufficiently.
Lubrication points on the rear of the machine

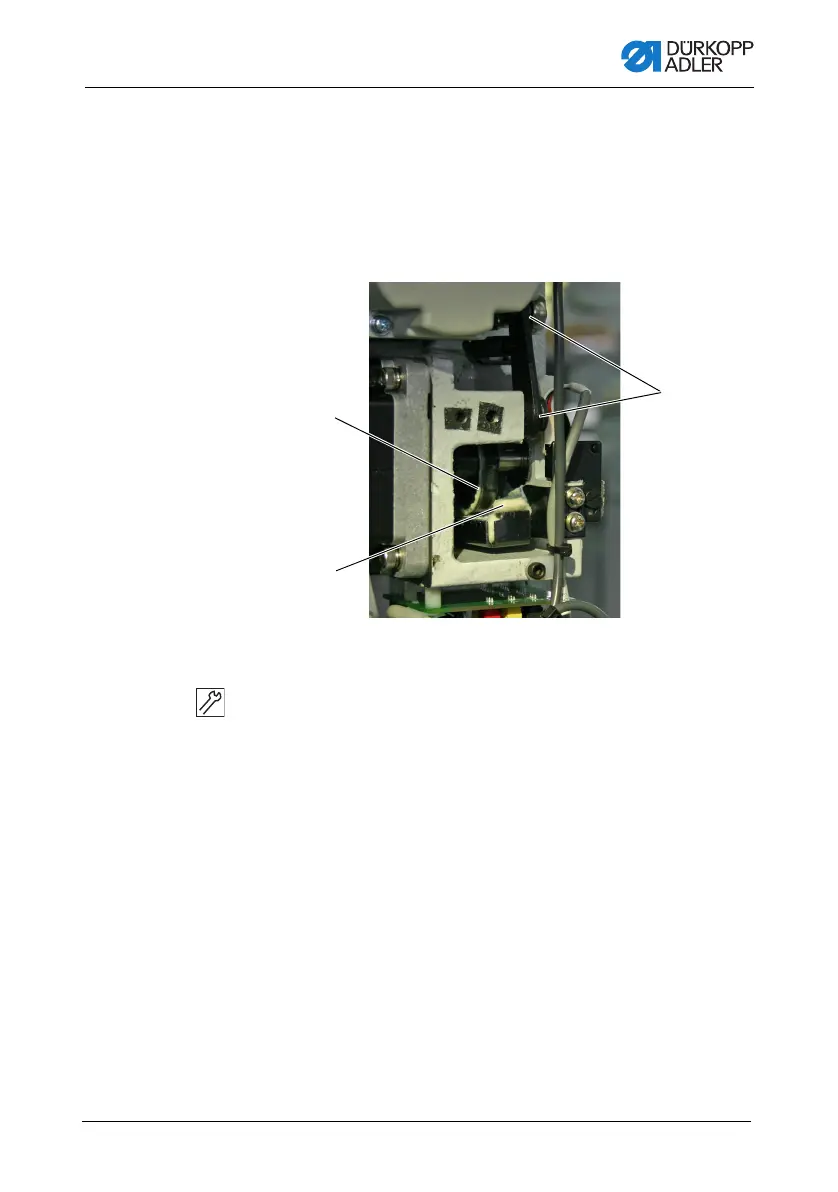

Fig. 53: Lubricating (1)
To lubricate the rear of the machine:
1. Apply an adequate amount of grease to the fleece (2) to lubri-
cate the outer side of the cam disk (1).
2. Apply a small amount of grease to the joints (3) to ensure
they remain flexible.
(1) - Cam disk
(2) - Fleece
(3) - Joints
