Setup
Operating Instructions 513/533 - 01.0 - 09/2023 95
6.3.8 Assembling the oil collection tray

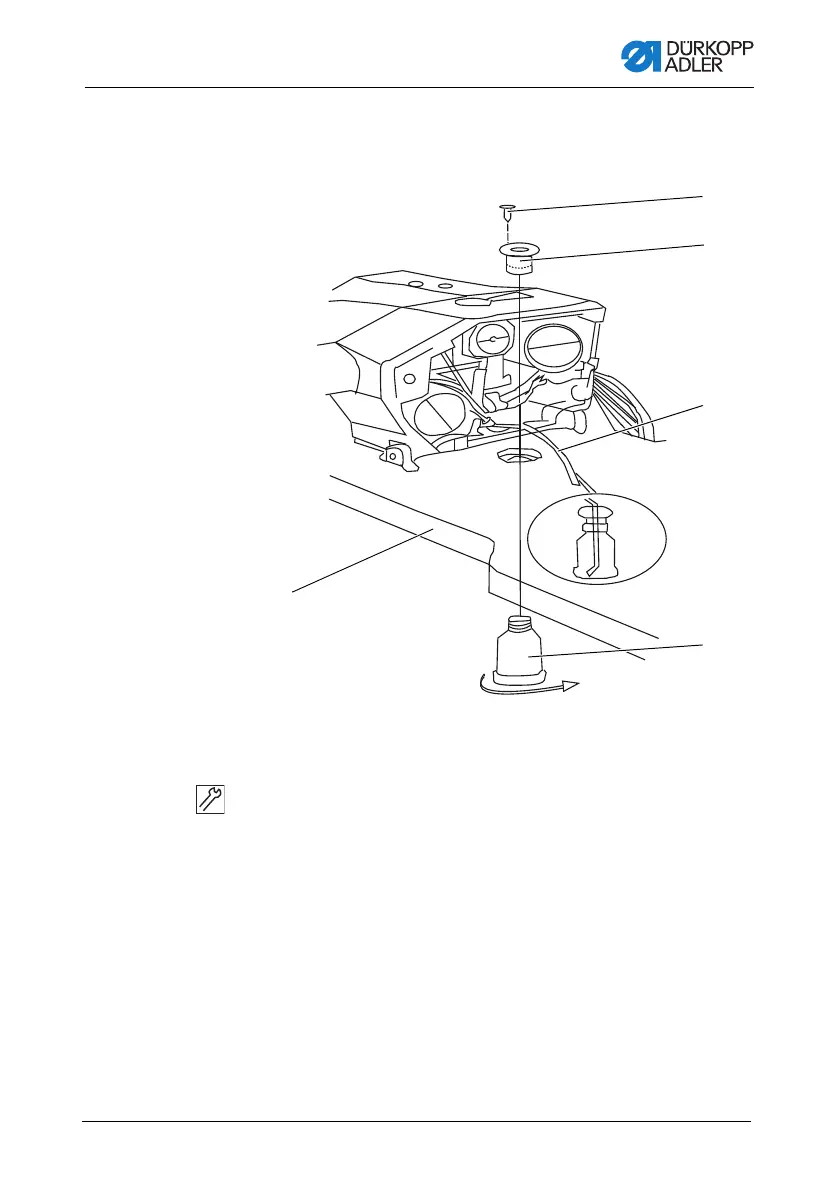

Fig. 65: Assembling the oil collection tray
To assemble the oil collection tray:
1. Insert the holder (2) into the hole of the tabletop (5) and screw
it in place using 3 screws (1).
2. Screw the oil collection tray (4) into the holder (2).
3. Plug the oil line (3) into the oil collection tray (4).
4. Plug the rubber mounts into the tabletop (5).
(1) - Screw
(2) - Holder
(3) - Oil line
(4) - Oil collection tray
(5) - Tabletop
