Operation
Operating Instructions 513/533 - 01.0 - 09/2023 19
3.4 Winding the hook thread

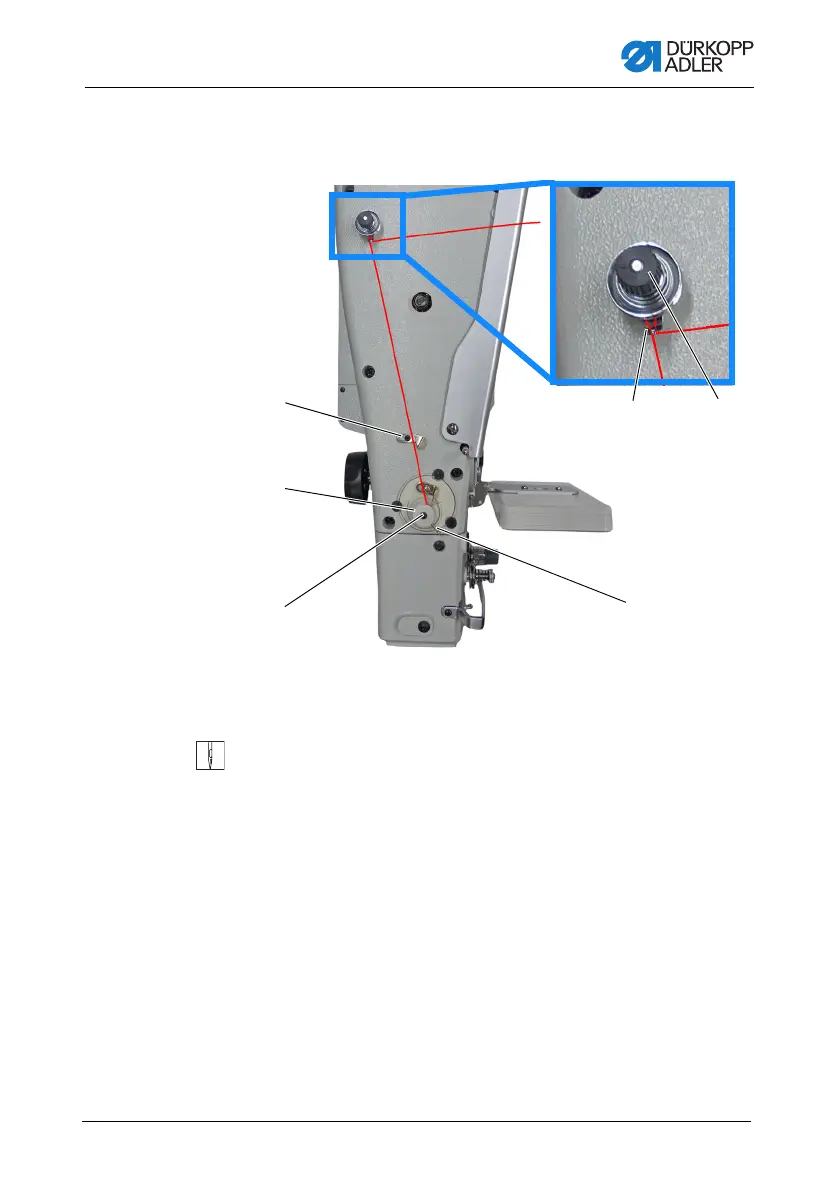

Fig. 4: Winding the hook thread
To wind the hook thread:
1. Fit the bobbin (2) on the bobbin shaft (3).
2. Pull the thread through the guide (5) and around the tensioner
element (6).
3. Wind the thread counterclockwise approx. 5 x around the
bobbin core (2).
4. Press the winder lever (4) into the bobbin.
5. Start sewing.
The bobbin winder stops automatically when the configured
bobbin filling quantity has been reached.
6. Tear off the thread at the thread clamp (1) after winding.
If the thread must be wound without sewing, then the thread
winding mode can be set in the control ( p. 37).
(1) - Thread clamp
(2) - Bobbin
(3) - Bobbin shaft
(4) - Winder lever
(5) - Guide
(6) - Tensioner element
