DURKOPP ADLER 806 Service Instructions

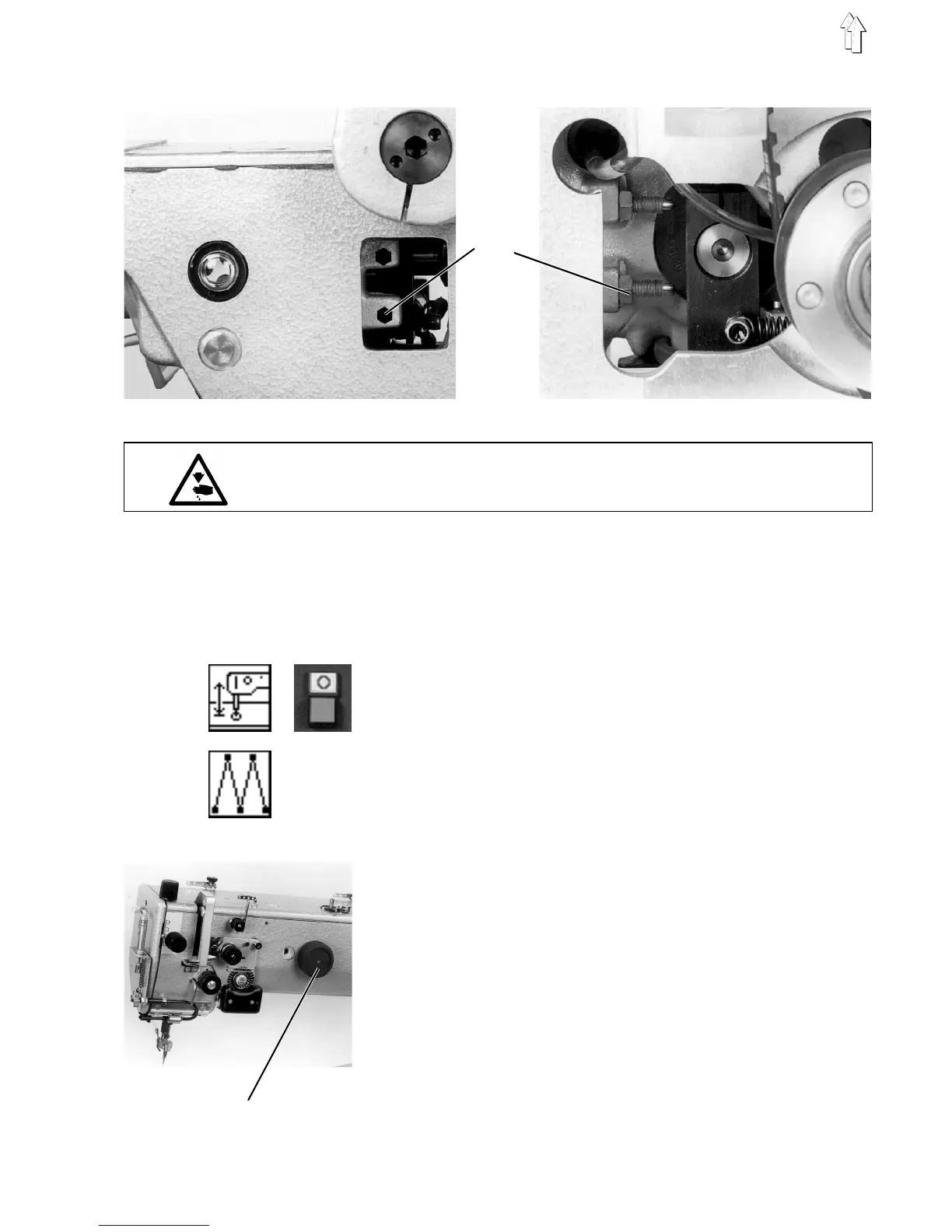

2.2.4 Range of the rocker oscillation (throw width)
Caution: Danger of bodily injuries !
The machine must be in the position "Safe motor stop ".
Rule and control
In the zigzag mode of the machine, the "upper" and the "lower"
stitches on a piece of paper should have a distance of 5 mm.
In a set pocket, this will result in a throw width of about 3 mm,
depending on the type of fabric and thread and on the thread tension.
–
Lower the sewing head by the function "
Lifting/lowering the
sewing head
".
–
Press the key "
O
".
"Safe motor stop " will be switched on.
–
Select the "
zigzag
" function.
–
Place a piece of fabric onto the fabric rest and hold it there.
–
Turn the handwheel.
Correction
–
Turn the counter-nut 1 and the stop screw 1 accordingly.
1
2
11

DURKOPP ADLER 806 Specifications

General

Type	Industrial sewing machine
Stitch Type	Lockstitch
Max. Sewing Speed	3000 stitches per minute
Needle System	134
Motor	Servo motor
Voltage	220-240 V
Frequency	50/60 Hz
Machine Weight	Approx. 45 kg
