DURKOPP ADLER 806 Service Instructions

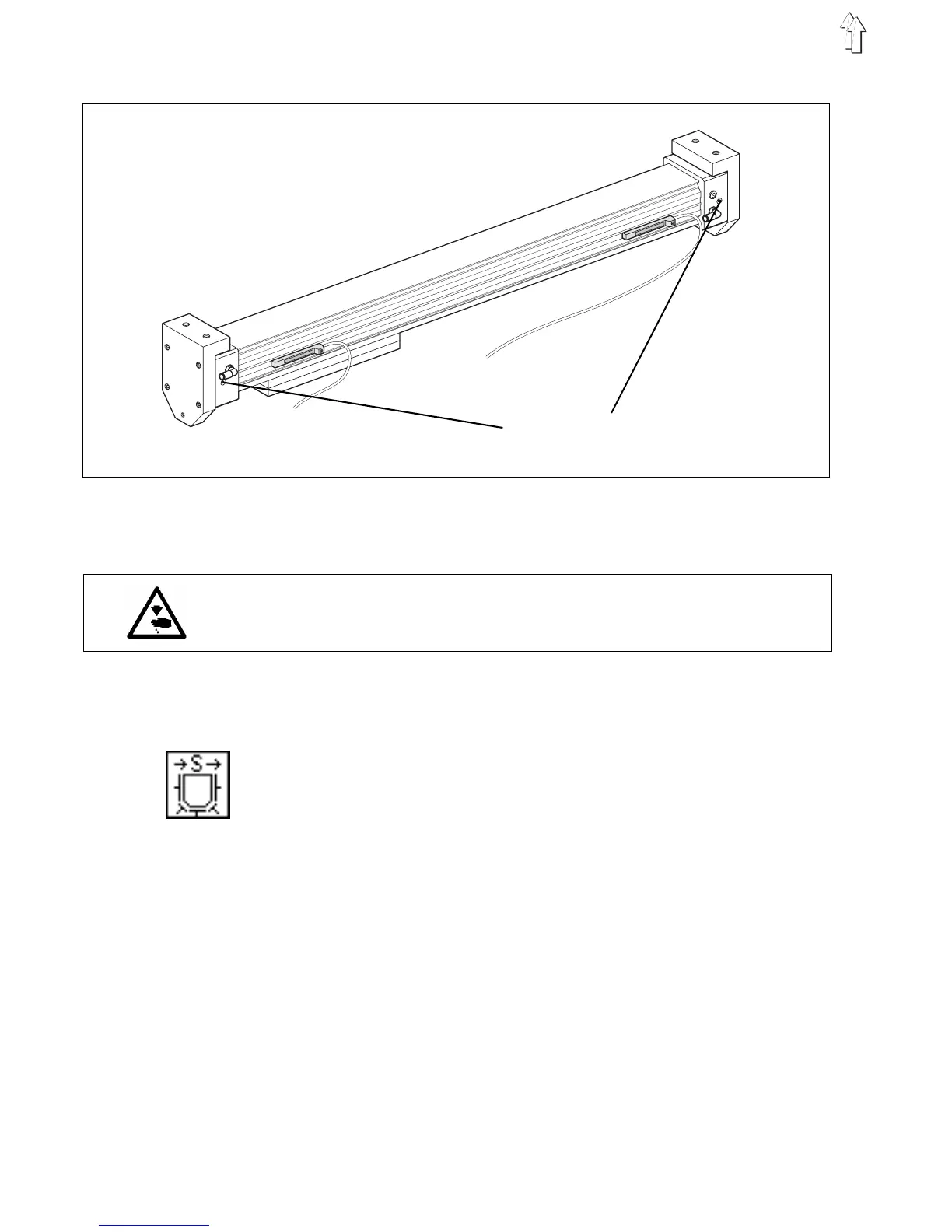

4.1.4 Damping the cylinder in its end position
The damping of the pistonrod-free cylinder "Outer frame forwards and
backwards " begins already 20 mm from the end positions.
Caution: Danger of bodily injuries !
Do not introduce your hands into the area of the moving machine parts.
Rule and control
–
Watch the damping during the automatic cycle
or
–
select the function "
Single step mode
".
–
By pressing the "
Start
" key carry out the single steps and watch
the damping of the cylinder.
Correction
–
Set the end positions 1 and 2 on the cylinder so that the outer
frame moves softly into the end positions.
1 2
70
