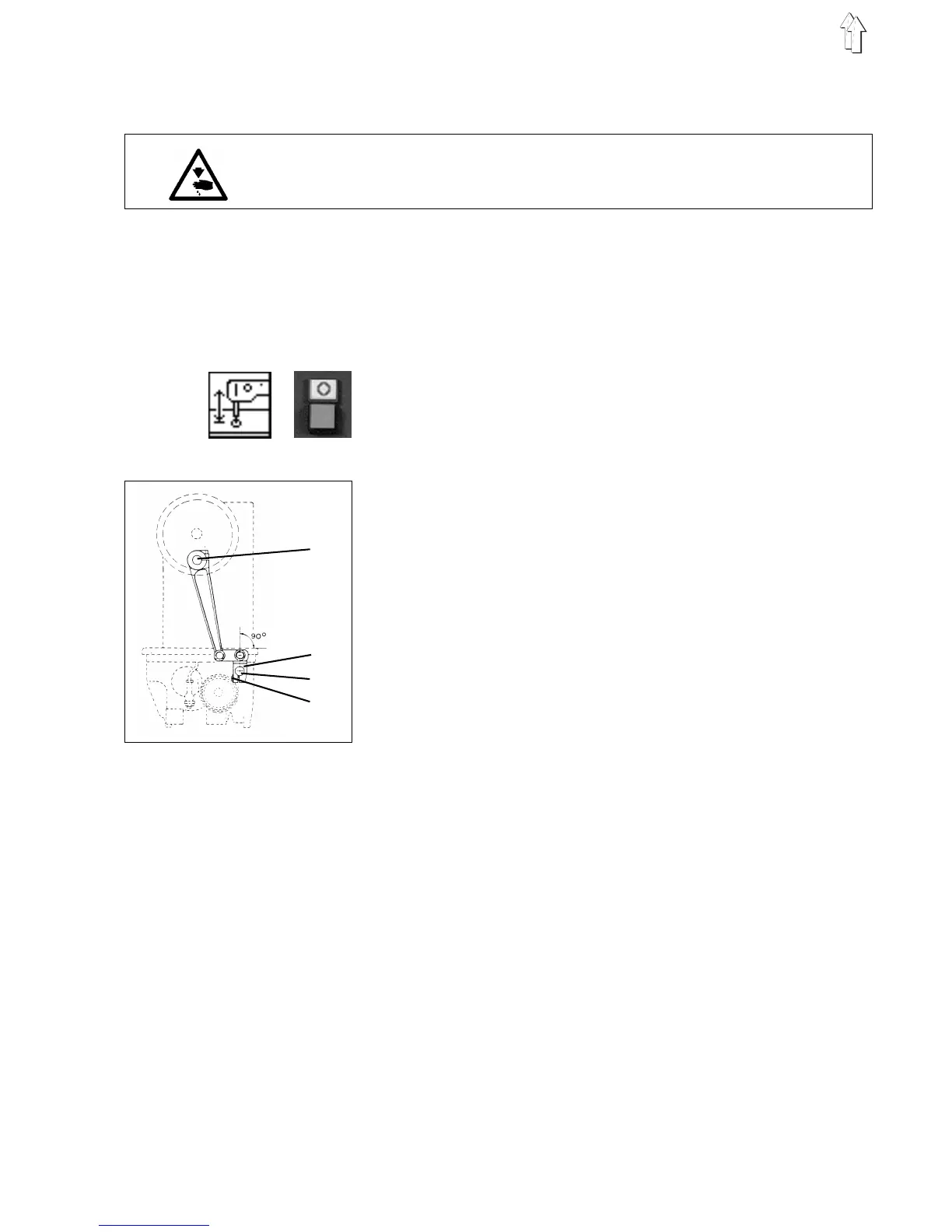

2.1.2 Position of the transmission lever
The lever 2 transmits the motion of the feed shaft 3 to the rocker 1.
Caution: Danger of bodily injuries !
The machine must be in the position "Safe motor stop".
Rule and control
The lever 2 should be in vertical position when the zigzag function is
snot activated.
Correction
Lower the sewing head by the function "
Lifting/lowering the
sewing head
".
Press the key "
O
".
"Safe motor stop " will be switched on.
Loosen screw 4.
Turn the lever on the shaft accordingly.
Tighten screw 4.
Note
In case of a wrong adjustment, the ”oscillations” of the needle bar and
of the throat plate will not be synchronous during the zigzag operation.
1
2
3
4
7
