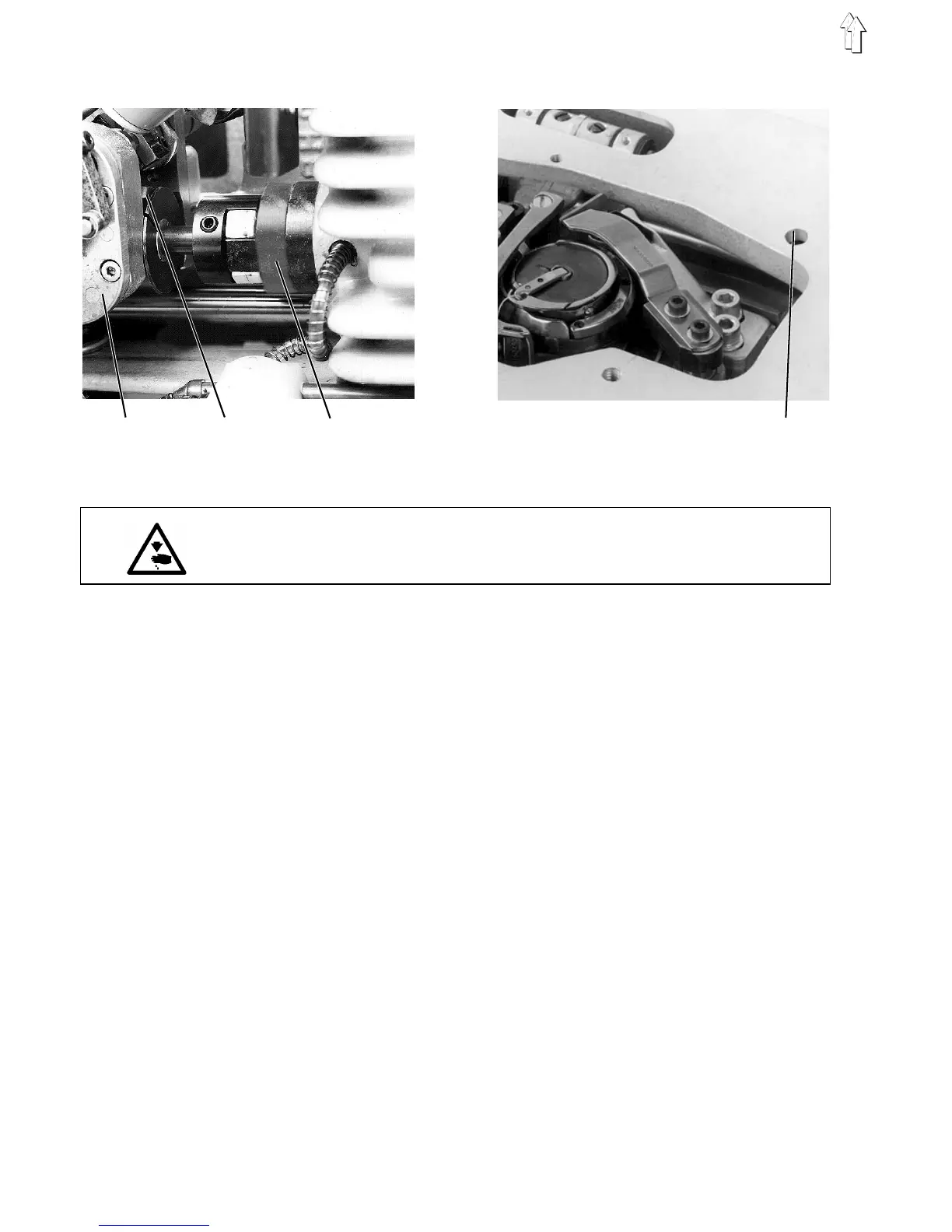

2.4.2 Sliding clutch
Caution: Danger of bodily injuries !
The machine must be in the position "Safe motor stop ".
Rule and control
The sliding clutch should react when the hook is jammed.
Adjust the sliding clutch 3 so that it reacts at a torque of 4 Nm.
Correction
–
If the clutch reacts too often, turn-in the two screws (spanner
opening 3 mm) at the on the face of the sliding clutch 3.
If the
two
screws are turned a quarter (1/4) of a revolution, the
torque will e increased by about 10 %.
Re-engage the sliding clutch
Following a reaction of the sliding clutch, the latter must be
re-engaged in the following manner::
–
Introduce the hexagon screw driver into the screw of the
bore-hole 4 and into the clamping screw 2.
–
Turn the handwheel 6 until the clutch is re-engaged.
1 2 3
4
16
