7.4 Setting the limit switches S45 and S59
Note:
If the limit switches have been installed, they must be activated by the
function "Limit switches available " (see chapter 6.4).
7.4.1 x-axis
Rule and control
The limit switch (S45) for the X-axis limits the maximum travel to the
left. About 2 mm from the mechanical stop the drives will be stopped in
case of an automatic mode of operation.
–
When switching on the machine, hold the key "
F3
" pressed down.
The multitest menu will appear.
–
Select the function "
Checking the input elements
".
–
Select the switch S45.
–
Displace the transfer carriage by hand from the sewing position to
the left, to the folding station.
When the circuit state of the limit switch changes, the display will
chage from "
S45
:
+
" to "
S45
:
-
".
–
Shift the transfer carriage to the point where the switch acts.
–
The switch must act about 5 mm on the left from the position where
the folding takes place (.

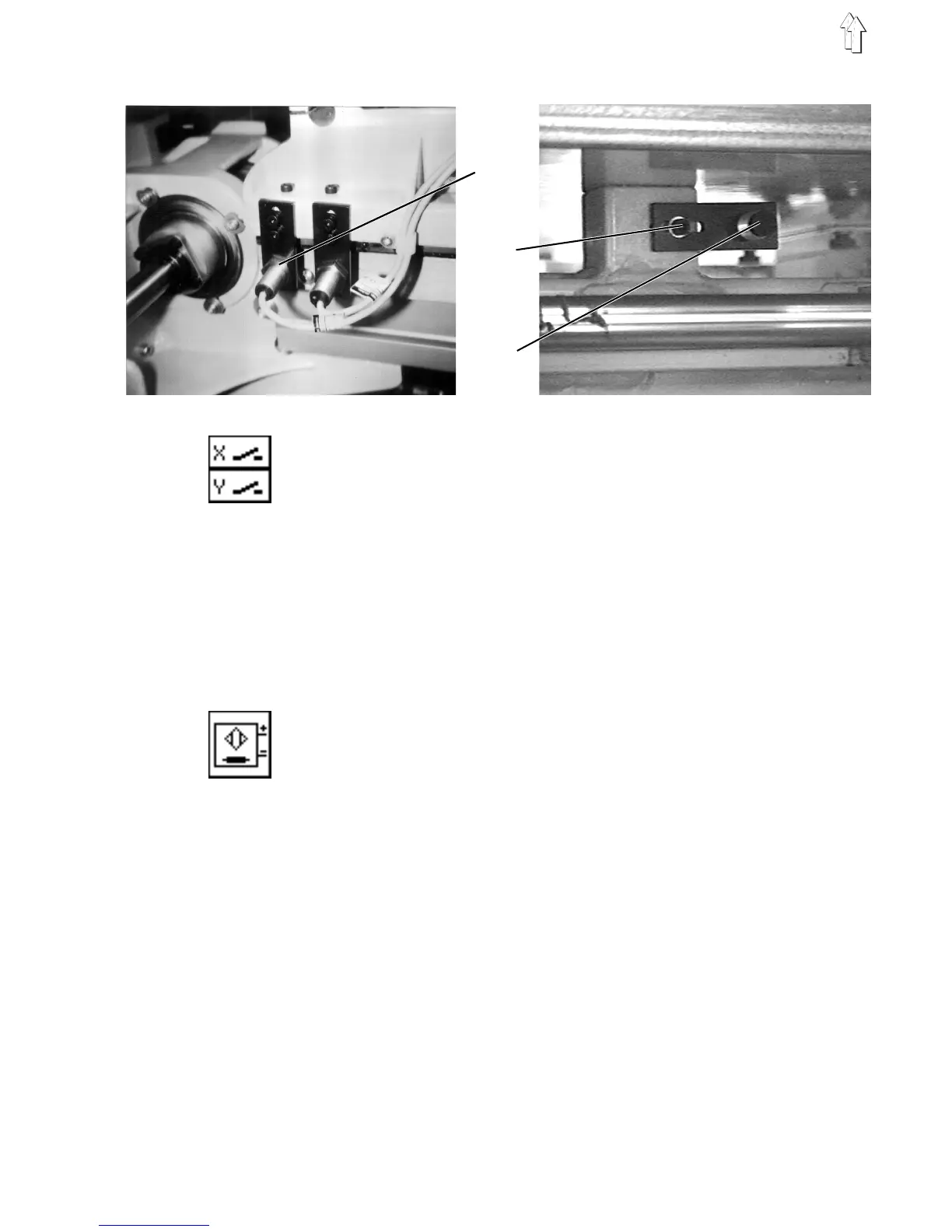

Correction
–
Loosen clamping screw 2.
–
Set limit switch 3.
1
2
3
95
