Maintenance Manual (960-942) 4-38
Replacement Procedures

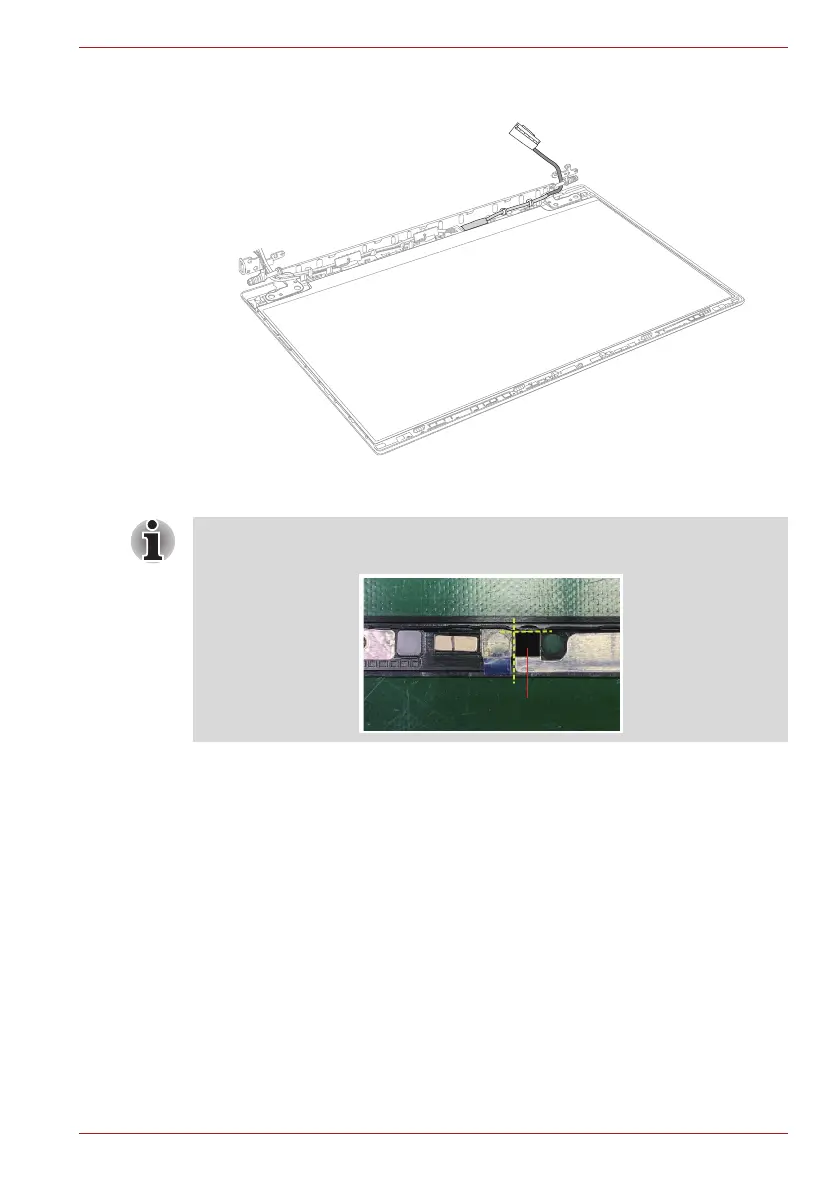

Figure 4-43 Installing the LCD unit (2)
5. Remove the separators of the camera panel and bottom side on the
LCD mask.
6. Align and install the LCD mask to the bottom side of the LCD cover first.
(For IR camera model) When replacing the LCD mask with a new one,
Stick one piece of SQUARE CUSHION on the LCD mask in place.
