dynabook PORTEGE X40-J Series - Figure 4-11 Removing the Smart Card Slot (1); Figure 4-12 Removing the Smart Card Slot (2)

Maintenance Manual (960-942) 4-15
Replacement Procedures

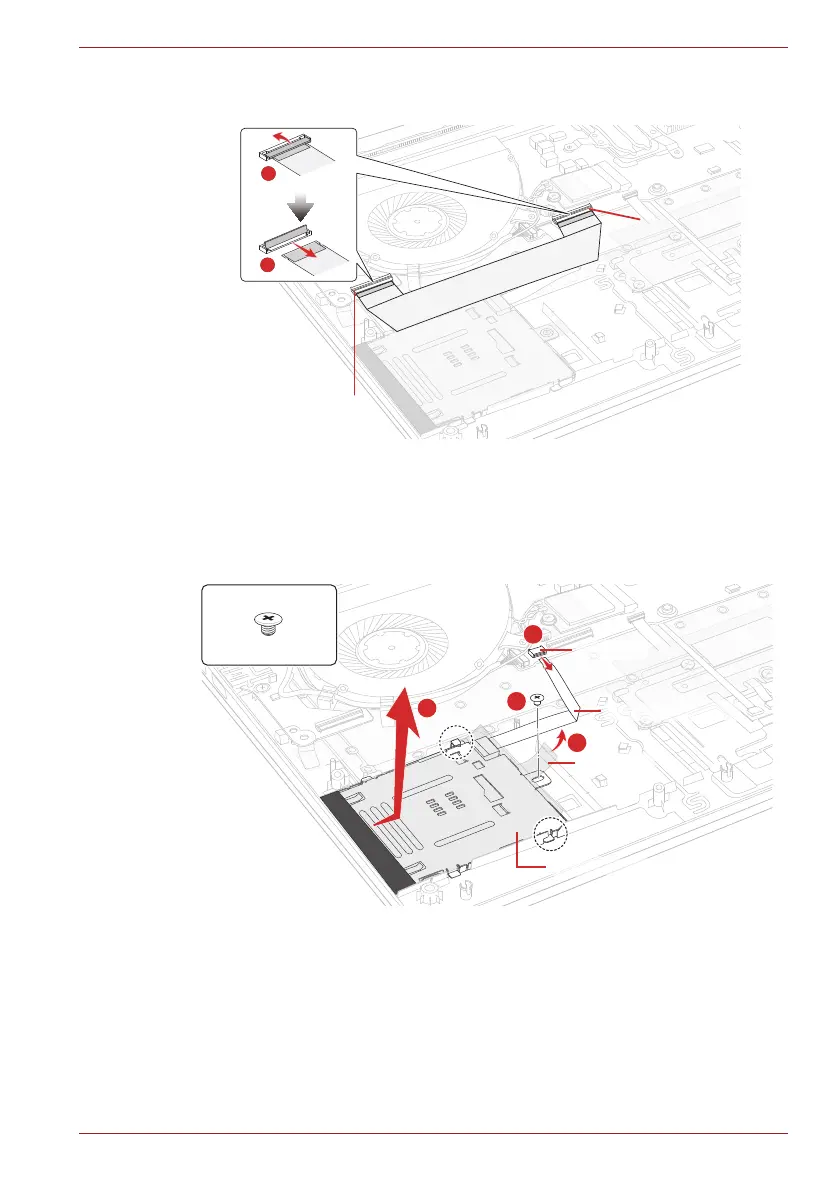

Figure 4-11 Removing the Smart Card slot (1)
2. Peel off the INSU SC and disconnect the Smart Card FFC from the
connector CN2170 on the system board.
3. Remove the following screw, and then slide and lift the Smart Card slot
unit shown in the following figure to remove the Smart Card slot.
Figure 4-12 Removing the Smart Card slot (2)
4. Disconnect the Smart Card FFC from the connector on the Smart Card
slot.
1
2
CN9801
CN9602
4
3
2
C
FF
C
mart Card
mart Card s
C
CN2170
Smart Card FFC
Smart Card slot
S2x2BT
1
SC
INSU SC
