Maintenance Manual (960-942) B-3
Board Layout

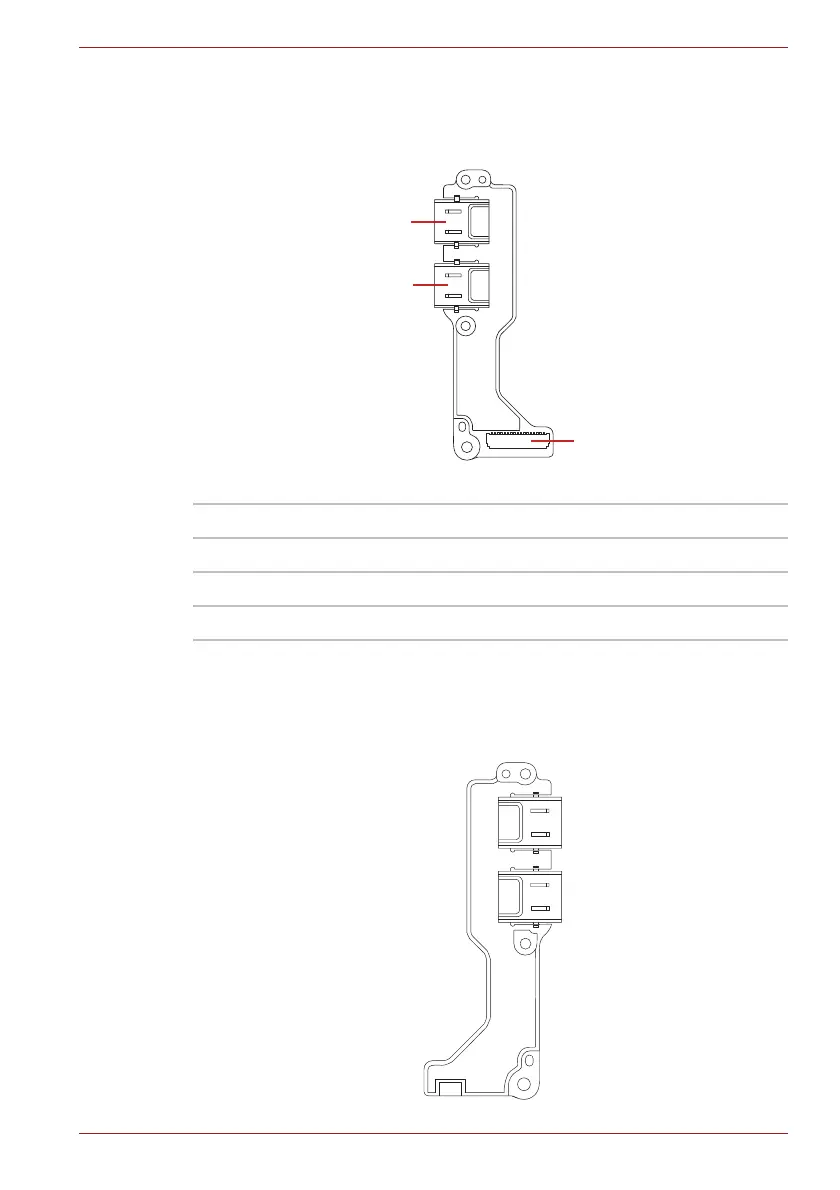

B.3 USB board (FSAPCN*) Front View
Figure B-3 USB board (FSAPCN*) layout (front)
Table B-3 USB board (FSAPCN*) connectors (front)
B.4 USB board (FSAPCN*) Back View
Figure B-4 USB board (FSAPCN*) layout (back)
Number Name
CN4860 USB Type-A I/F connector
CN4850 USB Type-A I/F connector
CN9801 System Board (FSAPSY*) interface connector
CN9801
CN4860
CN4850
