Board Layout
B.2 System Board (FSAPSY*) Back View

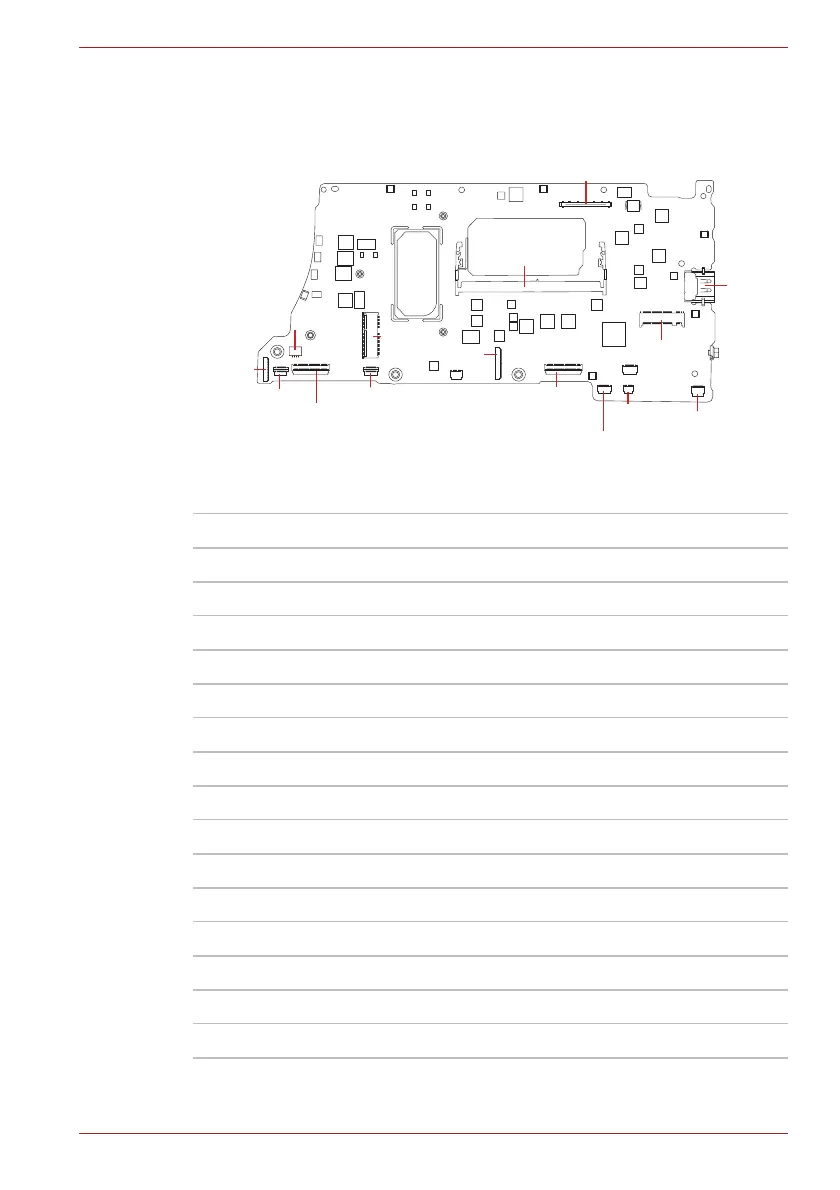

Figure B-2 System Board (FSAPSY*) layout (back)
Table B-2 System Board (FSAPSY*) connectors (back)
Number Name
CN1900 M.2 SSD I/F connector (PCIe)
CN5590 HDMI I/F connector
CN8021 Battery I/F connector
CN2170 SmartCard I/F connector
CN3240 Keyboard backlight I/F connector
CN3260 Keyboard I/F connector
CN9510 Click pad (touch pad) I/F connector
CN9550 Fingerprint sensor I/F connector
CN6290 Speaker I/F connector
CN9602 FSAPCN* board I/F connector
CN9540 Web camera I/F connector
CN5390 LCD I/F connector
CN3380 FAN I/F connector
CN2630 M.2 W-LAN I/F connector
CN1410 DDR4 Memory Slot
CN1410
CN1900
CN9540
CN5390
CN5590
CN3380
CN8021
CN6290
CN9550
CN9602
CN3240
CN3260
CN9510
CN2170
CN2630

dynabook PORTEGE X40-J Series Specifications

General

Graphics	Intel Iris Xe Graphics
Wireless	Wi-Fi 6 (802.11ax), Bluetooth 5.1
Processor	Up to 11th Gen Intel® Core™ i7 Processors
Display	14.0" FHD (1920 x 1080) Anti-glare
RAM	Up to 32GB DDR4
Storage	Up to 1TB PCIe SSD
Operating System	Windows 10 Pro
Weight	Approx. 1.05 kg
Security	Fingerprint Reader, TPM 2.0
Ports	2 x Thunderbolt 4, 1 x USB 3.2, HDMI, microSD card slot
