Maintenance Manual (960-942) F-2
Wiring diagrams
F.2 LAN Loopback Connector

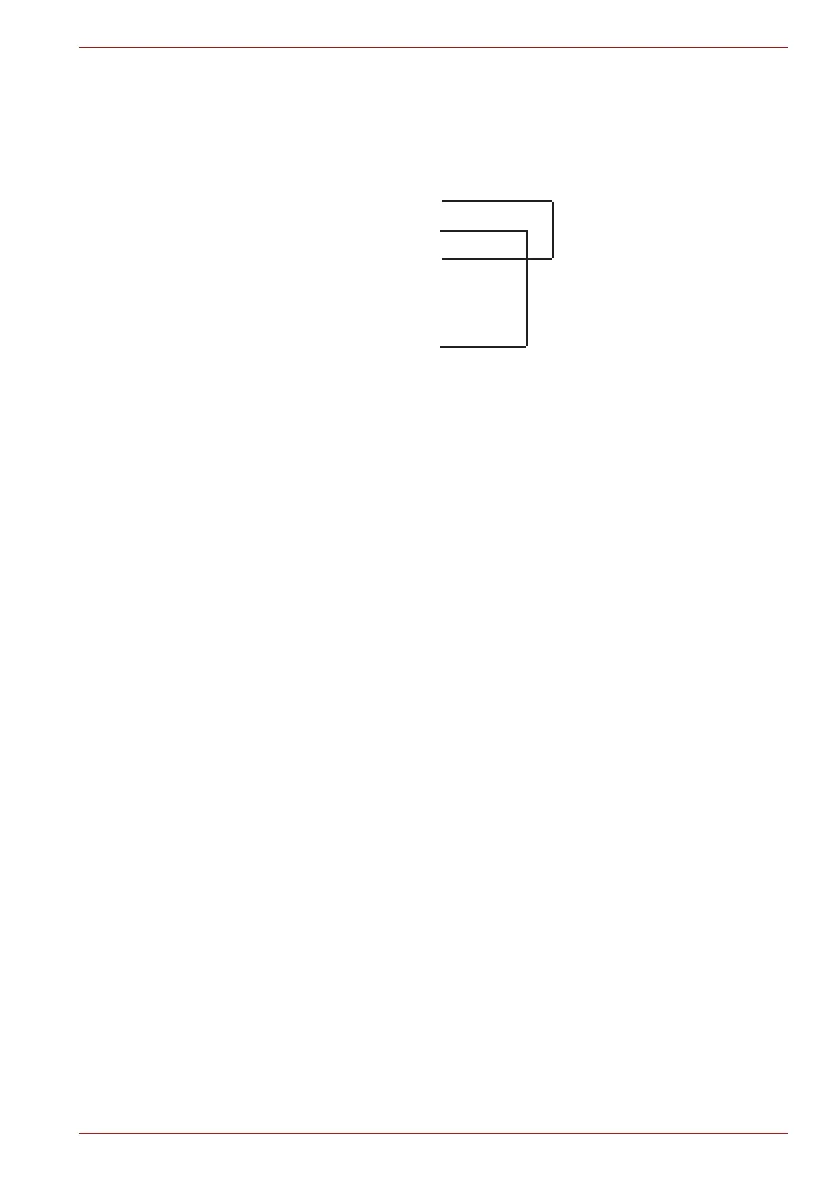

Figure F-2 LAN Loopback Connector
(1) TX+
(2) TX-
(3) RX+
(4) (Not used)
(5) (Not used)
(6) RX-
(7) (Not used)
(8) (Not used)
