Dynapac CA134 - Drum - Oil Change; Steering Joint - Check

Maintenance - 2000h
ICA134-3EN2.pdf 2012-04-13
Drum - Oil change

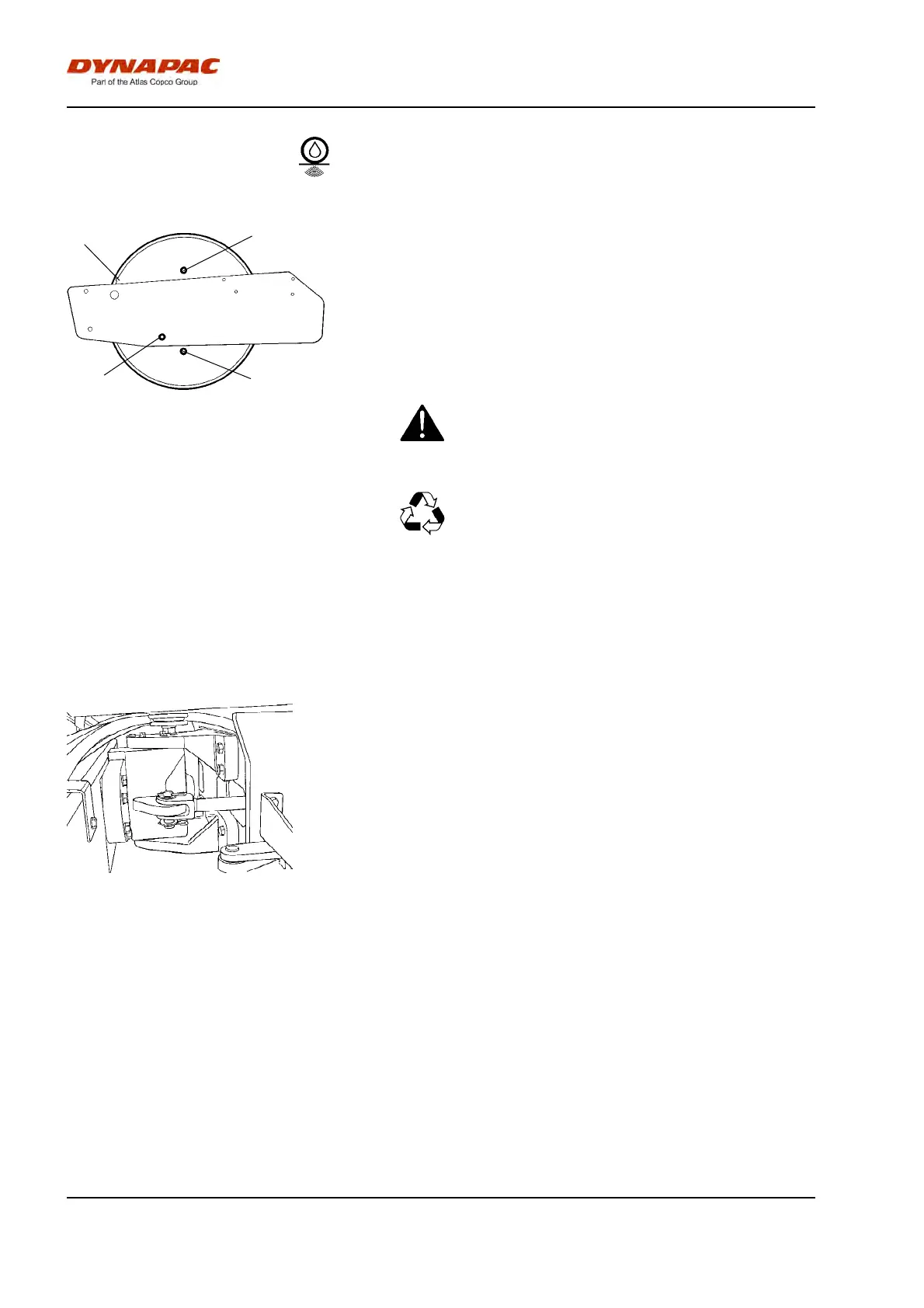

Figure. Drum, left side
1. Groove
2. Filler plug
3. Drain plug/Magnetic plug
4. Level plug
1
2
3
4
Position the roller on a flat surface with the groove (1)
on the inside of the drum aligned with the top of the
drum frame.
Place a receptacle that holds 10 liters (2.8 gal) under
the drain plug (3).
Clean and unscrew the filler plug (2) and drain plug
(3), and allow all the oil to run out.
Take great care when draining warm fluids and
oils. Wear protective gloves and goggles.
Take great care when draining warm fluids and
oils. Wear protective gloves and goggles.
Save the oil and hand in to an
environment-friendly waste disposal station.
Save the oil and hand in to an
environment-friendly waste disposal station.
Clean and refit the drain plug (3) and fill with oil as per
"Drum - Checking the oil level".
Clean and refit the filler plug (2).
Steering joint - Check
Fig. Steering joint
Inspect the steering joint to detect any damage or
cracks.
Check and tighten any loose bolts.
Check also for any stiffness and play.
96
