Operation - Starting
ICA134-3EN2.pdf2012-04-13
Interlock
The roller is equipped with Interlock.
If you stand up from the operator's seat when the
forward/reverse lever is in the drive position, the
machine stops and the diesel engine is switched off
after 3 seconds. Brace yourself for a sudden stop.
Interlock is not activated if the forward/reverse lever is
in neutral.
If the emergency stop is activated the diesel engine
will stop.
Starting
Starting the engine
1
2
3
6
20
29

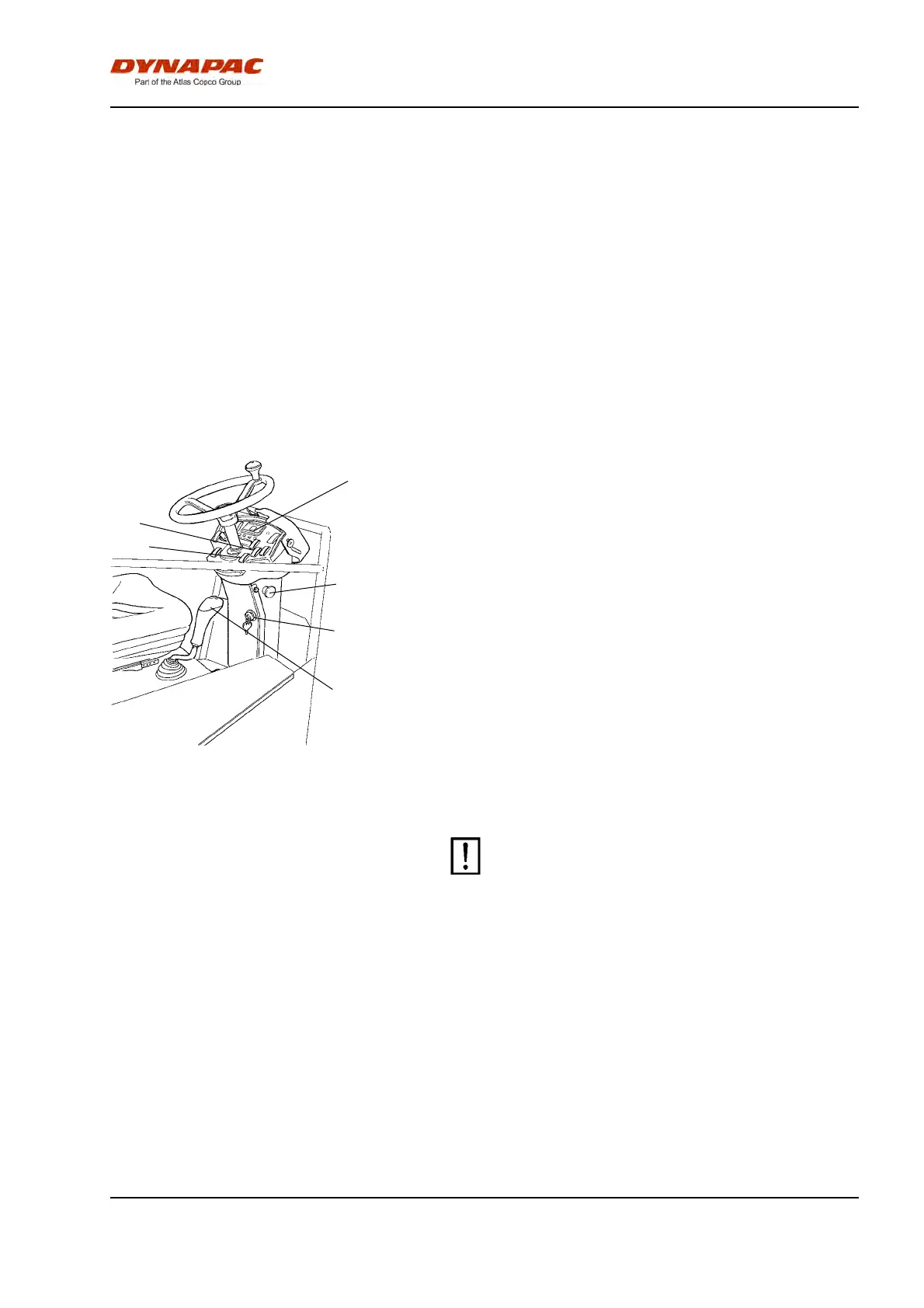

Fig. Control panel
1. Starter switch
2. Engine speed control
3. Emergency stop
6. Forward/Reverse lever
20. Vibration switch
29. Glow lamp
Make sure that the emergency stop (3) is pulled out.
Set the forward/reverse lever (6) in neutral. The
engine can only be started when the lever is in neutral.
Turn the vibration switch (20) to the Off position
(position O).
In the event of high external temperature, set the
speed control (2) in idling position: Low.
Preheating: Turn the key to position II. When the glow
lamp (29) goes off, after about 10 seconds, turn the
starter switch (1) to position 3c. Release the starter as
soon as the engine has started.
Do not run the starter motor for too long. If the
engine does not start, wait a minute or so before
trying again.
Do not run the starter motor for too long. If the
engine does not start, wait a minute or so before
trying again.
Idle the engine for a few minutes until it is warm,
longer if the ambient temperature is below +10 °C (50
°F)
At temperatures below 0°C (32°F) the diesel engine
and hydraulic system should be warmed up for at least
15 minutes.
