Towing short distances where the engine is
inoperative
1
1

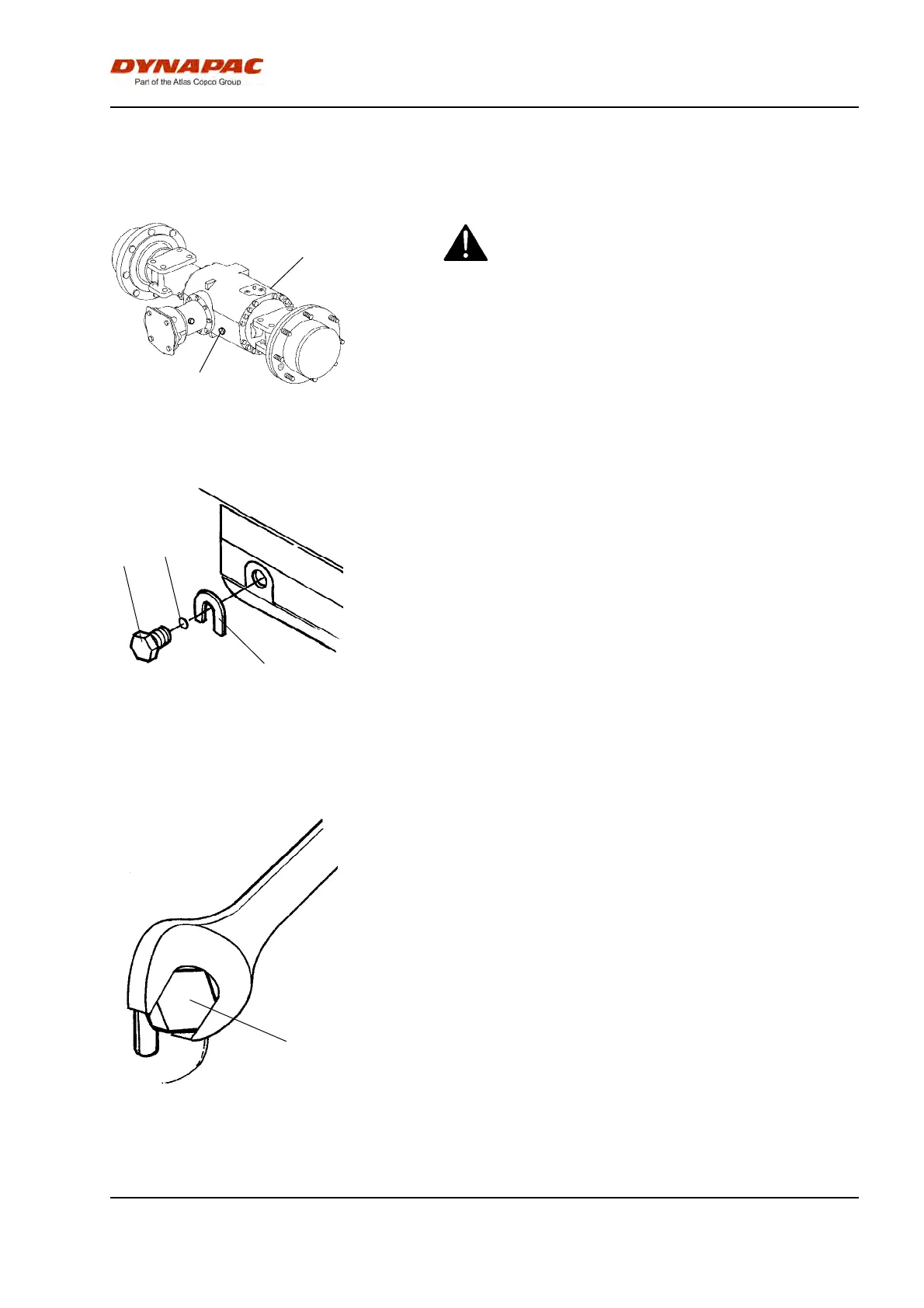

Fig. Rear axle
1. Brake release screw (2).
Chock the drum and tires to prevent the roller from
moving when the brakes are mechanically
disengaged.
Chock the drum and tires to prevent the roller from
moving when the brakes are mechanically
disengaged.
Rear axle brake
The two brake release screws (1) are located on the
front and back of the rear axle.
Brake disengagement
Fig. Brake disengagement
1. Brake release screw
2. O-ring
3. Stop washer
1
2
3
Unscrew the brake release screws (1) and remove the
stop washers (3). The screws must not be completely
removed, only unscrewed enough to remove the
washers.
Fig. Brake disengagement
1. Brake release screw
1
Now tighten the brake release screws (1) alternately
until they are fully screwed in.
The brake is now disengaged.
