Dynapac CA134 - Maintenance - 50 H; Scrapers - Check, Adjustment

Maintenance - 50h
ICA134-3EN2.pdf2012-04-13
Maintenance - 50h
Park the roller on a level surface.
When checking and making adjustments, the
engine should be switched off and the
emergency/parking brake should be applied, if
not otherwise specified.
Park the roller on a level surface.
When checking and making adjustments, the
engine should be switched off and the
emergency/parking brake should be applied, if
not otherwise specified.
Scrapers - Check, adjustment

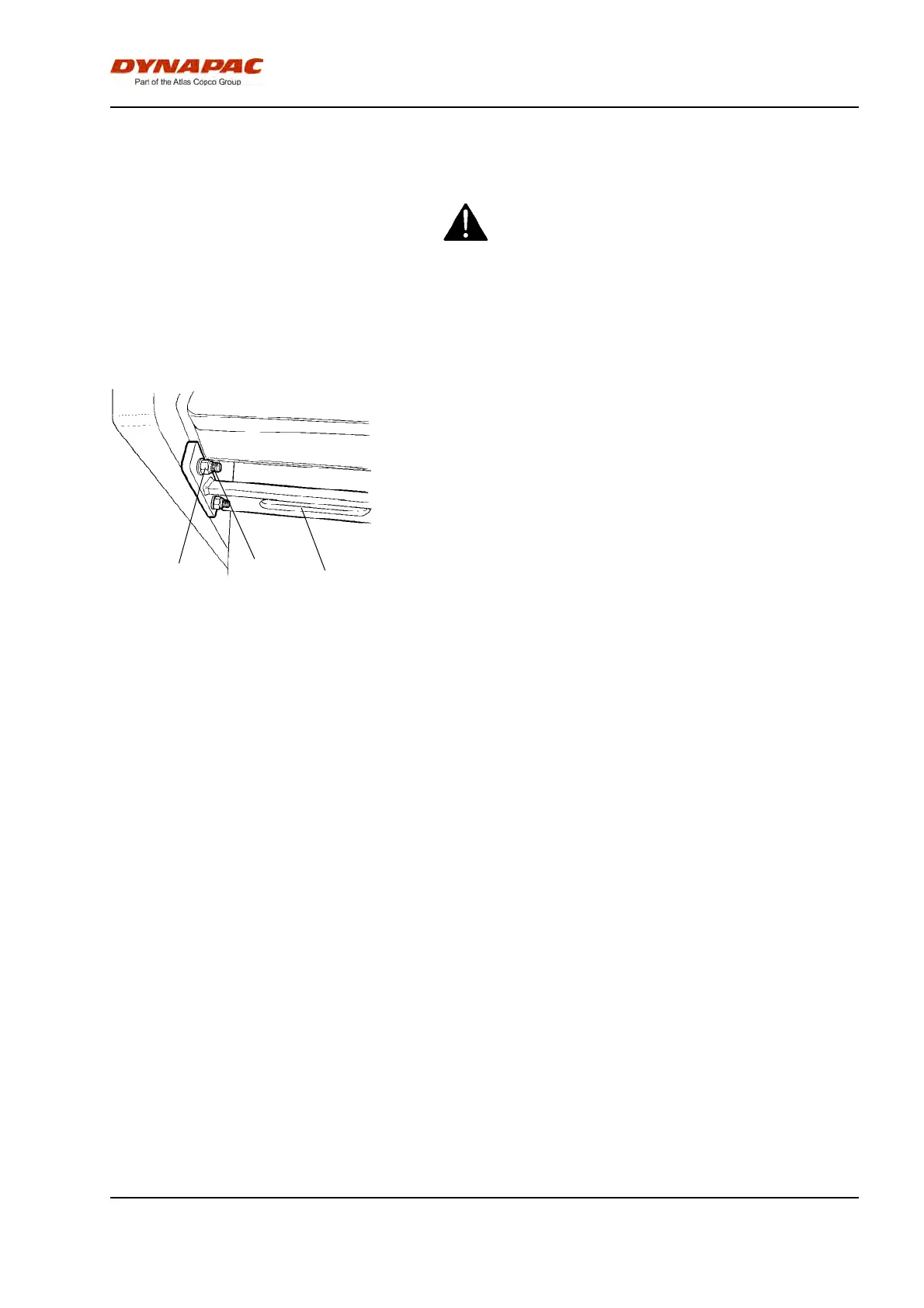

Fig. Scrapers
1. Scraper
2. Screws
3. Nuts
1
2
3
If necessary, adjust the distance to the drum as
follows: the scraper is mounted on the underside of
the rear cross beam.
Loosen the four screws (2) on the outside of the drum
frame, and the nuts on the inside of the (3) drum frame.
Adjust the scraper (1) to:
For the D model 20 mm from the roller
For the PD model to 25 mm between the scraper teeth
and the roller.
Tighten the screw (2) and nuts (3).
75
