Maintenance - 500h
ICA134-3EN2.pdf2012-04-13

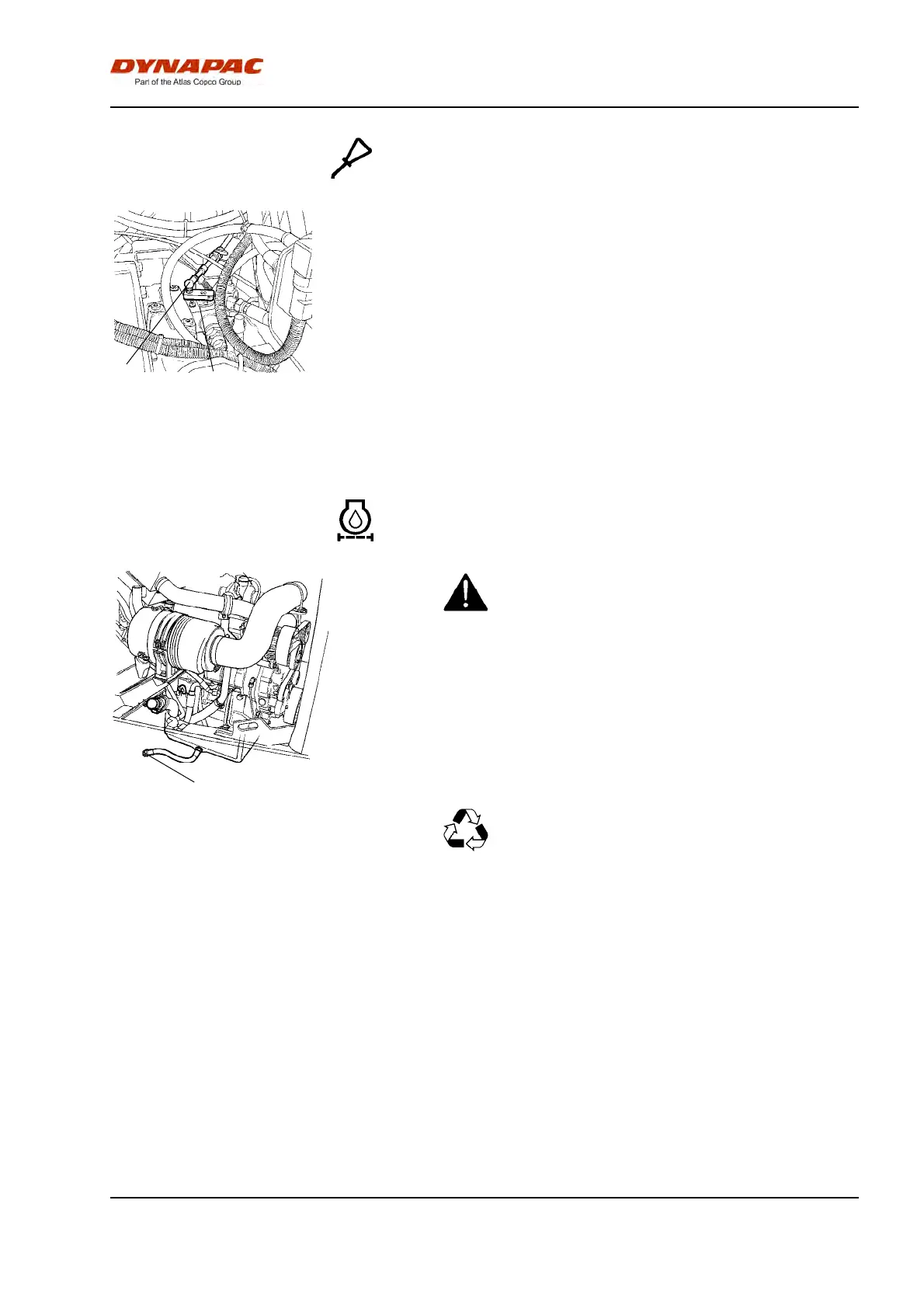

Fig. Engine compartment
1. Forward/Reverse-control cable
2. Propulsion pump
1
2
If the forward/reverse lever still is stiff after the above
adjustments, lubricate the other end of the control
cable with a few drops of oil. The cable is located on
the top of the propulsion pump.
Diesel engine - Oil- and Filter change
Fig. Left side of engine
1. Drain plug
1
Take great care when draining warm fluid and oil.
Wear protective gloves and goggles.
Take great care when draining warm fluid and oil.
Wear protective gloves and goggles.
The oil plug (1) is most easily accessible from the
underside of the engine, and is fitted with a hose on
the tractor frame. Drain the oil when the engine is
warm. Place a receptacle that holds 15 liters (4 gal)
under the drain plug.
Change the engine oil filter at the same time. Refer to
the engine manual.
Hand in the drained oil and filter to an
environment-friendly waste disposal station.
Hand in the drained oil and filter to an
environment-friendly waste disposal station.
