Maintenance - 1000h
ICA134-3EN2.pdf 2012-04-13

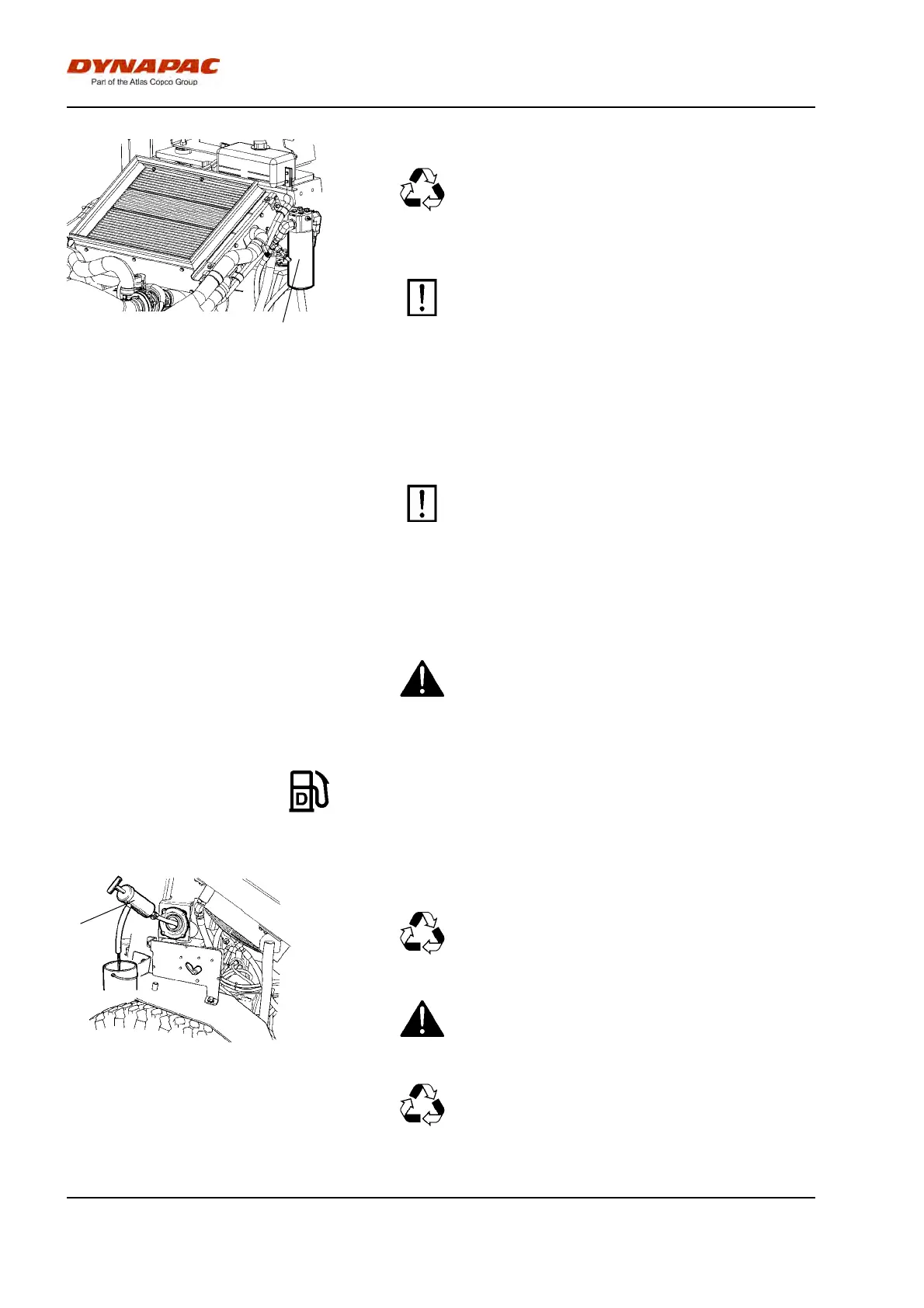

Fig. Engine compartment
1. Hydraulic fluid filter (1pc).
1
Carefully clean round the filter.
Remove the oil filter (1) and hand in to an
environment-friendly waste disposal station. This
is a disposable filter and cannot be cleaned.
Remove the oil filter (1) and hand in to an
environment-friendly waste disposal station. This
is a disposable filter and cannot be cleaned.
Make sure that the old sealing ring is not left on
the filter holder. Otherwise, this could cause
leakage between the new and old seal.
Make sure that the old sealing ring is not left on
the filter holder. Otherwise, this could cause
leakage between the new and old seal.
Thoroughly clean the sealing surfaces on the filter
holder.
Apply a thin coat of fresh hydraulic fluid to the seals on
the new filter. crew tight the filter by hand.
First tighten the filter until its seal is in contact
with the filter attachment. Then turn an additional
half revolution. Do not tighten the filter too hard
as this could damage the gasket.
First tighten the filter until its seal is in contact
with the filter attachment. Then turn an additional
half revolution. Do not tighten the filter too hard
as this could damage the gasket.
Start the engine and check that there is no leakage of
hydraulic fluid from the filter. Check the fluid level in
the sight glass and top up if necessary.
Ensue that there is good ventilation (air extraction)
if the engine is run indoors. Risk of carbon
monoxide poisoning.
Ensue that there is good ventilation (air extraction)
if the engine is run indoors. Risk of carbon
monoxide poisoning.
Fuel tank
- Cleaning
It is easiest to clean the tank when it is almost empty.
Fig. Fuel tank
1. Oil drain pump
1
Pump out any bottom sediment using a suitable pump,
such as an oil drain pump.
Collect the fuel and sediment in a container and
deliver to environmentally correct handling.
Collect the fuel and sediment in a container and
deliver to environmentally correct handling.
Keep in mind fire risk when handling fuel.Keep in mind fire risk when handling fuel.
The fuel tank is made of plastic (polyethylene)
and is recyclable.
The fuel tank is made of plastic (polyethylene)
and is recyclable.
