Dynapac CA134 - Towing the Roller; Roller Prepared for Transport

Miscellaneous
ICA134-3EN2.pdf2012-04-13
Towing the roller
When towing/recovering, the roller must be braked
by the towing vehicle. A towing bar must be used
as the roller has no brakes.
When towing/recovering, the roller must be braked
by the towing vehicle. A towing bar must be used
as the roller has no brakes.

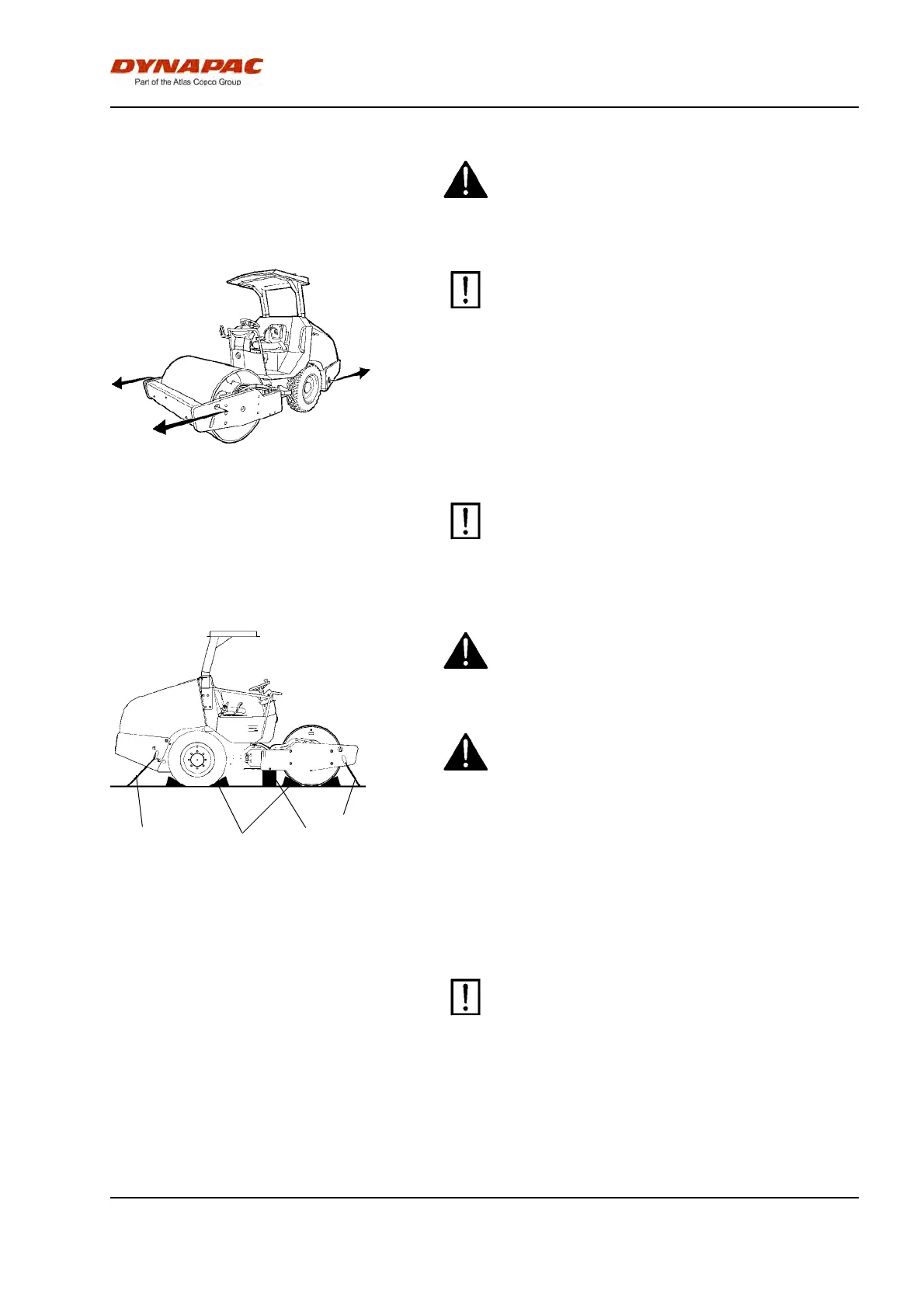

Fig. Towing
The roller must be towed slowly, max. 3 kp/h (2
mph) and only towed short distances, max. 300 m
(330 yards).
The roller must be towed slowly, max. 3 kp/h (2
mph) and only towed short distances, max. 300 m
(330 yards).
When towing/retrieving a machine, the towing device
must be connected to both lifting holes. The pulling
force must act longitudinally on the machine as
illustrated. Maximum gross pulling force 75 kN (16860
lbf).
Restore the items for towing according to
alternative 1 or 2 on the preceding pages.
Restore the items for towing according to
alternative 1 or 2 on the preceding pages.
Roller prepared for transport
Fig. Transport
1. Chock
2. Block up
3. Lashing wire
2
1
3
3
Lock the articulation before lifting and
transporting. Follow the instructions under the
relevant heading.
Lock the articulation before lifting and
transporting. Follow the instructions under the
relevant heading.
Do not use fastening devices over the articulation.Do not use fastening devices over the articulation.
Chock the drums (1) and secure the chocks to the
transport vehicle.
Block up under the drum frame (2), to avoid overload
on the rubber suspension of the drum when lashing.
Clamp down the roller with lashing strap at all four
corners; decals (3) indicate the fixing points.
Remember to return the articulation to its
unlocked position before starting the roller.
Remember to return the articulation to its
unlocked position before starting the roller.
57
