Dynapac CA134 - Unlocking the Articulation; Towing; Alternative 1; Short Distance Towing with the Engine Running

Miscellaneous
ICA134-3EN2.pdf 2012-04-13
Unlocking the articulation
1
3
4
2

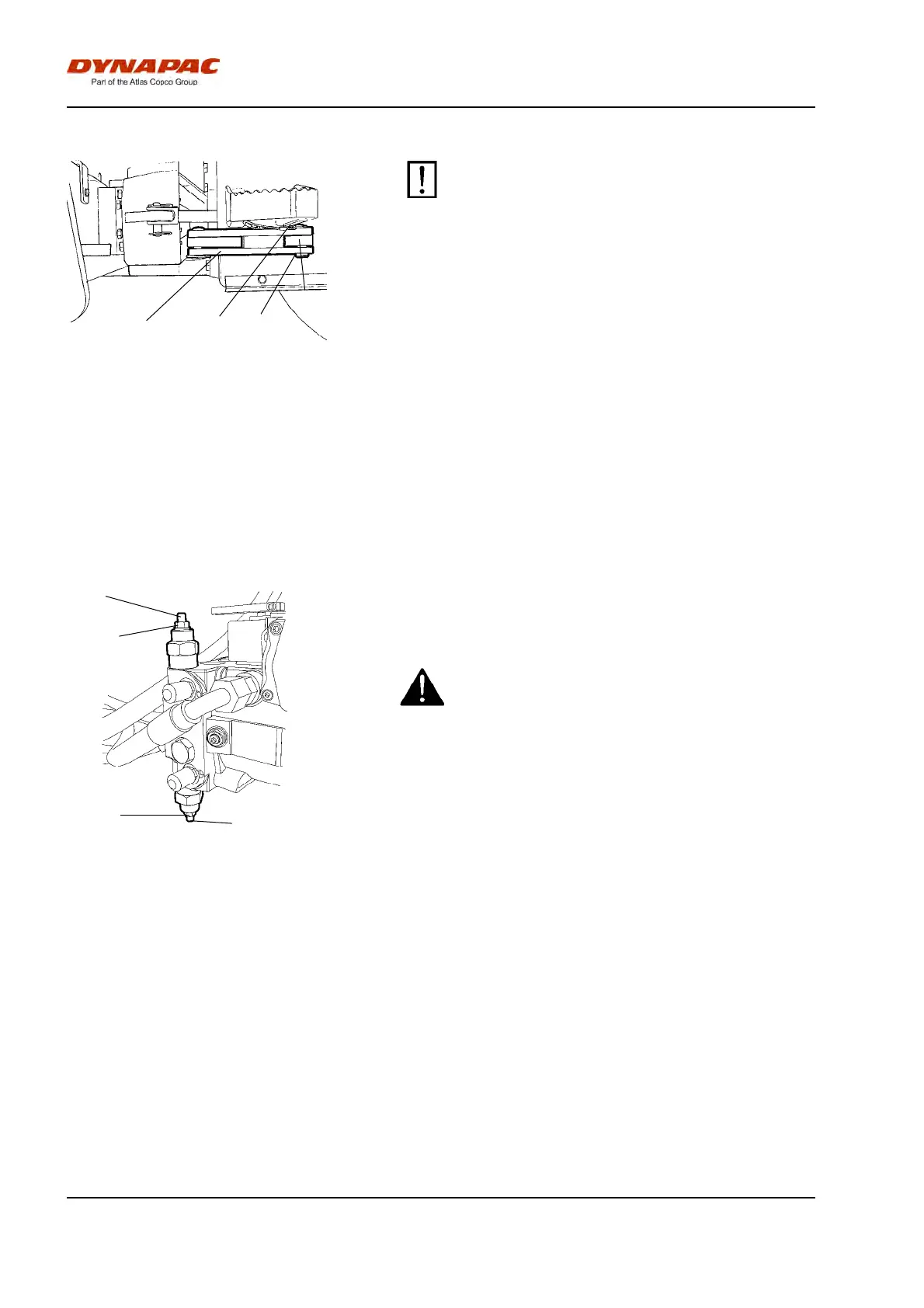

Fig. Articulation in the open position
1. Locking arm
2. Locking pin
3. Locking stud
4. Locking lug
Remember to unlock the articulation before
operating.
Remember to unlock the articulation before
operating.
Fold the locking arm (3) back and secure it in the
locking lug (4) with the stud (3). Insert the locking pin
(2) fitted with a wire, to secure the stud (3). The
locking lug (4) is located on the tractor frame.
Towing
The roller can be moved up to 300 meters (1,000 ft)
using the instructions below.
2
2
1
1
Fig. Propulsion pump
1. Adjusting bolts (2)
2. Lock nuts (2)
Alternative 1
Short distance towing with the engine running
Depress the emergency/parking brake knob and
temporarily shut off the engine. Chock the drum
and tires to prevent the roller from moving
Depress the emergency/parking brake knob and
temporarily shut off the engine. Chock the drum
and tires to prevent the roller from moving
Unscrew both lock nuts (2) and carefully screw in the
adjusting bolts (1) until they stop. Now turn the
adjusting bolts (1) an additional half turn to open the
valves. The valves are located on the propulsion pump.
Start the engine and allow it to idle.
The roller can now be towed and can also be steered
if the steering system is otherwise functioning.
