Dynapac CA134 - Maintenance - 250 H; Rear Axle Differential - Check Oil Level; Rear Axle Pinion Housing - Checking the Oil Level

Maintenance - 250h
ICA134-3EN2.pdf2012-04-13
Maintenance - 250h
Park the roller on a level surface.
When checking and making adjustments, the
engine should be switched off and the
emergency/parking brake should be applied, if
not otherwise specified.
Park the roller on a level surface.
When checking and making adjustments, the
engine should be switched off and the
emergency/parking brake should be applied, if
not otherwise specified.
Rear axle differential - Check oil level

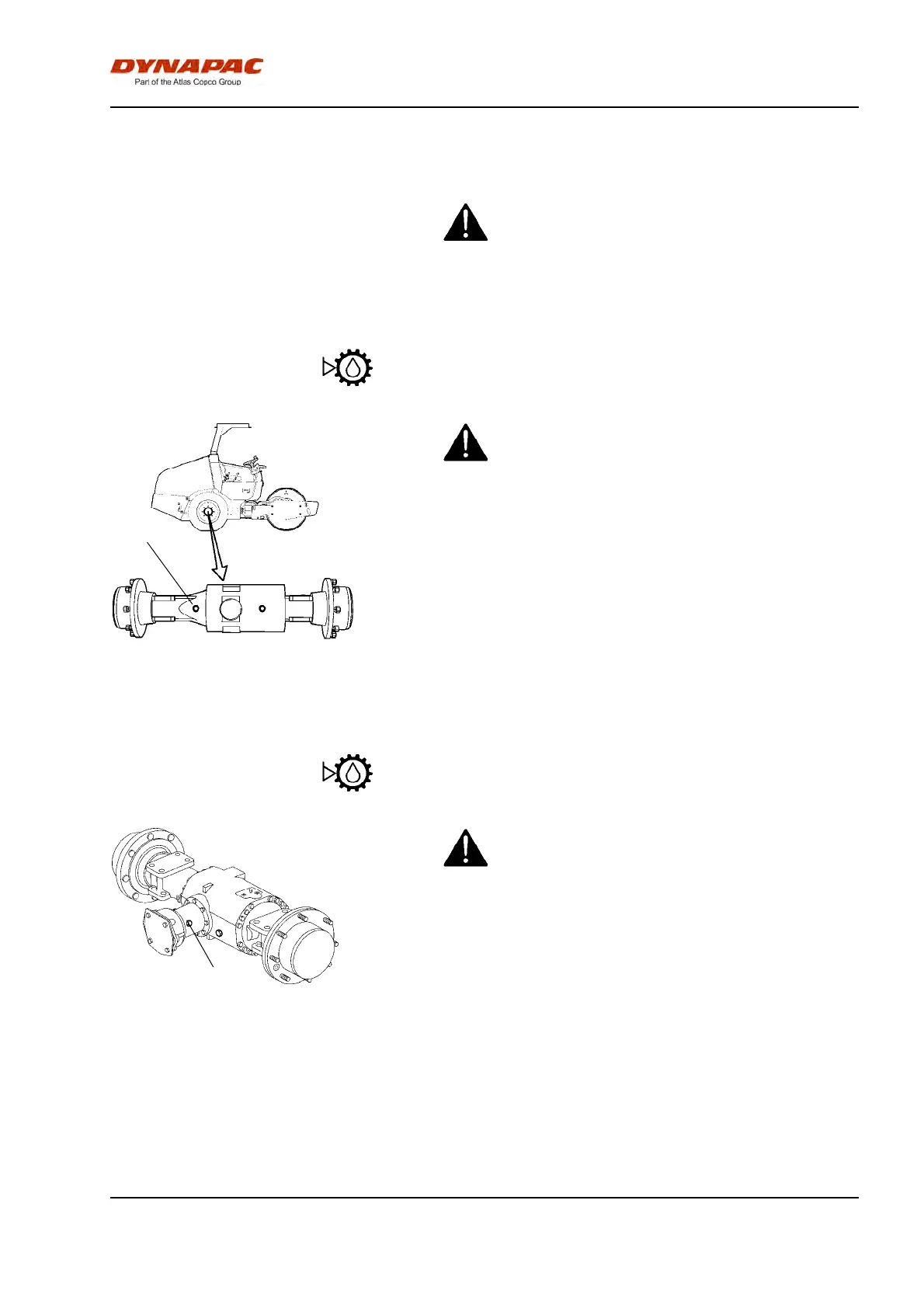

Fig. Level check - differential housing
1. Level/Filler plug
1
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Wipe clean and remove the level plug (1) and check
that the oil level reaches the lower edge of the plug
hole. Top off with oil to the right level if the level is low.
Use transmission oil according to the lubricant
specification.
Clean and refit the plug.
Rear axle pinion housing - Checking the oil
level
Fig. Level check - Pinion housing
1. Level/Filler plug
1
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Wipe clean and remove the level plug (1) and check
that the oil level reaches the lower edge of the plug
hole. Top off with oil to the right level if the level is low.
Use transmission oil according to the lubricant
specification.
Clean and refit the plug.
