Dynapac CA134 User Manual

Technical specifications - Dimensions
ICA134-3EN2.pdf2012-04-13
Technical specifications - Dimensions

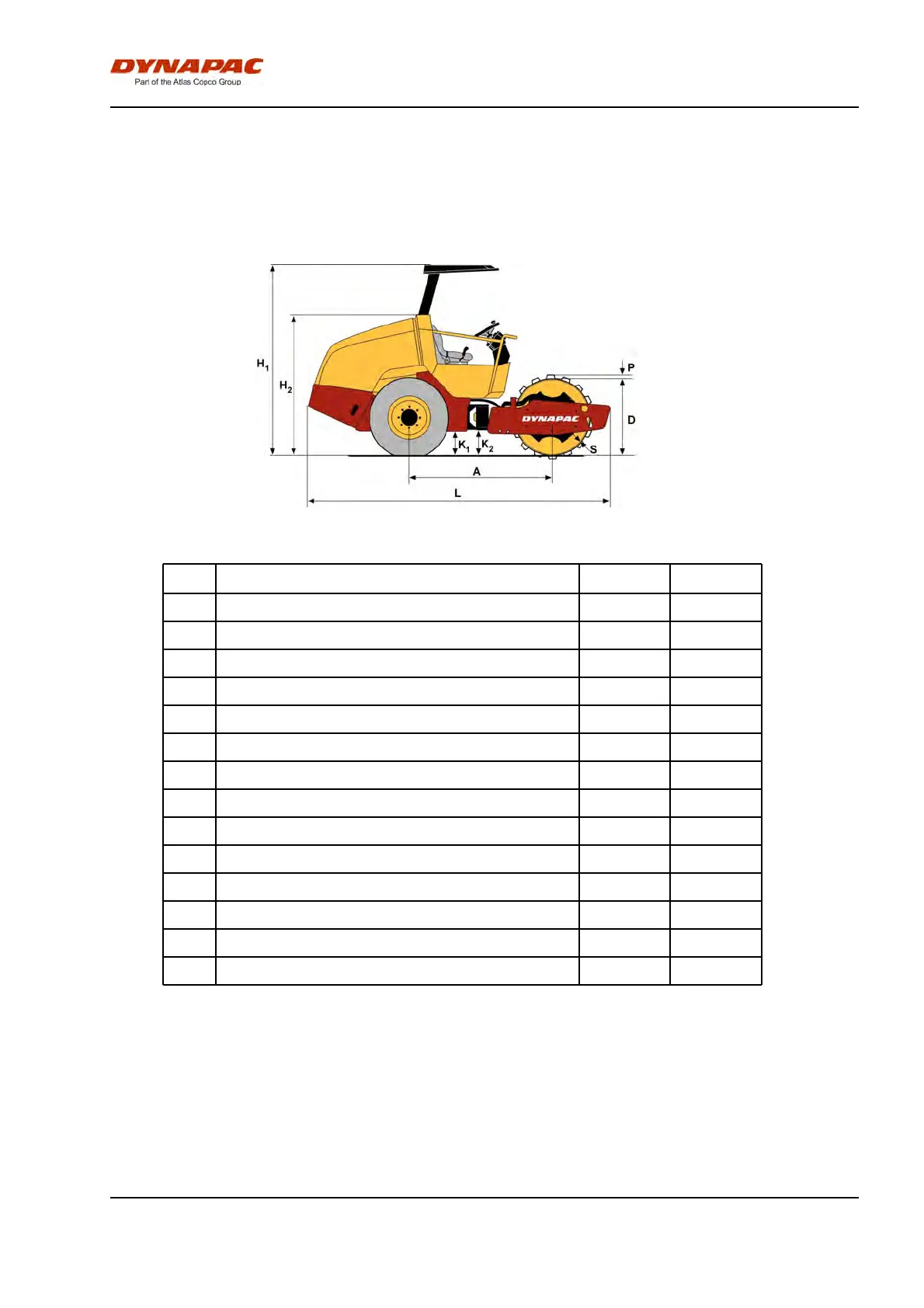

Dimensions, side view
Dimensions mm inDimensions mm in
A Wheelbase, drum and wheel 1860 73A Wheelbase, drum and wheel 1860 73
L Length, standard equipped roller (D) 3950 155L Length, standard equipped roller (D) 3950 155
L Length, standard equipped roller (PD) 3950 155L Length, standard equipped roller (PD) 3950 155
H
1
Height with ROPS (D) 2530 99H
1
Height with ROPS (D) 2530 99
H
1
Height with ROPS (PD) 2540 100H
1
Height with ROPS (PD) 2540 100
H
2
Height without ROPS (D) 1810 71H
2
Height without ROPS (D) 1810 71
H
2
Height without ROPS (PD) 1810 71H
2
Height without ROPS (PD) 1810 71
D Diameter, drum 1000 39D Diameter, drum 1000 39
S Thickness, drum sweep, nominal 22 0.9S Thickness, drum sweep, nominal 22 0.9
P Height, pads (PD) 76 3P Height, pads (PD) 76 3
K
1
Clearance, tractor frame (D) 260 10K
1
Clearance, tractor frame (D) 260 10
K
1
Clearance, tractor frame (PD) 260 10K
1
Clearance, tractor frame (PD) 260 10
K
2
Clearance, drum frame (D) 260 10K
2
Clearance, drum frame (D) 260 10
K
2
Clearance, drum frame (PD) 260 10K
2
Clearance, drum frame (PD) 260 10
