Maintenance - 500h
ICA134-3EN2.pdf 2012-04-13
Controls and moving joints - Lubrication

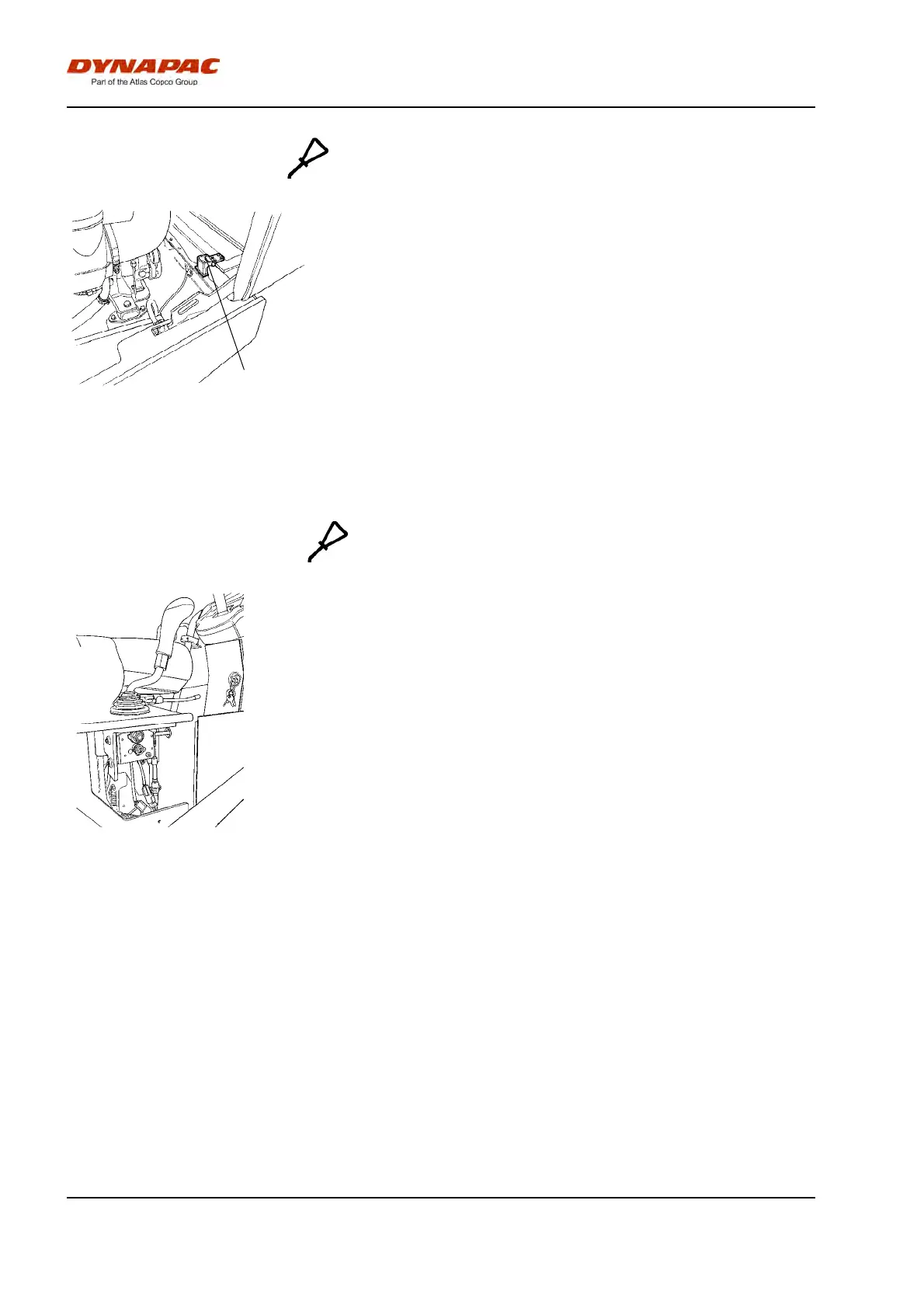

Fig. Engine hood
1. Hinge
1
Lubricate the engine hood hinges (1) with grease, the
other joints and controls are lubricated with oil. See
lubricant specification.
Forward/Reverse controls and joints - Check
and lubrication
Fig. Forward/reverse lever
The forward/reverse lever joints are best accessed via
the compartment for the manual on the right side of
the operator station. Check the friction on the
forward/reverse lever. The friction screws should be
applied sufficiently hard that the forward/reverse lever
remains in the set position during operation. The
lever's 0-position is determined by the screw that grips
in the groove on the axle between the lever.
If the lever begins to become stiff after prolonged
used, lubricate the lever at the control cable with a few
drops of oil at each point.
