Dynapac CA134 - Hydraulic Reservoir - Draining; Rear Axle Differential - Oil Change

Maintenance - 1000h
ICA134-3EN2.pdf2012-04-13
Hydraulic reservoir - Draining

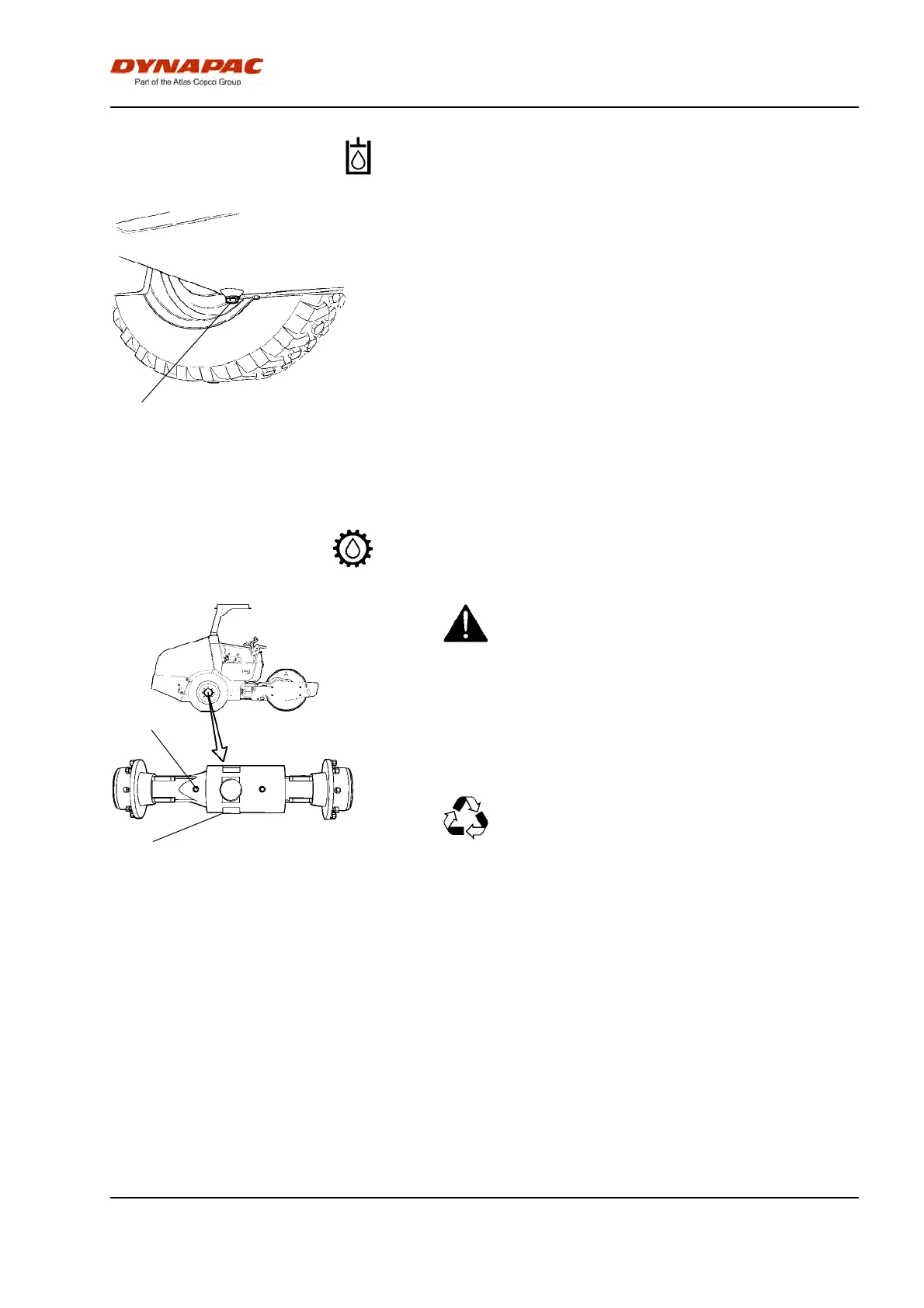

Fig. Hydraulic reservoir, bottom
1. Drain plug
1
Condensate in the hydraulic reservoir is drained via
the drain plug (1).
Drain the roller after it has been stationary for a long
time, e.g. after standing overnight. Drain as follows:
Place a container under the drain hole.
Remove the plug (1).
Drain off any condensate.
Refit the plug.
Rear axle differential - Oil change
Fig. Rear axle
1. Level/Filler plug
2. Drain plug
1
2
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Wipe clean and remove the filler/level plug (1) and the
drain plug (2). The drain plug (2) is on the back of the
shaft. Drain the oil into a container. The volume is
approx. 4.5 liters (4.2 qts).
Save the oil and hand in to an
environment-friendly waste disposal station.
Save the oil and hand in to an
environment-friendly waste disposal station.
Replace the drain plug and top up with fresh oil to the
correct level. Replace the level/filler plug. Use
transmission oil, see the lubricant specification.
91
