Dynapac CA134 - Rear Axle Pinion Housing - Oil Change; Rear Axle Planetary Gear - Oil Change

Maintenance - 1000h
ICA134-3EN2.pdf 2012-04-13
Rear axle pinion housing - Oil change

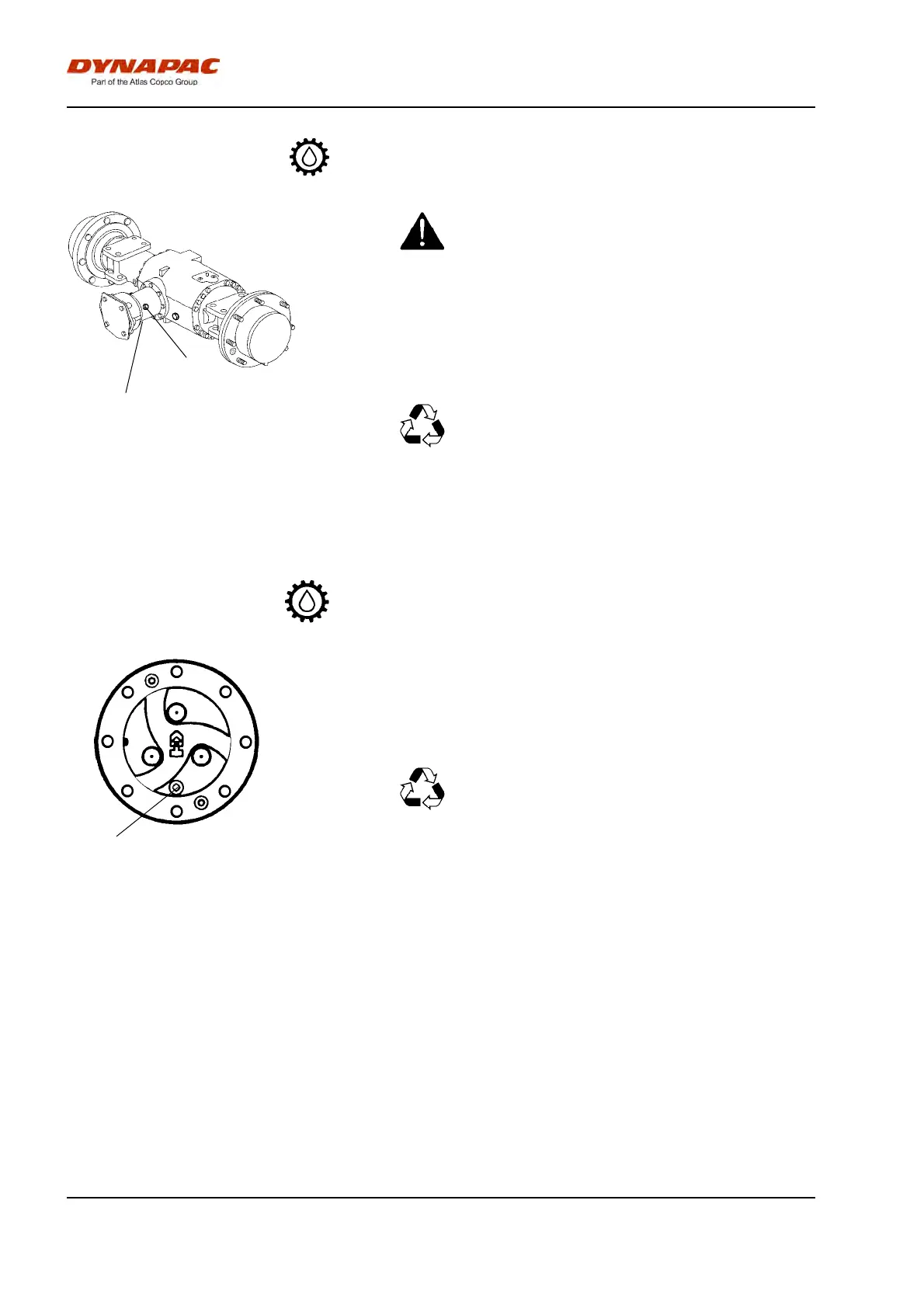

Fig. Rear axle
1. Level/Filler plug
2. Drain plug
1
2
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Wipe clean and remove the level/filler plug (1) and the
drain plug (2). The drain plug (2) is on the underside of
the pinion housing. Drain off the oil into a container.
The volume is approx. 0.3 liters (0.32 qts).
Save the oil and hand in to an
environment-friendly waste disposal station.
Save the oil and hand in to an
environment-friendly waste disposal station.
Replace the drain plug and top up with fresh oil to the
correct level. Replace the level/filler plug. Use
transmission oil, see the lubricant specification.
Rear axle planetary gear - Oil change
Fig. Planetary gear/drainage position
1. Plug
1
Position the roller with the plug (1) at its lowest
position.
Wipe clean, unscrew the plug (1) and drain the oil into
a suitable receptacle. The volume is approx. 0,9 liters
(0,95 qts)/side.
Save the oil and hand in to an
environment-friendly waste disposal station.
Save the oil and hand in to an
environment-friendly waste disposal station.
92
