Dynapac CA134 - Diesel Engine Check Oil Level; Fuel Tank - Filling

Maintenance, 10h
ICA134-3EN2.pdf 2012-04-13

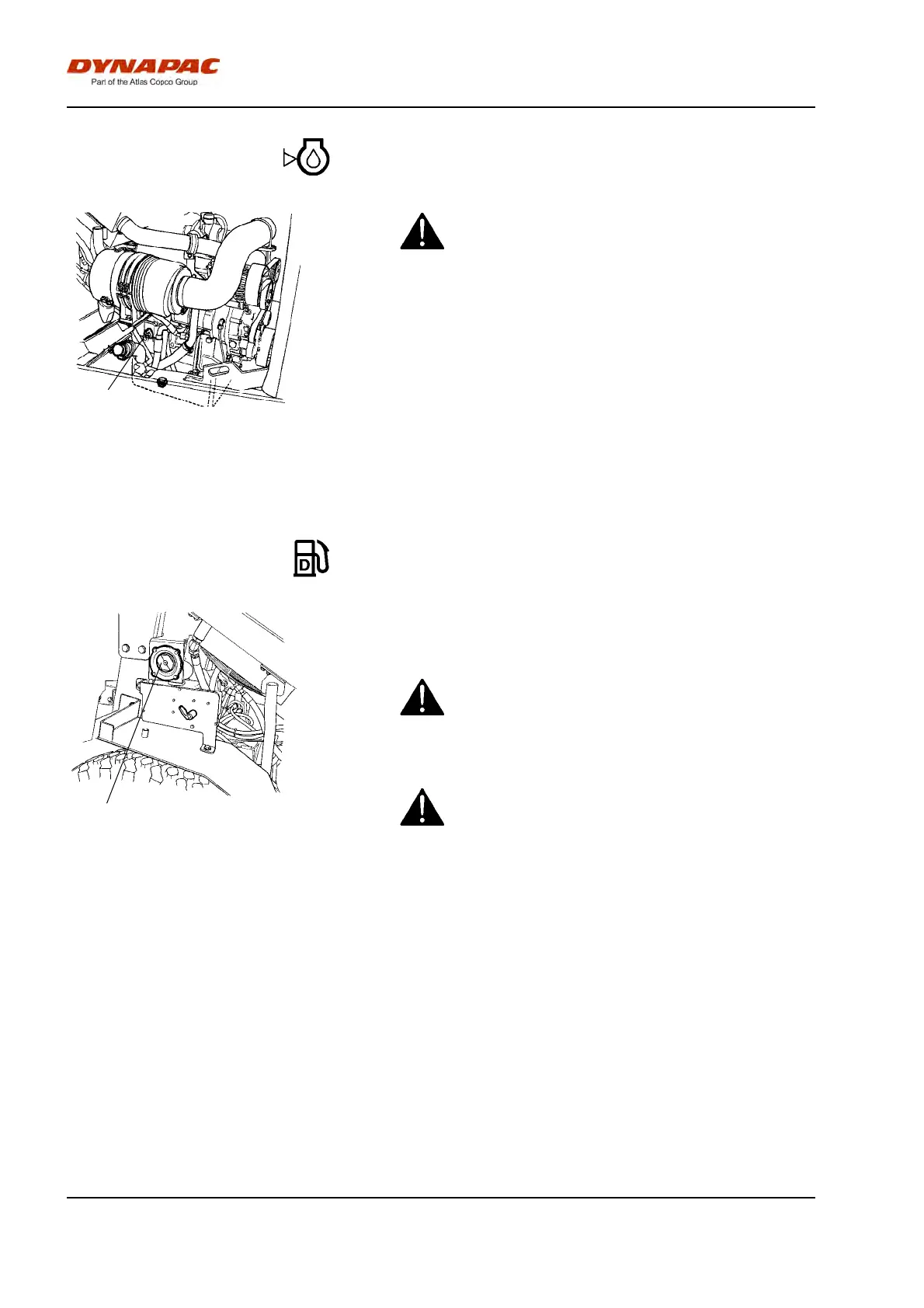

Diesel engine Check oil level
Fig. Engine compartment
1. Dipstick
1
Take care not to touch any hot parts of the engine
or the radiator when removing the dipstick. Risk
for burns.
Take care not to touch any hot parts of the engine
or the radiator when removing the dipstick. Risk
for burns.
The dipstick is located on the left side of the engine.
Pull up the dipstick (1) and check that the oil level is
between the upper and lower marks. For further
details, refer to the engine's instruction manual.
Fuel tank - Filling
Fig. Filling with fuel
1. Filler pipe
1
Refuel daily with diesel fuel up to the lower edge of the
filler pipe (1). Follow the engine manufacturer's
specification with regard to the quality of diesel fuel.
Stop the diesel engine. Short-circuit (press) the
filler gun against a non-insulated part of the roller
before filling, and against the filler pipe (1) while
filling.
Stop the diesel engine. Short-circuit (press) the
filler gun against a non-insulated part of the roller
before filling, and against the filler pipe (1) while
filling.
Never refuel while the engine is running. Do not
smoke and avoid spilling fuel.
Never refuel while the engine is running. Do not
smoke and avoid spilling fuel.
The tank holds 117 liters (31.7 gal) of fuel.
