Maintenance - 250h
ICA134-3EN2.pdf 2012-04-13
Rear axle planetary gears - Check oil level

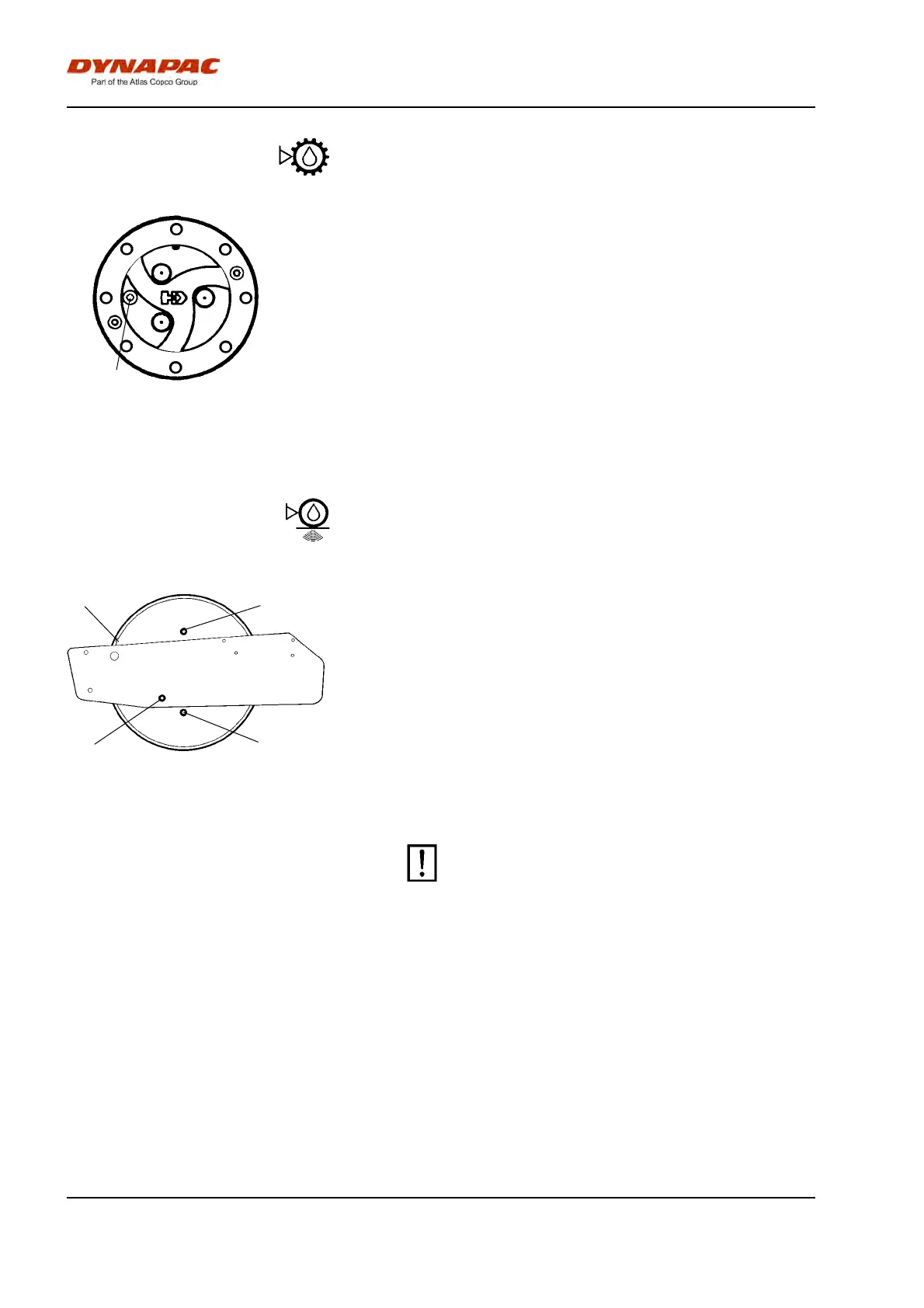

Fig. Level check - planetary gear
1. Level/Filler plug
1
Position the roller with the plug in the planetary gear
(1) in the "9 o'clock" position.
Wipe clean and remove the level plug (1) and check
that the oil level reaches the lower edge of the plug
hole. Top off with oil to the right level if the level is low.
Use transmission oil according to the lubricant
specification.
Clean and refit the plug.
Check the fluid level in the same way on the rear
axle's other planetary gear.
Drum - Checking the oil level
Figure. Drum, left side
1. Groove
2. Filler plug
3. Drain plug/Magnetic plug
4. Level plug
1
2
3
4
Position the roller on a flat surface with the groove (1)
on the inside of the drum aligned with the top of the
drum frame.
Release the level plug (4) and unscrew until oil starts
to run out through the plug hole.
If necessary, release the filler plug (2) and fill with oil
until it starts to run out through the level plug (4) hole.
Clean and screw in the level plug (4).
Clean and refit the filler plug (2).
See the lubrication specification for the correct oil
grade.
Do not overfill with oil - risk for overheating.Do not overfill with oil - risk for overheating.
80
