Dynapac CA134 - Page 44

Machine description - Instruments/Controls
ICA134-3EN2.pdf 2012-04-13

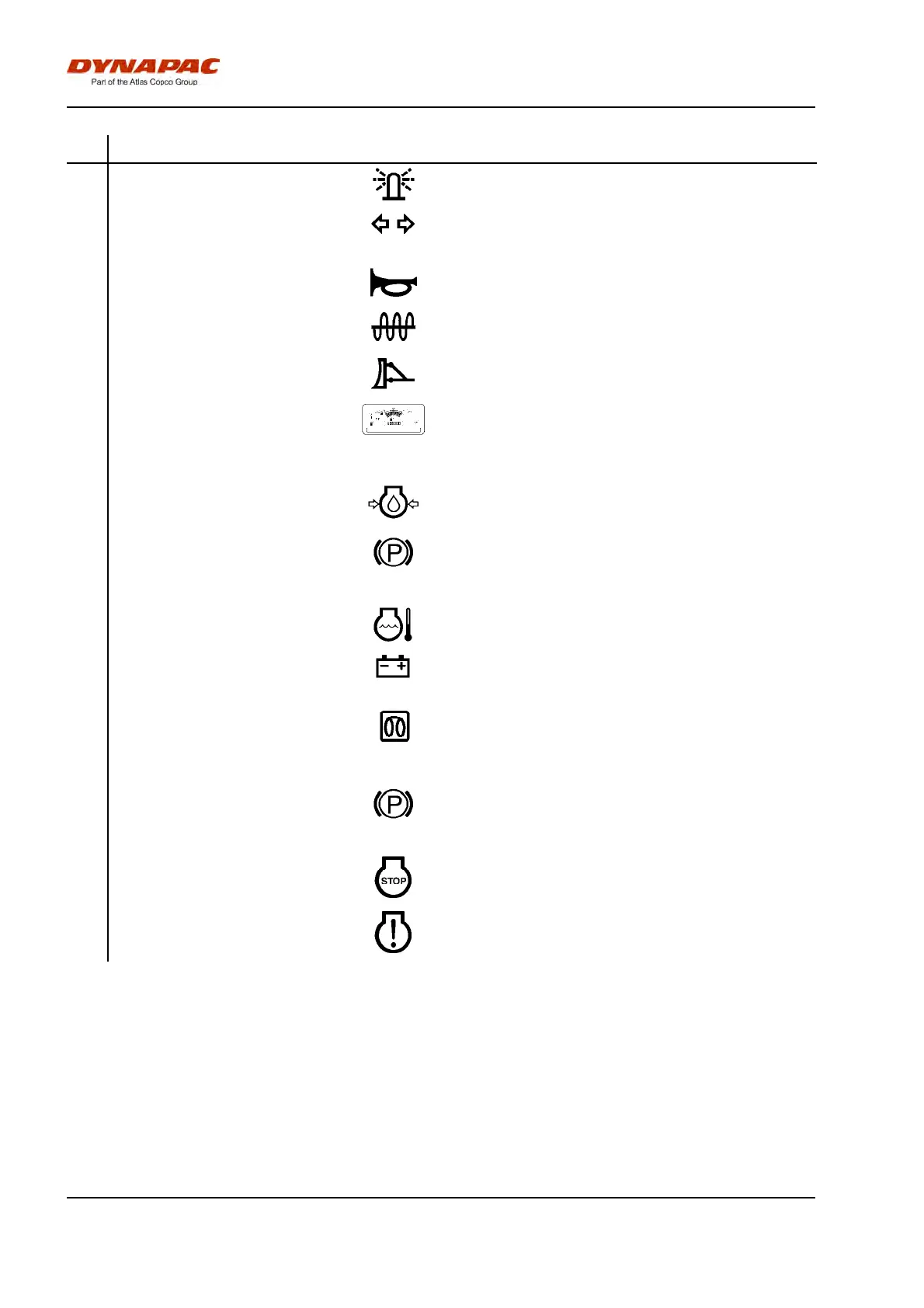

No Designation Symbol FunctionNo Designation Symbol Function
17. Hazard beacon, switch
(Optional)
Where depressed, the hazard beacon is on17. Hazard beacon, switch
(Optional)
Where depressed, the hazard beacon is on
18. Direction indicators,
switch (Optional)
When depressed to the left, the left direction
indicators are on etc. In the middle position the
function is shut off.
18. Direction indicators,
switch (Optional)
When depressed to the left, the left direction
indicators are on etc. In the middle position the
function is shut off.
19. Horn, switch Press to sound the horn.19. Horn, switch Press to sound the horn.
20. Vibration, switch Activates the vibration together with the switch in
the forward/reverse lever.
20. Vibration, switch Activates the vibration together with the switch in
the forward/reverse lever.
21. Strike-off blade, On/Off,
switch (Optional)
When pressed, the strike-off blade is activated.21. Strike-off blade, On/Off,
switch (Optional)
When pressed, the strike-off blade is activated.
22. Control panel22. Control panel
23. Warning lamp, low fuel level The lamp comes on when the fuel level in the tank
is low.
23. Warning lamp, low fuel level The lamp comes on when the fuel level in the tank
is low.
24. Warning lamp, oil pressure This lamp lights if the lubricating pressure in the
engine is too low. Stop the engine immediately and
locate the fault.
24. Warning lamp, oil pressure This lamp lights if the lubricating pressure in the
engine is too low. Stop the engine immediately and
locate the fault.
25. Warning lamp, parking brake The lamp lights when the parking brake is
activated.
25. Warning lamp, parking brake The lamp lights when the parking brake is
activated.
26. Fuel level Shows the fuel level in the diesel tank.26. Fuel level Shows the fuel level in the diesel tank.
27. Warning lamp, water
temperature
The light comes on if the water temperature is too
high.
27. Warning lamp, water
temperature
The light comes on if the water temperature is too
high.
28. Warning lamp, battery
charging
If the lamp lights while the engine is running the
alternator is not charging. Stop the engine and
locate the fault.
28. Warning lamp, battery
charging
If the lamp lights while the engine is running the
alternator is not charging. Stop the engine and
locate the fault.
29. Warning lamp, glow plug The lamp must go out before the starter switch is
moved to position 3c for activation of the starter
motor.
29. Warning lamp, glow plug The lamp must go out before the starter switch is
moved to position 3c for activation of the starter
motor.
30. Hourmeter Shows the number of hours the engine has run.30. Hourmeter Shows the number of hours the engine has run.
31. Parking brake On/Off, switch Push in to activate the parking brake, the machine
stops with the engine running. Always use the
parking brake when the machine is stationary
on a sloping surface.
31. Parking brake On/Off, switch Push in to activate the parking brake, the machine
stops with the engine running. Always use the
parking brake when the machine is stationary
on a sloping surface.
32. Motor diagnostics Control lamp red. Serious fault: Turn the motor off
at once! Attend to before restarting.
32. Motor diagnostics Control lamp red. Serious fault: Turn the motor off
at once! Attend to before restarting.
33. Motor diagnostics Control lamp yellow. Less serious fault: Attend to
as soon as possible.
33. Motor diagnostics Control lamp yellow. Less serious fault: Attend to
as soon as possible.
36
