EDAN M8 Series User Manual

Patient Monitor User Manual Monitoring ECG/ RESP
- 99 -

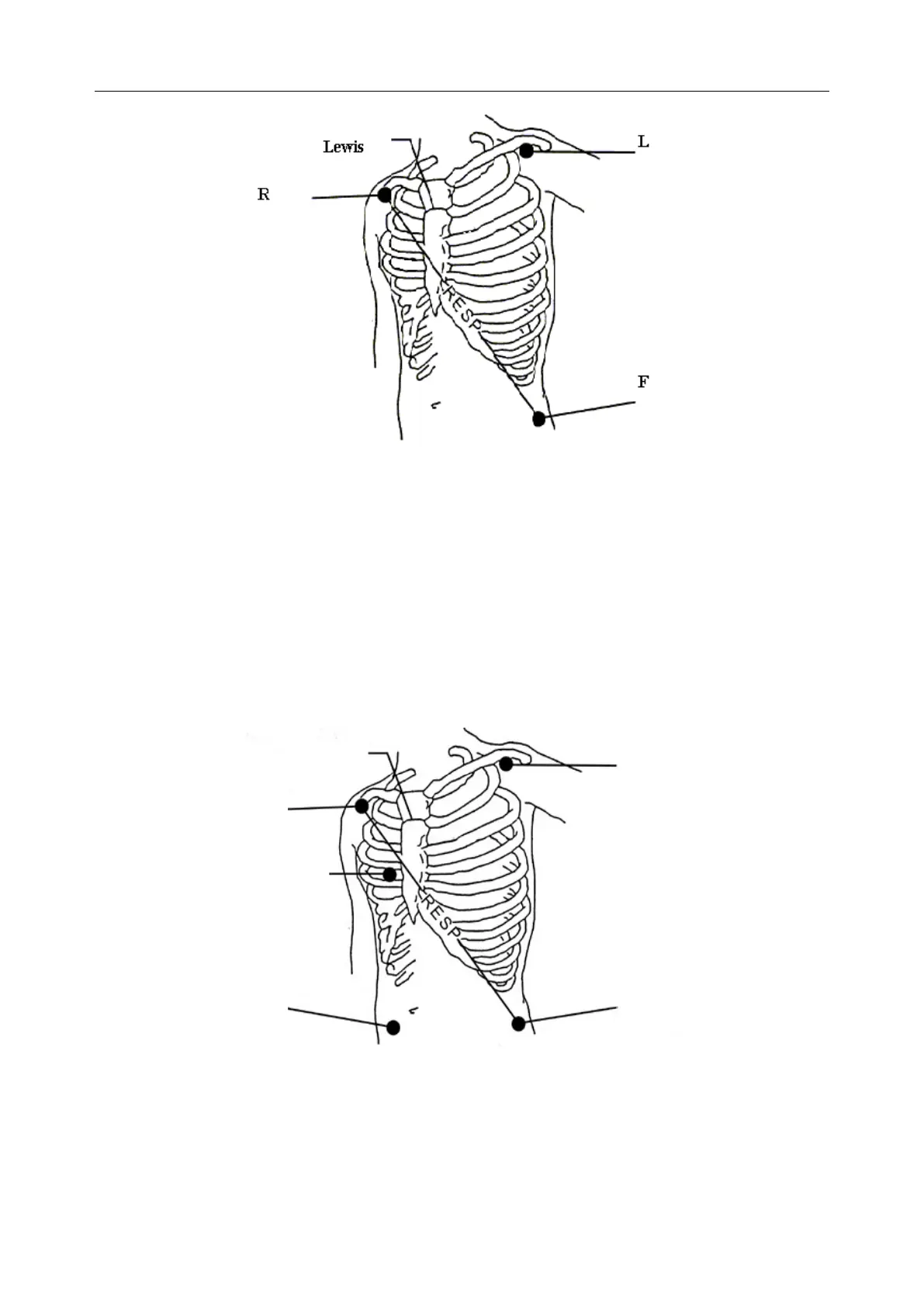

Figure 13-1 Electrode Placement for 3-lead Set
Electrode placement for 5-lead set
Take the American standard for example, see Figure 13-2:
 Red (R) electrode - Be placed near the right shoulder, directly below the clavicle.
 Yellow (L) electrode - Be placed near the left shoulder, directly below the clavicle.
 Black (N) electrode - Be placed on the right hypogastrium.
 Green (F) electrode - Be placed on the left hypogastrium.
 White (C) electrode - Be placed on the chest as illustrated in the Figure 13-2.
Figure 13-2 Electrode Placement for 5-lead Set
NOTE:
To ensure patient safety, all leads must be attached to the patient.
R
Red
C
White
N
Black
L
Yellow
F
Green
Lewis
