Patient Monitor User Manual Trend and Event
- 81 -
Data is listed chronologically from the latest to the earliest. 15 measurements can be displayed on
one screen. Pick UP-DOWN to view up to 500 results of measurements. When you press the
RECORD button, the recorder will print out the metrical data of current window.
NOTE:
When the user set the NIBP SETUP > PR (NIBP) to ON, the PR parameter will display in
the menu of NIBP RECALL; if set it to OFF, the PR parameter area displays ― ―.
10.4 Alarm Event Recall
The monitor can display the latest 60 alarm events.
Select ALARM RECALL in the SYSTEM MENU to access ALARM RECALL
CONDITION menu as shown below.

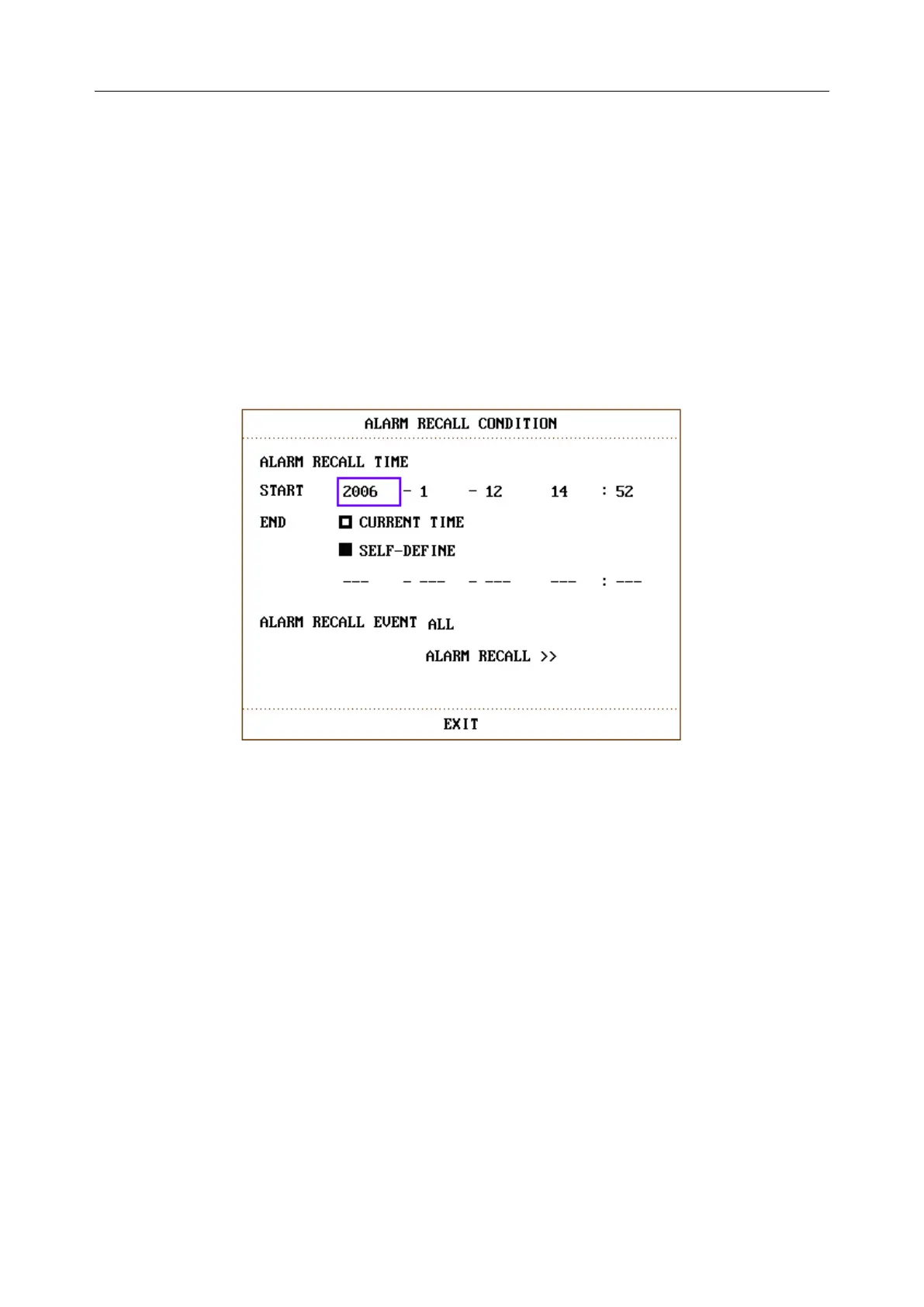

Figure 10-4 ALARM RECALL CONDITION
In this menu, the user may select the conditions for alarm review, including:
1. Start and End time of review:
The user may select the start time of review in the item of START.
Then the user may select the end time of review. Two selections are available: current time
and the user-defined time.
For user-defined end time, the user can use the knob to select.
2. ALARM RECALL EVENT
In the pull-down list of ALARM RECALL EVENT, the user can select the parameter
whose alarm events he wants to review. The selections include ALL (alarm events of all
parameters), ECG, REST, SpO
2
, NIBP, PR(NIBP), IBP, TEMP, CO
2
, HR_H>180 (the value
of HR is above the upper alarm limit), HR_L<60 (the value of HR is below the lower alarm
limit), SpO
2
<90%, IBP_H>200 mmHg, IBP_L<40 mmHg, RR_H>40, RR_L<10,
TEMP_H>40ºC , TEMP_L<34ºC .
After setting up all the review conditions, press the ALARM RECALL button to access
ALARM RECALL window.
