Patient Monitor User Manual Monitoring ECG/ RESP
- 103 -
NOTE:
Only in Diagnosis mode, the system can provide real signals filtered by the bandwidth of
0.05 Hz~150 Hz. In Monitor or Sugery mode, ECG waveforms may be distorted to
different extents. In either of the latter two modes, the system can only show the basic
ECG and the results of ST analysis may also be greatly affected. In Surgery mode,
results of ARR analysis may be somewhat affected. Therefore, it is suggested that in the
environment where relatively small interference exists, you’d better monitor a patient in
Diagnosis mode.
[4]. Leads of channel 2: refer to [1] for detailed information.
[5]. Waveform gain of channel 2: refer to [2] for detailed information.
NOTE:
Pacemaker signal detection is marked by a "
|
" above the ECG waveform.
13.5 ECG Menu
13.5.1 ECG SETUP
Pick the ECG hot key on the screen, and the following menu will pop up.

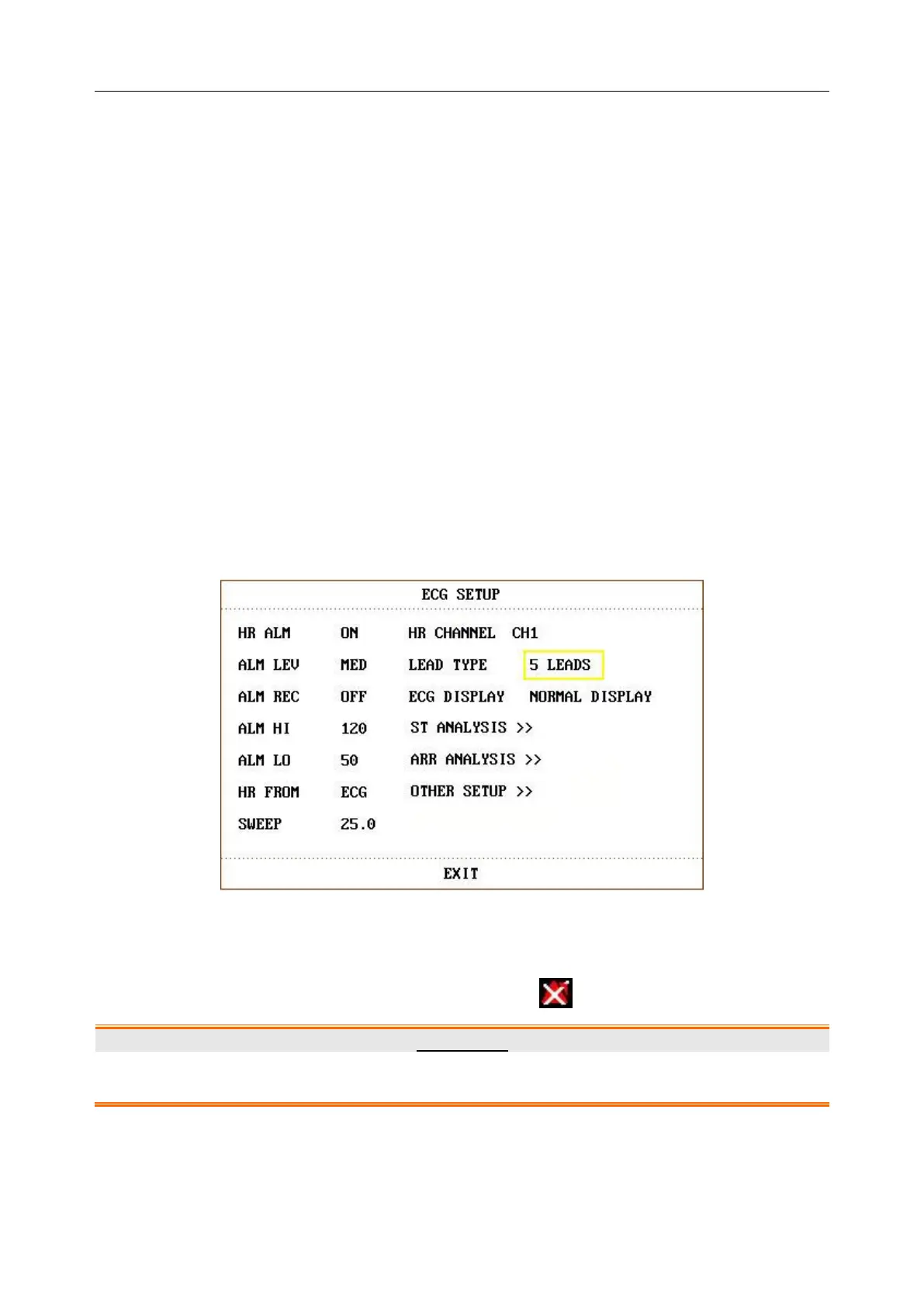

Figure 13-7 ECG Setup
ECG Alarm Setting
HR ALM: pick ON to enable prompt message and data record during the ECG alarm; pick
OFF to disable the alarm function, and there will be a beside ECG.
WARNING
In order to avoid endangering the patient’s life, the user should use this function
cautiously.
ALM LEV: selectable from HIGH, MED. Level HIGH represents the most serious case.
ALM REC: pick ON to enable report printing upon ECG alarm.
To Next Page
