Patient Monitor User Manual Trend and Event
- 80 -
To obtain trend data of different parameters
Pick L-RIGHT to select one from the 8 groups of parameters. " " by the rightmost item
indicates the next page available. " " by the leftmost item indicates the previous page available.
Mark Event
If an event is marked A, B, C, or D, the corresponding event type will display on the Time axis of
the trend table.
Operation Example
To view a NIBP trend table:
Pick the Menu button on the lower right of the screen to access SYSTEM MENU.
Pick TREND TABLE.
Pick L-RIGHT and switch to NIBP by turning the knob.
Pick RESOLUTION to select requested time interval.
Pick UP-DOWN and turn the knob to view NIBP trend data of different time.
Pick EXIT to return to SYSTEM MENU.
10.3 NIBP Recall
The monitor can review the latest 500 NIBP measurement data.
Pick NIBP RECALL in the SYSTEM MENU to invoke the result and time of the latest 15
measurements, as shown in the figure below.

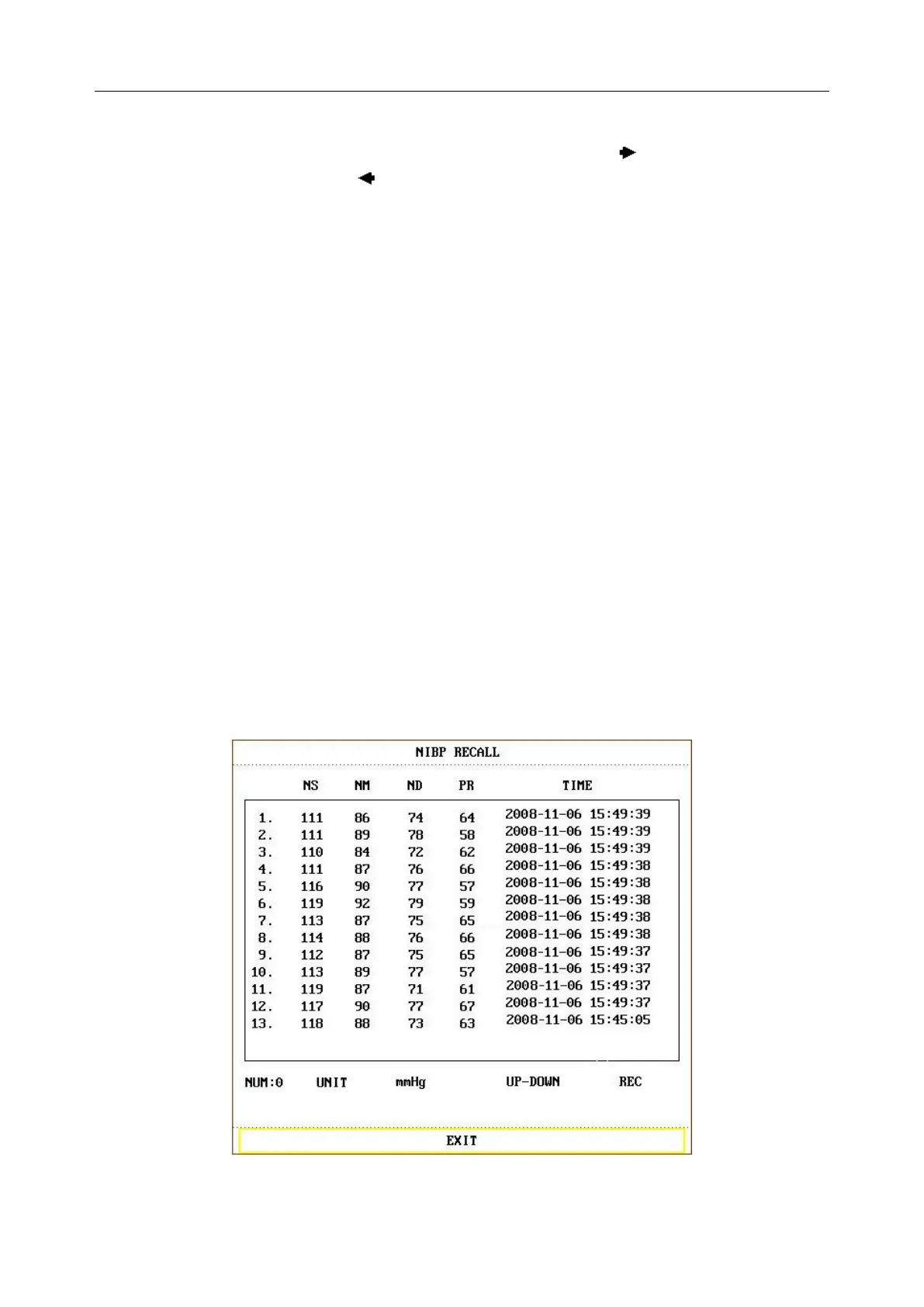

Figure 10-3 NIBP Recall
To Next Page
