Patient Monitor User Manual Trend and Event
- 79 -

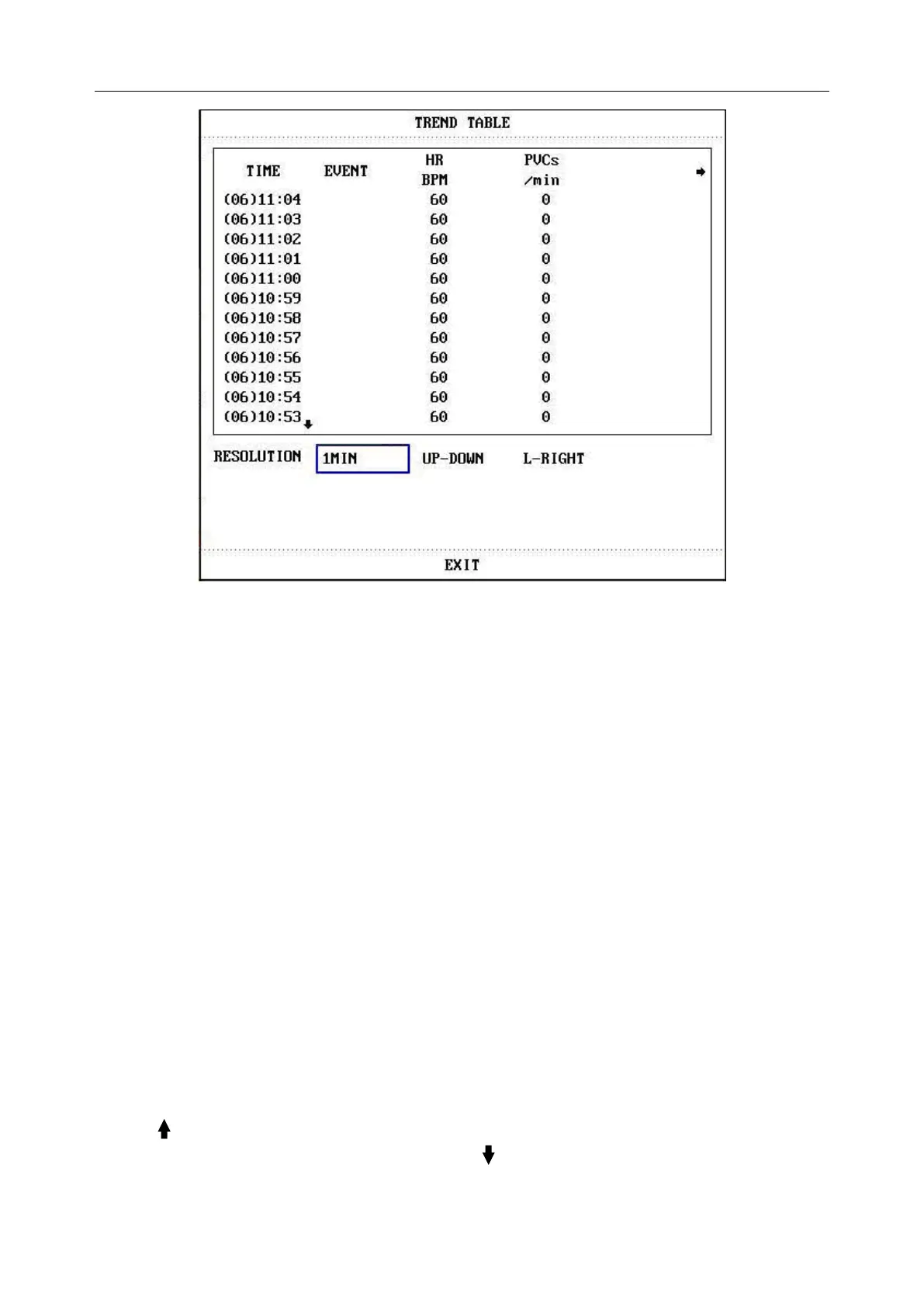

Figure 10-2 Trend Table
Time corresponding to each group of trend data is displayed in the leftmost list with date in
brackets. Marked event corresponds to marking time. Trend data of each parameter is divided
into 8 groups.
HR, PVC
ST1, ST2
RR
T1, T2, TD
SpO
2
, PR
NIBP NS/NM/ND
IBP1, IBP2
CO
2
, FiCO
2
, AWRR
The IBP1, IBP CO
2
, FiCO
2
, AWRR are optional according to the product models.
To choose a trend table of a different resolution
Pick the RESOLUTION item and turn the knob to change its content so as to change the time
interval of trend data.
To view other trend data
When " " appears on the upper part of the screen, pick UP-DOWN button and turn the knob
counterclockwise to view later trend data. When " " appears on the lower part of the screen,
pick the same item and turn the knob clockwise to view earlier trend data.
