Patient Monitor User Manual Monitoring ECG/ RESP
- 107 -

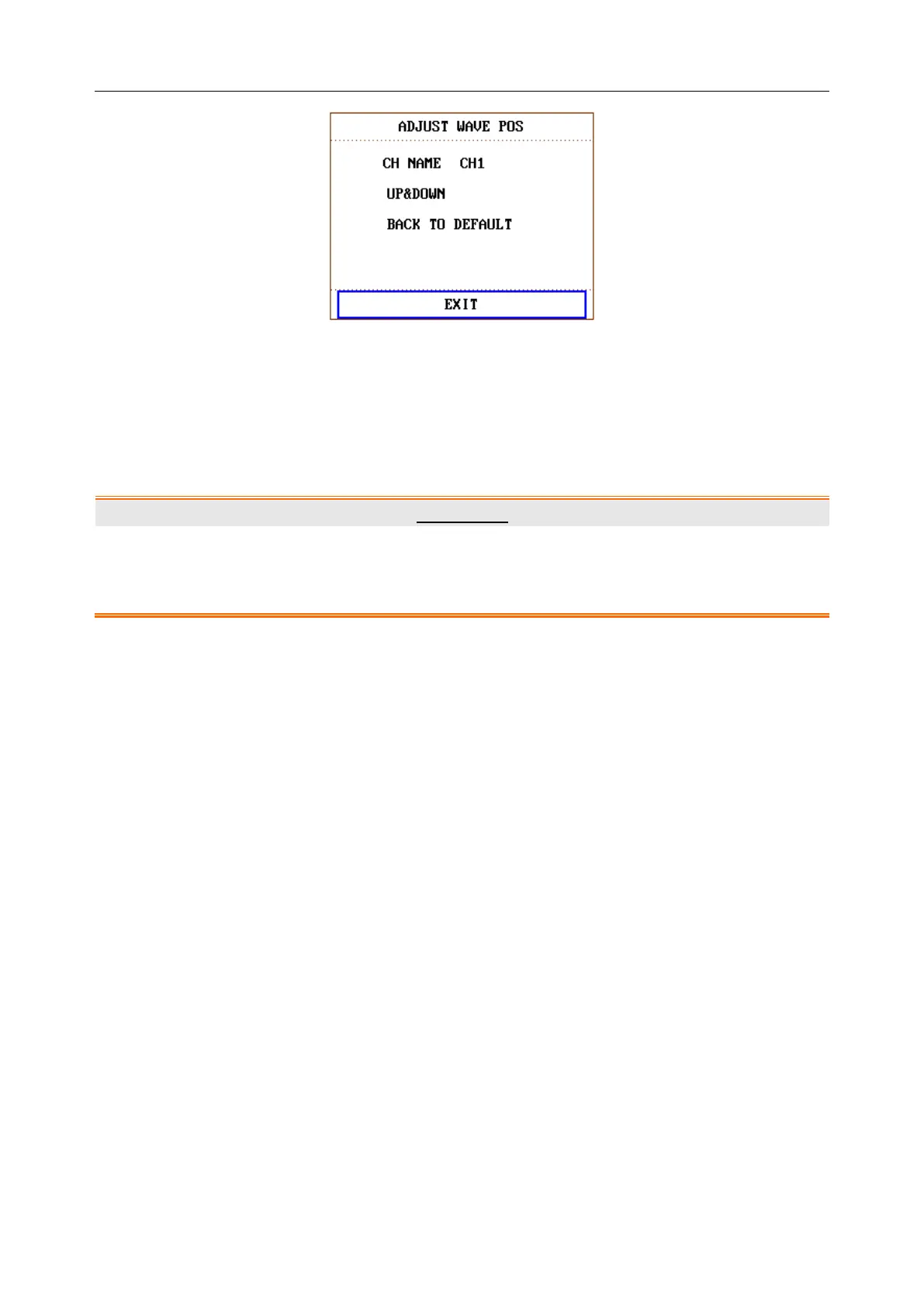

Figure 13-9 ADJUST WAVE POS Menu
DEFAULT
Pick the DEFAULT item to call up the ECG DEFAULT CONFIG dialog box, in which
you can select the FACTORY DEFAULT CONFIG or the USER DEFAULT CONFIG
item. After selecting any of the items and exiting the dialog box, the system will pop up a
dialog box asking for your confirmation.
WARNING
For patients with pacemakers, the pacing impulse analysis function must be switched ON.
Otherwise, the pacing impulse may be counted as normal QRS complex, which results in
failure of ECG LOST error detection.
NOTE:
When PACE Switch is ON, the Arrhythmia events related to PVCs will not be monitored.
At the same time, the ST analysis will not be performed either.
If the monitor can do ST segment monitoring and Arrhythmia monitoring, please refer to Section
13.6 and 13.7.
13.6 ST Segment Monitoring (Optional)
ST segment monitoring function is shut off by default. You can switch it to ON when
necessary. When using the ST analysis function, the ST analysis results will be displayed on
the right of the main screen.
NOTE:
1 ST ANALYSE only can be used only in ADU mode, and is not clinically validated for
use with neonatal and pediatric patients.
2 In ST analysis, the obtained ST value and ST template are all unaffected by the
selected filter mode. ST algorithm itself uses a dedicated linear filter to ensure the
signal is not distorted, and to better ensure the consistent and accurate measurement
value and ST template can be obtained in different filter modes. If the doctor wants to
observe the waveform to evaluate ST segment result, it is recommended to use the
ST template for observation, as it is not affected by the filter mode. If the real-time
waveform displayed on the interface is used to evaluate ST segment result, it is
