Patient Monitor User Manual Trend and Event
- 82 -
ALARM RECALL

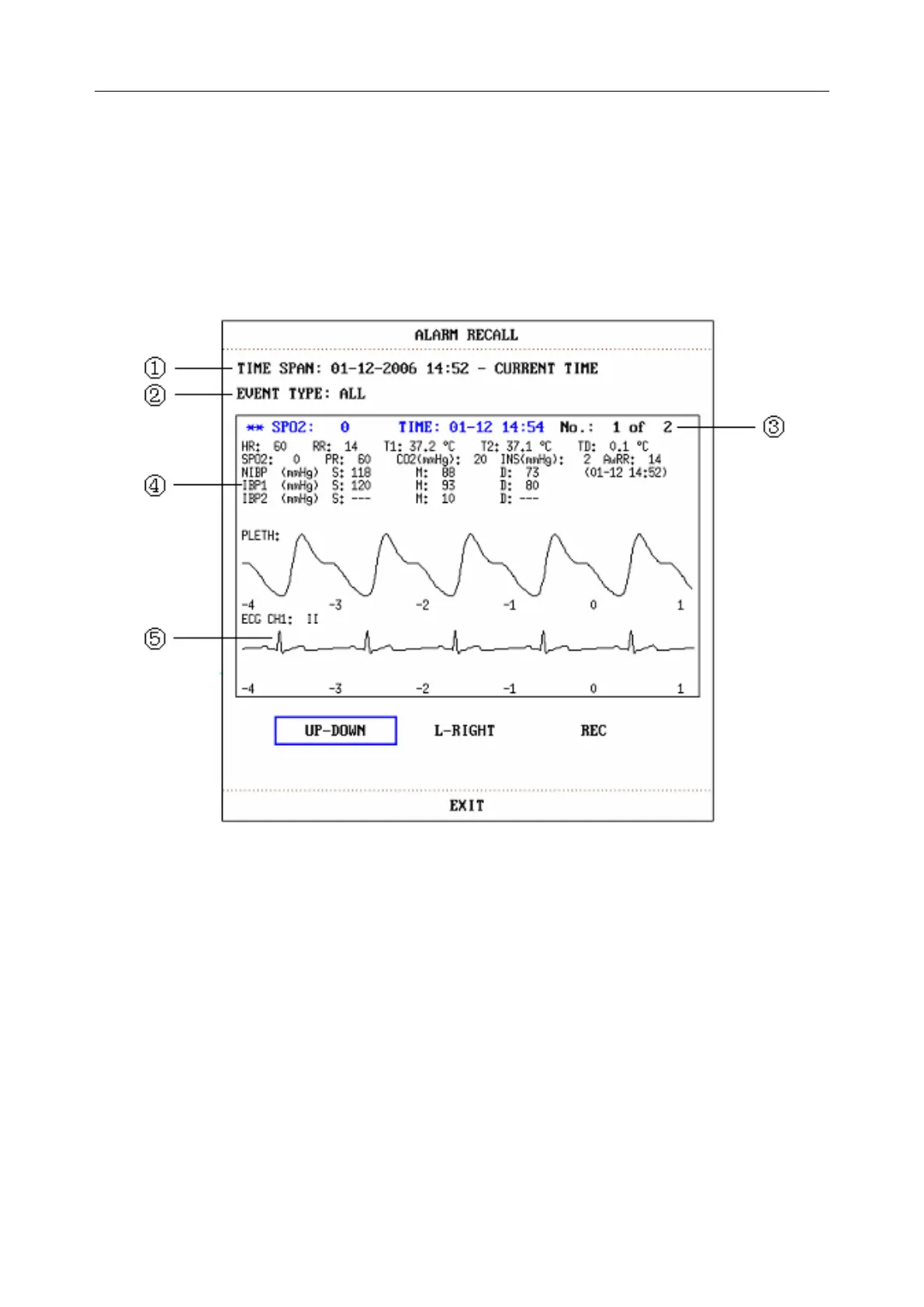

The ALARM RECALL window is as shown below, in which the following data are displayed:
① Time span (Format: month-day-year hour: minute-month-day-year hour: minute).
② Event type.
③ Serial number (Format: NO. ×× of ××).
④ The value at the time of alarm. NIBP result is with time.
⑤ Two 8/16/32-second waveforms.
Figure 10-5 ALARM RECALL Menu
NOTE:
When the user set the NIBP SETUP > PR (NIBP) to ON, the PR parameter will display in
the menu of ALARM RECALL; if the user set it to OFF, the PR parameter will not display.
To view all waveforms during the alarming process
Pick L-RIGHT and turn the knob to view all 8/16/32-second waveforms stored.
To view other alarm events
Events of up to 60 are listed chronologically from the latest to the earliest. Pick UP-DOWN
button and turn the knob to view later or earlier events.
Recording
Pick REC to print out all data and waveforms of this event.
