Patient Monitor User Manual System Menu
- 37 -

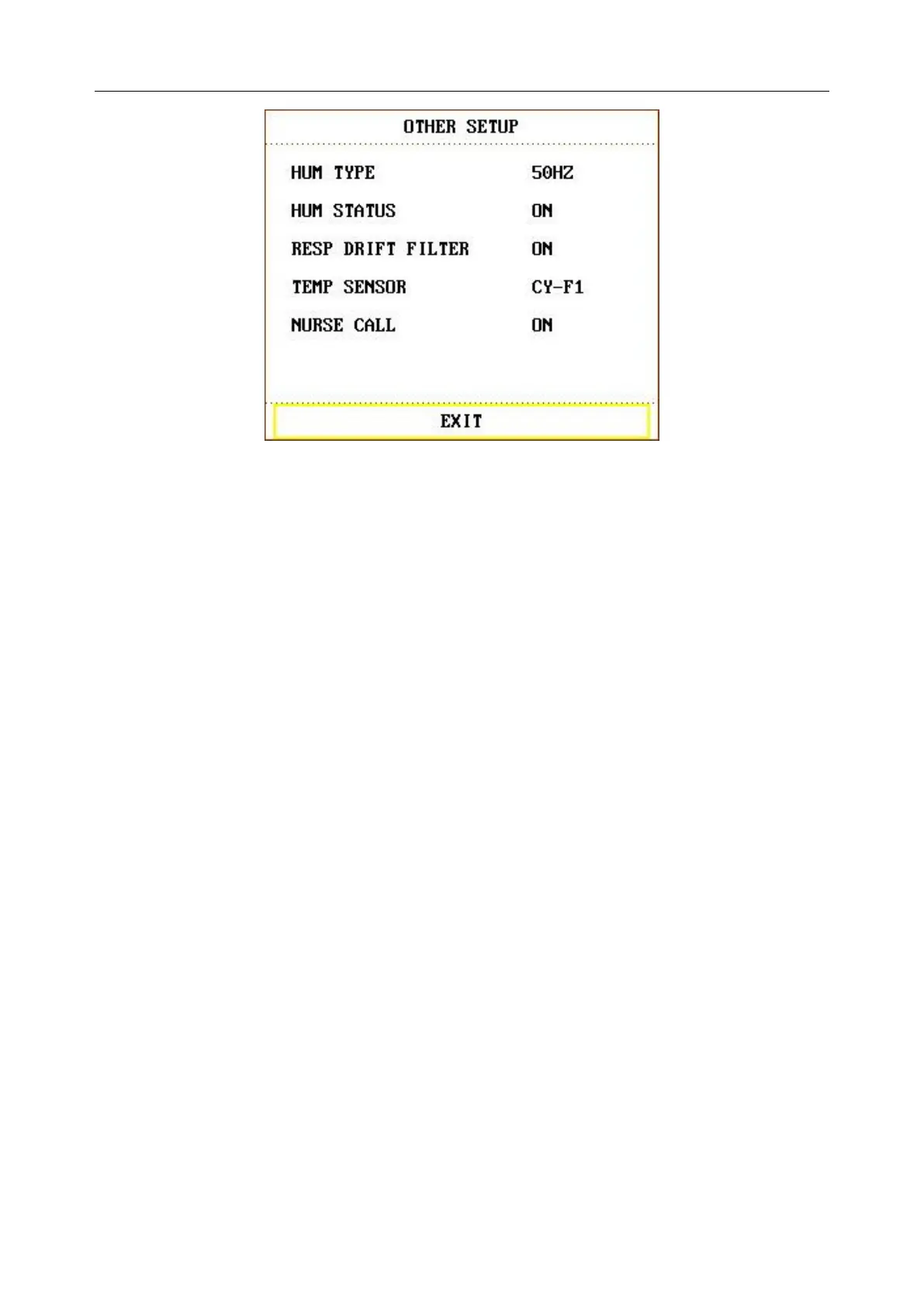

Figure 4-14 Other Setup
NURSE CALL: Turn on or off the nurse call. When a new alarm of physiological
parameter occurs, it gives a 3-second NURSE CALL alarm; if the system alarm or the
audio alarm is turned off, the NURSE CALL is unavailable. It is connected to RJ45
socket, the same port as connected to Ethernet. NURSE CALL occupies the 7
th
and 8
th
pins of RJ45. When the alarm occurs, the 7
th
and 8
th
pins are in short circuit: otherwise
they are disconnected.
CO
2
MAINTAIN >>:
Only applicable to EDAN EtCO
2
module.
In this menu, it displays BARO PRESS, GAS CELL PRESSURE, MODULE TEMP. You
can set standard GAS TEMP (25 C is recommended) and CO
2
value for CALIBRATE
operation. ZERO CAL operation has no need to set standard GAS TEMP and CO
2
value.
SELECT FONT: You can set the displayed font on the main screen to ARIAL or
ARIALBOLD. The default is ARIALBOLD.
NIBP MAINTAIN: It is used to RESET, CALIBRATE and LEAK TEST.
SAVE CURRENT AS USER CONFIG
In this sub-menu, you can save the current configuration as the user-defined default configuration.
At this time, the system will automatically save all the setups in the parameter menu, ECG lead,
gain and filter way as the user-defined default configuration according to the patient type. The
dialog box as shown below will pop up.
