Patient Mon
itor User
Manual
Sy
stem Menu
- 40 -

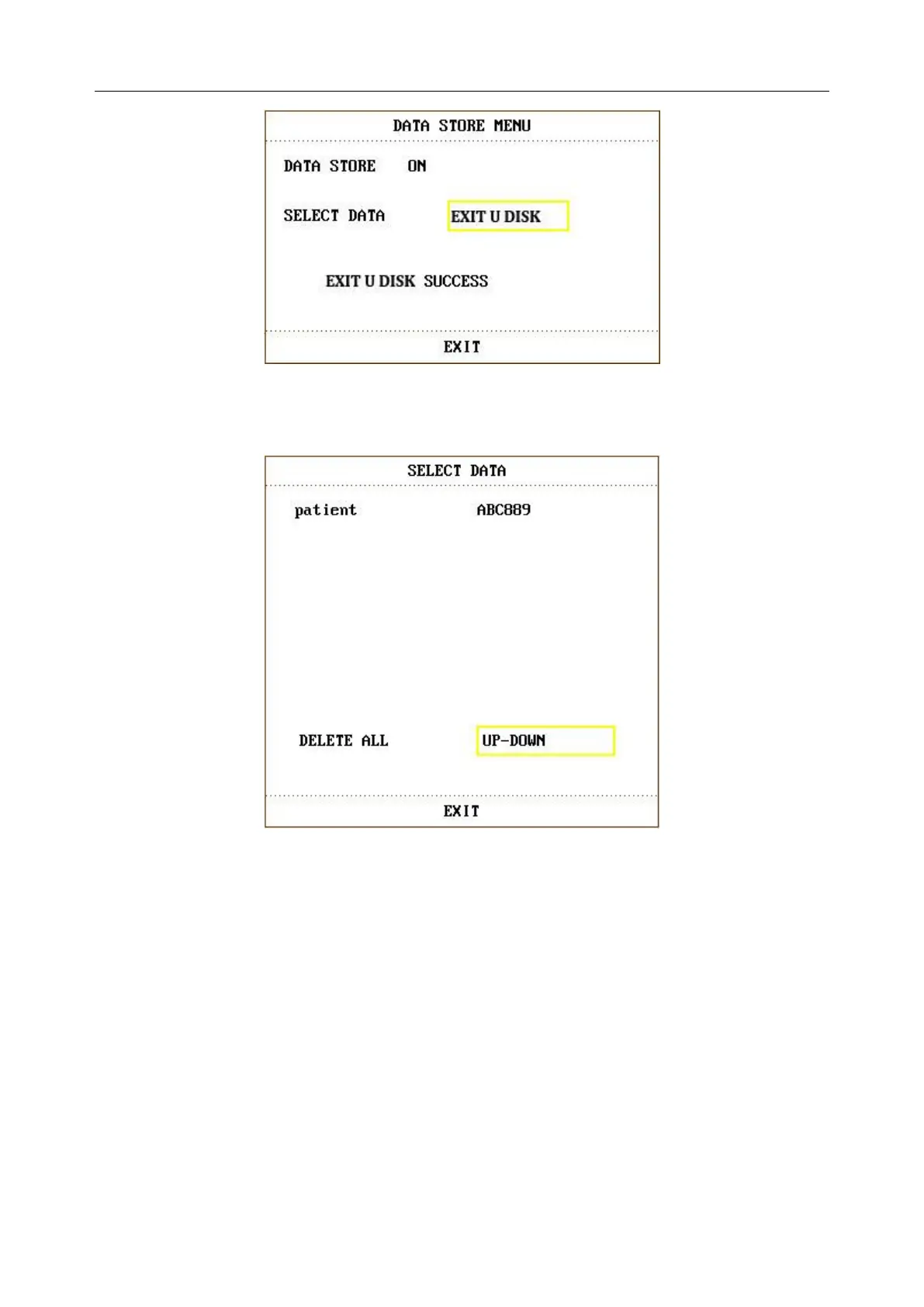

Figure 4-18
Delete US
B success
SEL
ECT DATA
: select this item to query
data. The dialog box displays as follows:
Figure 4-
19
Select dat
a
－
DELETE ALL
:
users
can
delete all the data of selected patient
ID
b
y this item.
－
UP
-DOWN
: users can page up or down by this item, patient
I
D can be displayed on few
pages.
Select patient ID to enter the following dialog box for selec
ting the d
ata:
48
50
