C
HAPTER
17
| Multicast Filtering
Multicast VLAN Registration for IPv4
– 647 –
To show the configured MVR group address profiles:
1. Click Multicast, MVR.
2. Select Configure Profile from the Step list.
3. Select Show from the Action list.

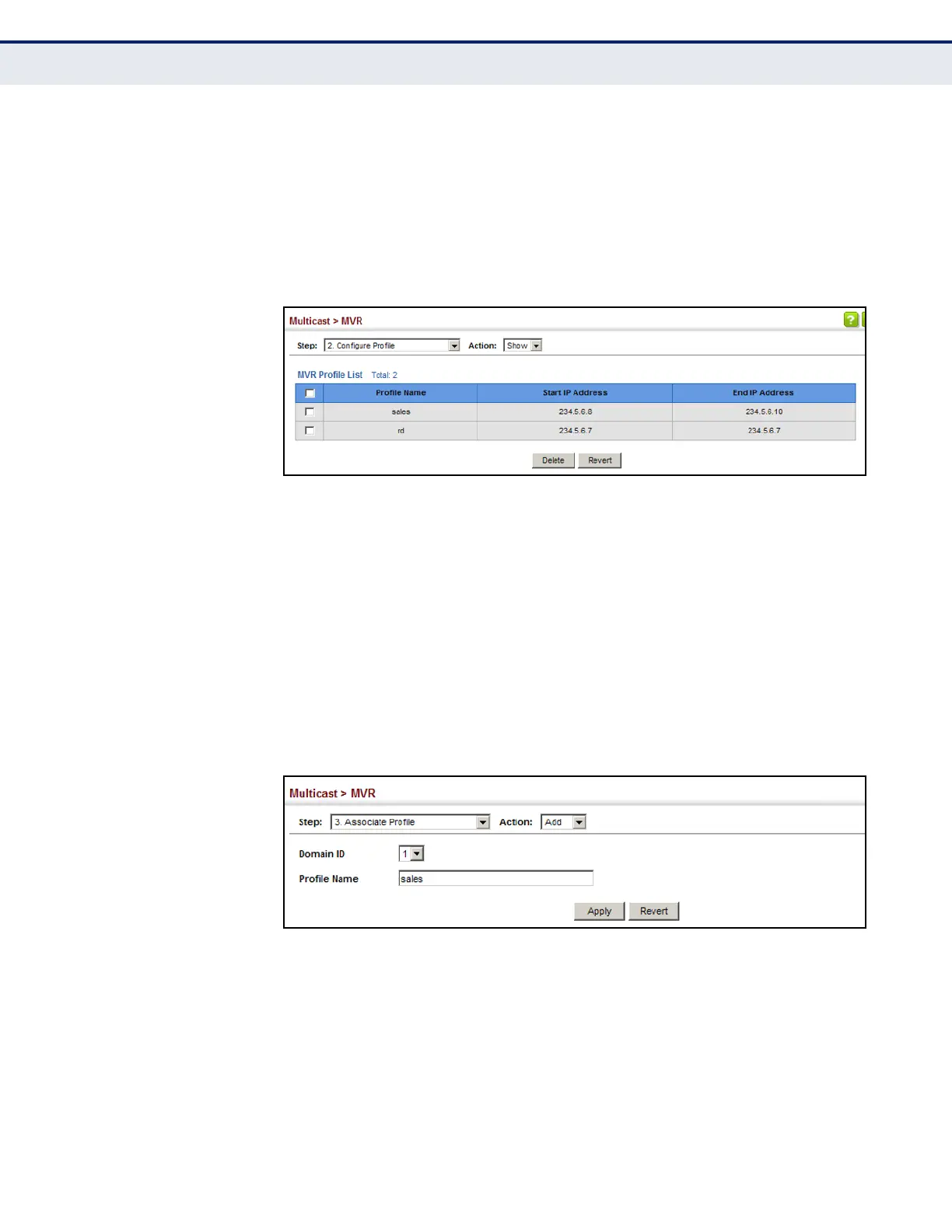

Figure 387: Displaying MVR Group Address Profiles
To assign an MVR group address profile to a domain:
1. Click Multicast, MVR.
2. Select Associate Profile from the Step list.
3. Select Add from the Action list.
4. Select a domain from the scroll-down list, and enter the name of a
group profile.
5. Click Apply.
Figure 388: Assigning an MVR Group Address Profile to a Domain
To show the MVR group address profiles assigned to a domain:
1. Click Multicast, MVR.
2. Select Associate Profile from the Step list.
3. Select Show from the Action list.
