133
support@edgeovens.com
Technical Support: +1 (724) 628 3050
SERVICE
FIGURE 4-5
FIGURE 4-7
FIGURE 4-9
FIGURE 4-8

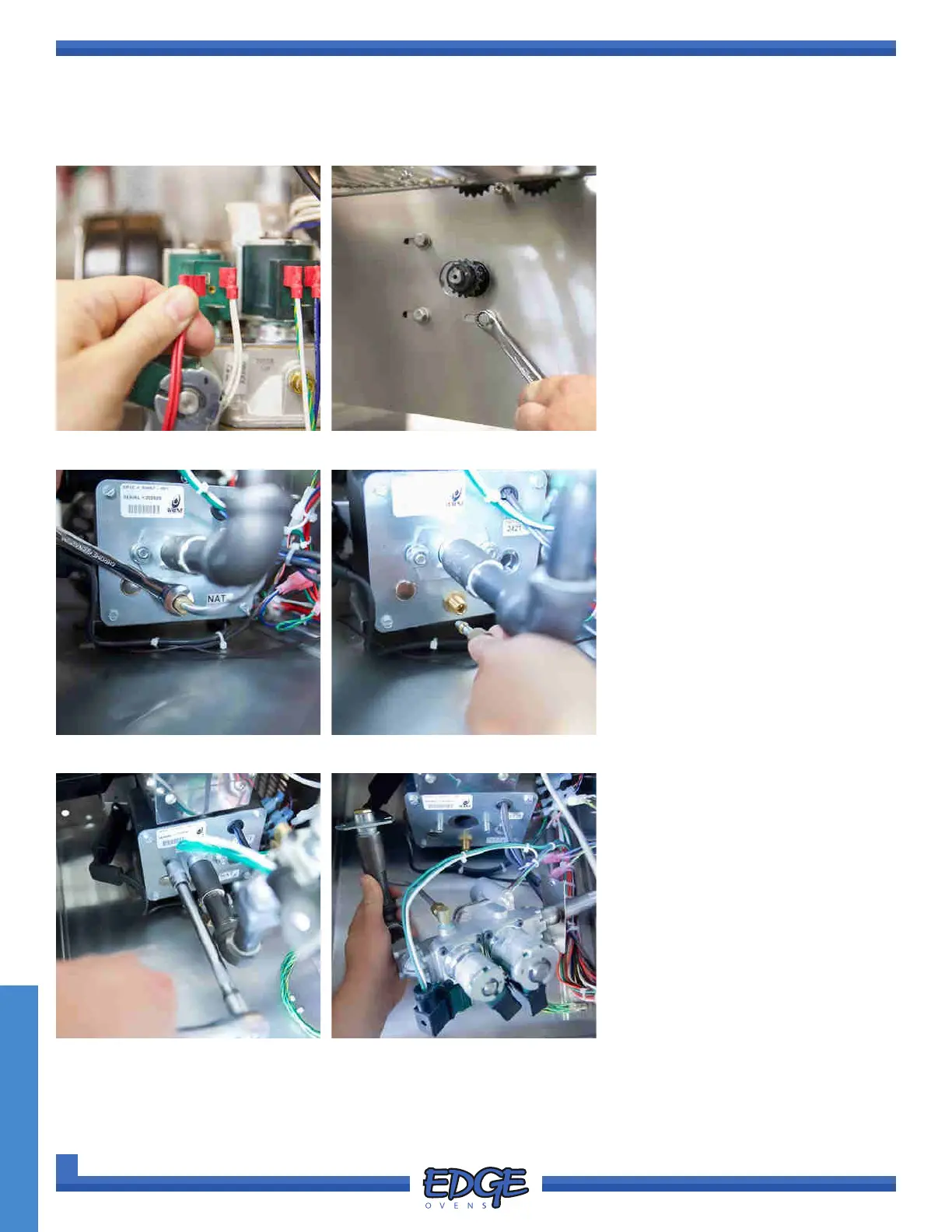

5. Carefully disconnect the spade
connectors (or plugs) from the
gas valve, noting the position of
each connector. (Figure 4-5)
6. If the oven is equipped with a
split-belt, unbolt the front most
conveyor motor using a 7/16”
wrench and lay the motor away
from the burner. (Figure 4-6)
7. Using a 1/2” wrench, disconnect
the aluminum pilot tube from
the burner assembly faceplate.
(Figure 4-7 & Figure 4-8)
8. Using a 1/2” socket with long
extension and ratchet, remove
the two (2) 1/2” nuts, which
secure the gas valve train to the
burner face plate. (Figure 4-9)
9. Remove the gas train from the
oven. (Figure 4-10)
FIGURE 4-10
REMOVING THE GAS TRAIN (CONTINUED)
GAS CONVERSION
FIGURE 4-6
