INSTALLATION
ELECTRICAL
FINAL CONNECTIONS
To prevent damage to the oven and personal injury or death, the voltage, phase and
grounding of the electrical supply must be inspected and veried prior to energizing.
WARNING
IMPORTANT
Final installation and connection of gas and electrical services should be performed by
a licensed plumber and electrician. Gas inlet pressure must be veried with all ovens
and gas appliances ON, to ensure adequate supply pressure and volume. The electrical
supply voltage and the integrity of the ground must be veried prior to connection.
IMPORTANT
The intended electrical supply voltage MUST be veried at the connection point (electrical
outlet or electrical junction box) prior to connecting the oven. Voltage exceeding +/-10%
of the rated voltage may result in damage to the components of the oven and WILL NOT
BE COVERED BY WARRANTY.
IMPORTANT
This appliance operates using an inverter and inverter duty motor. GFCI/RCCB devices are
not recommended. False or “nuisance” trips are possible at start-up and during operation.
In the event a GFCI/RCCB is required by the local electrical code, a quality GFCI/RCCB of
the appropriate type must be selected. EDGE recommends Siemens panel mounted GFCI
Breakers 20A (USA) / RCCB (B Type) 16A breaker protection devices (EXPORT).

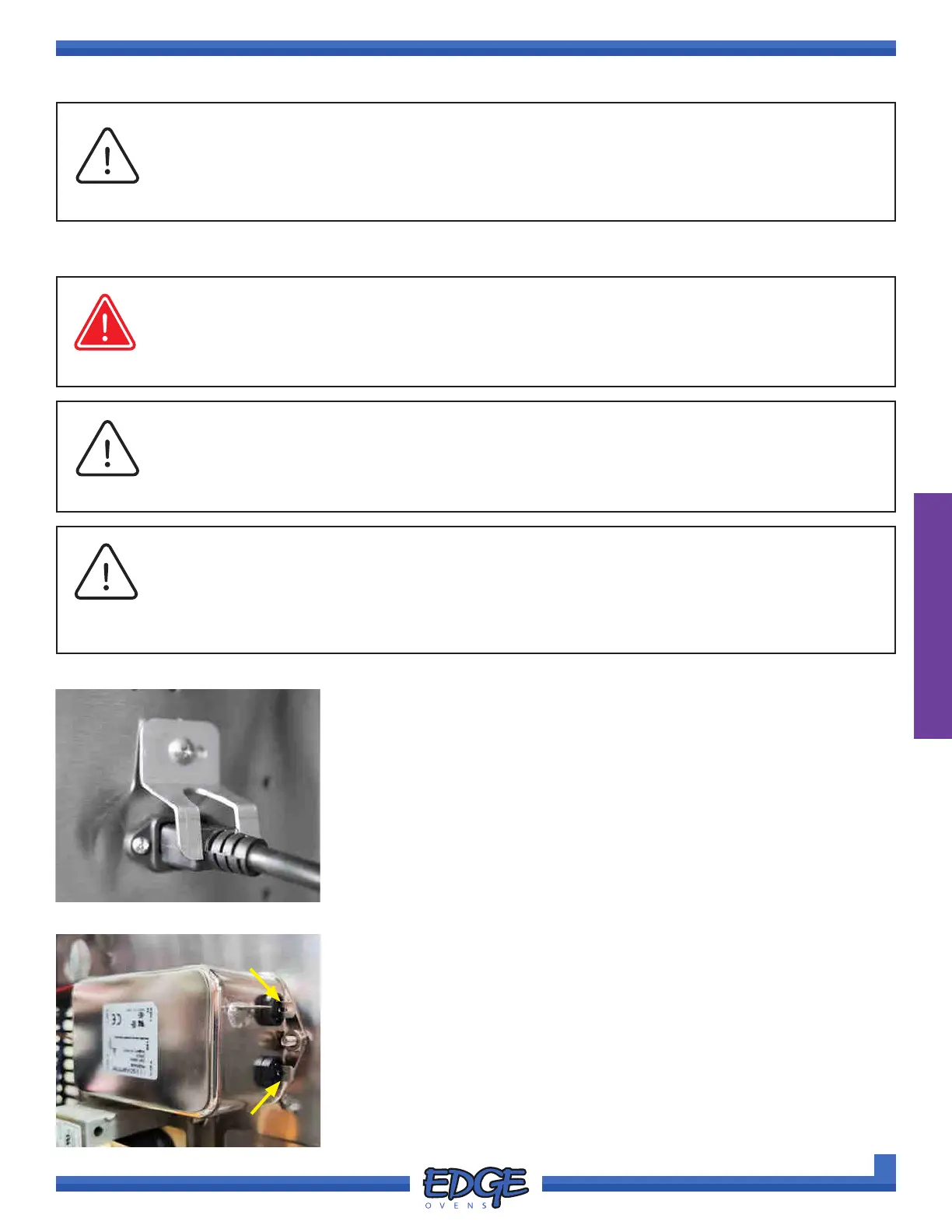

NORTH AMERICA (US DOMESTIC)
North American appliances include an attached 14/3-AWG, NEMA-
15 cord set. Ensure the retaining clip is correctly installed over the
corded receptacle during installation (Figure 2-106). This cord must
not be altered in any way. A dedicated 120VAC / 20A circuit is to be
used for EACH oven within a stack.
FIGURE 2-106
FIGURE 2-107
NEUTRAL
LIVE
WORLD (EXPORT & CE)
World (Export) appliances shall be connected using a gland and a
tted cord set (not provided). Connections are to be made directly
to the EM lter (Figure 2-107). Ensure the earth ground is properly
terminated to the marked bonding point. A dedicated 230VAC / 16A
circuit is to be used for EACH oven within a stack.
