PREVENTATIVE MAINTENANCE
BURNER ASSEMBLY CLEANING
FREQUENCY:
The EDGE Oven is a gas burning appliance. Much like a furnace system, maintenance is required
to ensure reliable operation. The burner system must be inspected and maintained SEMI-
ANNUALLY.
AREA OF OVEN:
• Inside oven control cabinet on the right hand side of the oven.
180
METHOD:
1. Disconnect the electrical supply and the exible quick disconnect gas
hose from the oven.
2. Remove the two (2) securing screws either side of the gas inlet pipe as
it enters the rear side of the control cabinet. (Figure 3-58)

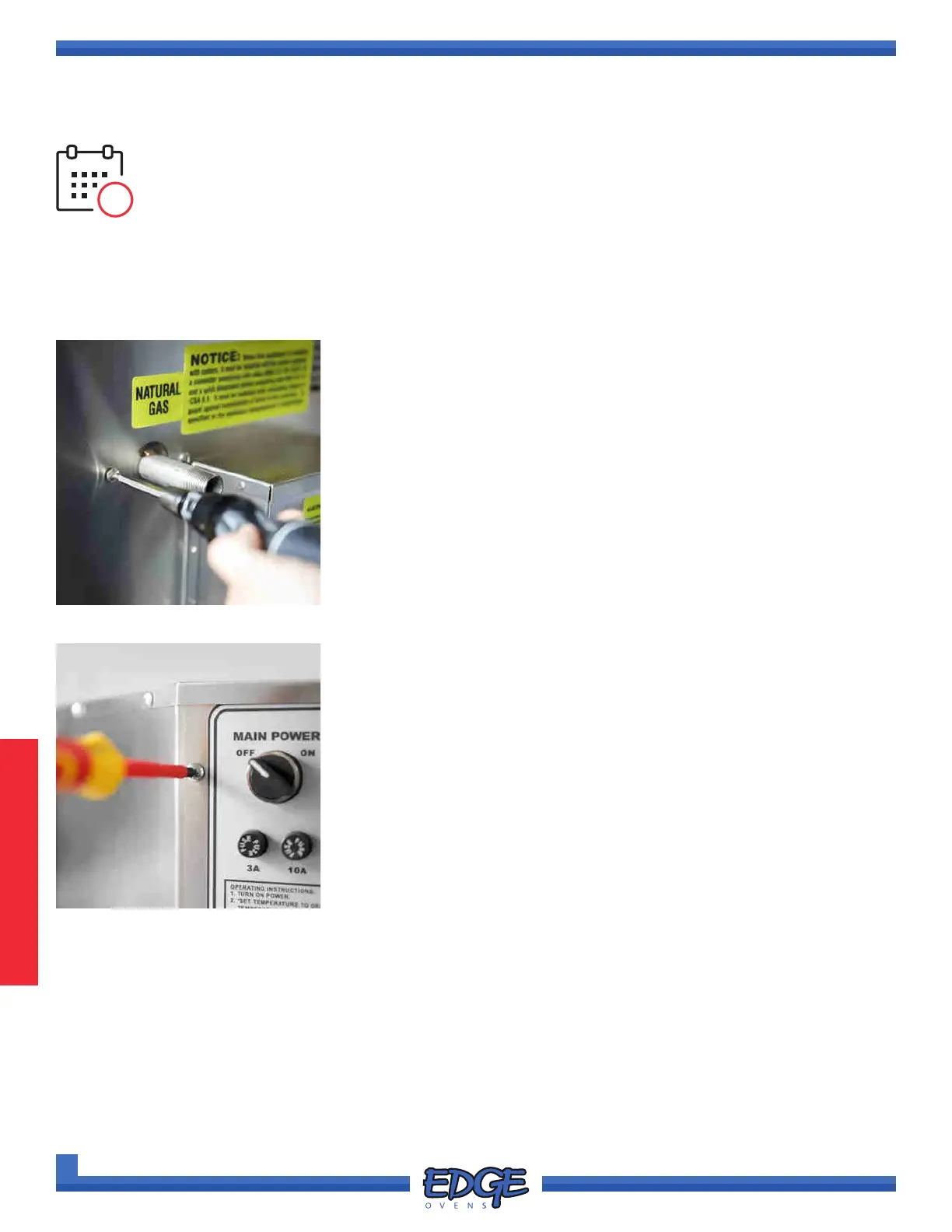

FIGURE 3-58
FIGURE 3-59
3. Remove the screws securing the lid to the control cabinet. There are
four (4) screws in total, two (2) located on the front and two (2) on the
back. Remove the lid and set aside with the removed screws.
4. Remove the four (4) screws on control cabinet door (Figure 3-59). The
control cabinet door will now lift and swing on its hinges, located on the
right hand side of the door.
