Technical Support: +1 (724) 628 3050
INSTALLATION
All EDGE ovens are equipped with casters. A restraint cable must be installed to limit the movement of the
oven without straining the gas or electrical connections. One (1) restraint kit, which includes one (1) eyelet
bracket, one (1) stainless steel clip & a cable, is required for each oven stack, regardless if used on a single,
double, triple oven conguration.
The eyelet bracket should be installed in the lowest hole of the back wall on the control cabinet end of the
lowest oven in the stack. The lag eye bolt must be installed into a structural member of a wall or oor. It is the
owner’s responsibility to ensure the restraint system is installed correctly.
RESTRAINT CABLE
When this appliance is installed with casters, it must be installed with the casters supplied,
a connector complying with ANSI Z21.69 -OR- CAN/CGA-6.16, a quick-disconnect device
complying with ANSI Z21.41, and a mechanism to limit movement of the appliance without
straining the connector or its associated piping system. This quick-disconnect device must
not exceed 1.5 meters in length.

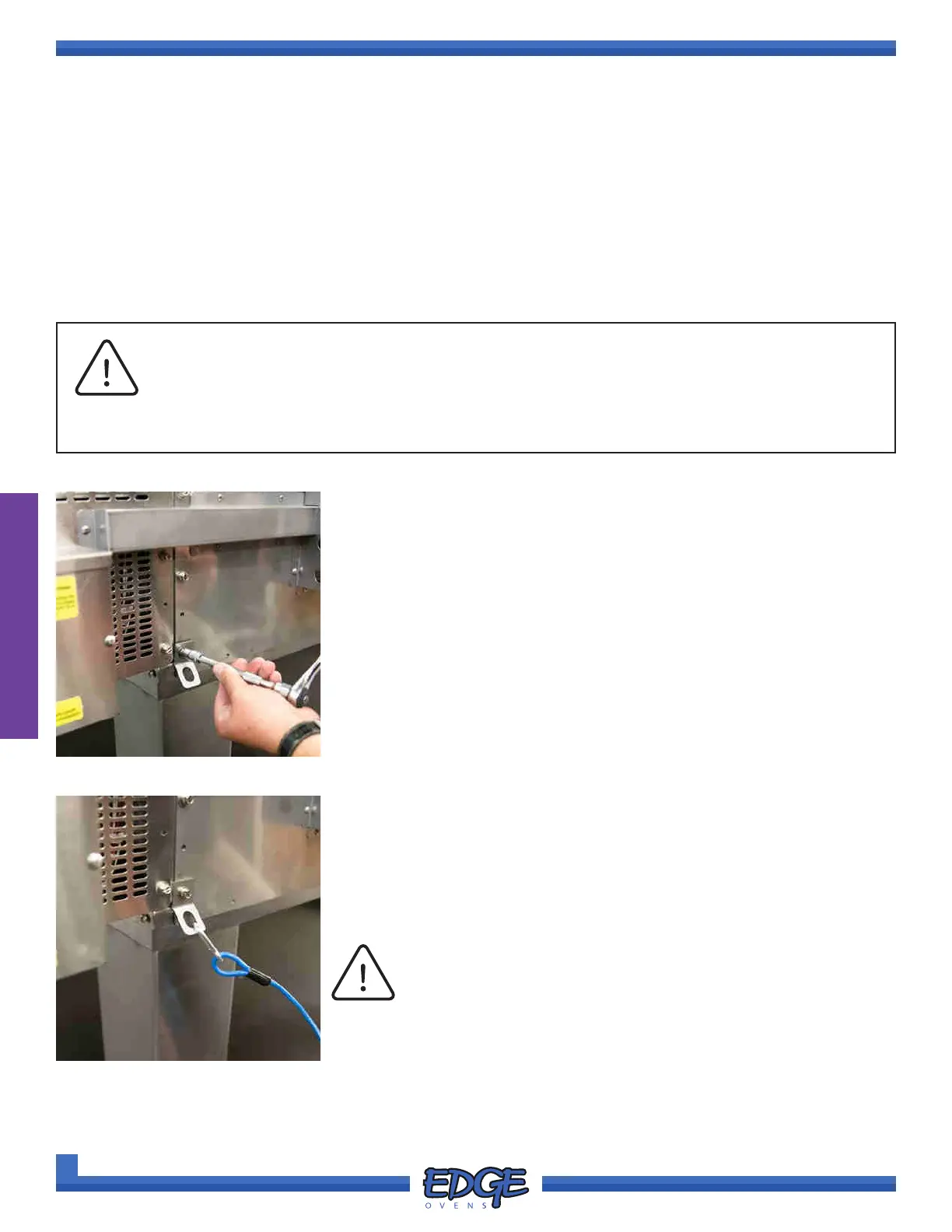

1. If not already installed on the back of your BOTTOM oven, remove
RESTRAINT EYELET BRACKET from hardware pack.
2. Remove the lowest of the ve (5) 1/4” bolts located on the back of the
oven on the control cabinet side of the lowest oven in the stack, using
a 3/8” socket and ratchet. RETAIL REMOVED HARDWARE FOR
LATER USE.
3. Install the restraint eyelet bracket using the 1/4” bolt, split washer and
at washer previously removed. (Figure 2-104)
FIGURE 2-104
4. Install the restraint cable and x to structural member of a wall or oor.
(Figure 2-105)
5. Maneuver the oven into its nal position and lock the casters.
FIGURE 2-105
FINAL CONNECTIONS
IMPORTANT
When performing maintenance or cleaning related functions,
ensure that the restraint is reconnected as soon as these
functions are completed and the oven is returned to its
normally installed position.
NOTICE
