REPLACING THE MAIN ORIFICE

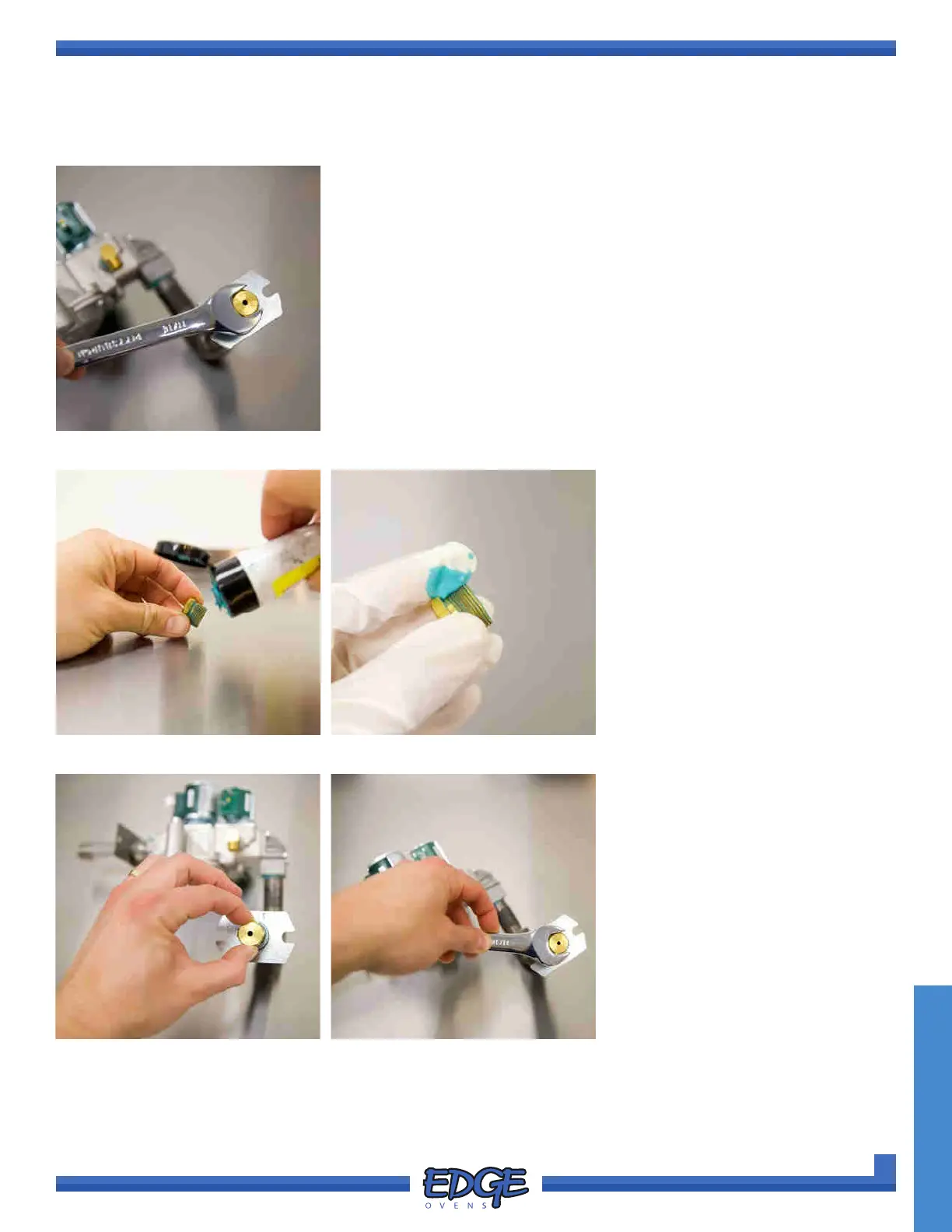

1. Using an 11/16” wrench, remove the MAIN ORIFICE from the holder.
(Figure 4-11)
FIGURE 4-11
2. Apply a thin coating of pipe
thread sealant to the new orice
threads. (Figure 4-12 and Figure
4-13)
FIGURE 4-14
3. Install the new orice by hand
(Figure 4-14) and secure using
an 11/16” wrench (Figure 4-15).
FIGURE 4-12 FIGURE 4-13
FIGURE 4-15
