SERVICE
GAS CONVERSION
INSTALLING THE GAS TRAIN
1. Thread the gas train through the
side wall of the cabinet and seat
the orice holder against the
burner and retaining threaded
studs. (Figure 4-39 & Figure
4-40)

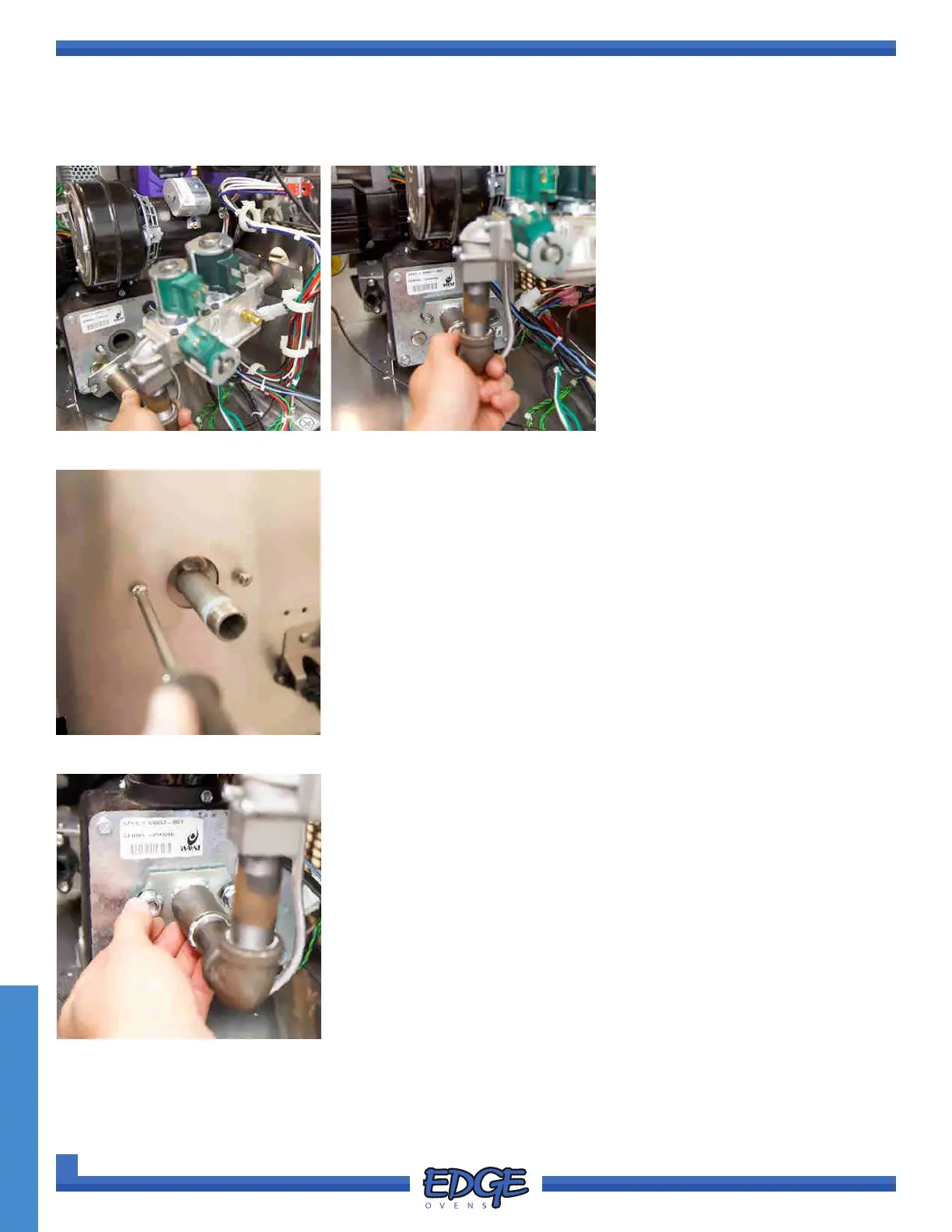

FIGURE 4-39
2. Install the two (2) Philips screws to secure the gas train to the cabinet
side wall. (Figure 4-41)
FIGURE 4-42
3. Start the two (2) 1/2” nuts on the studs for only a few threads. (Figure
4-42)
FIGURE 4-40
FIGURE 4-41
