OPERATION
OVEN OPERATION

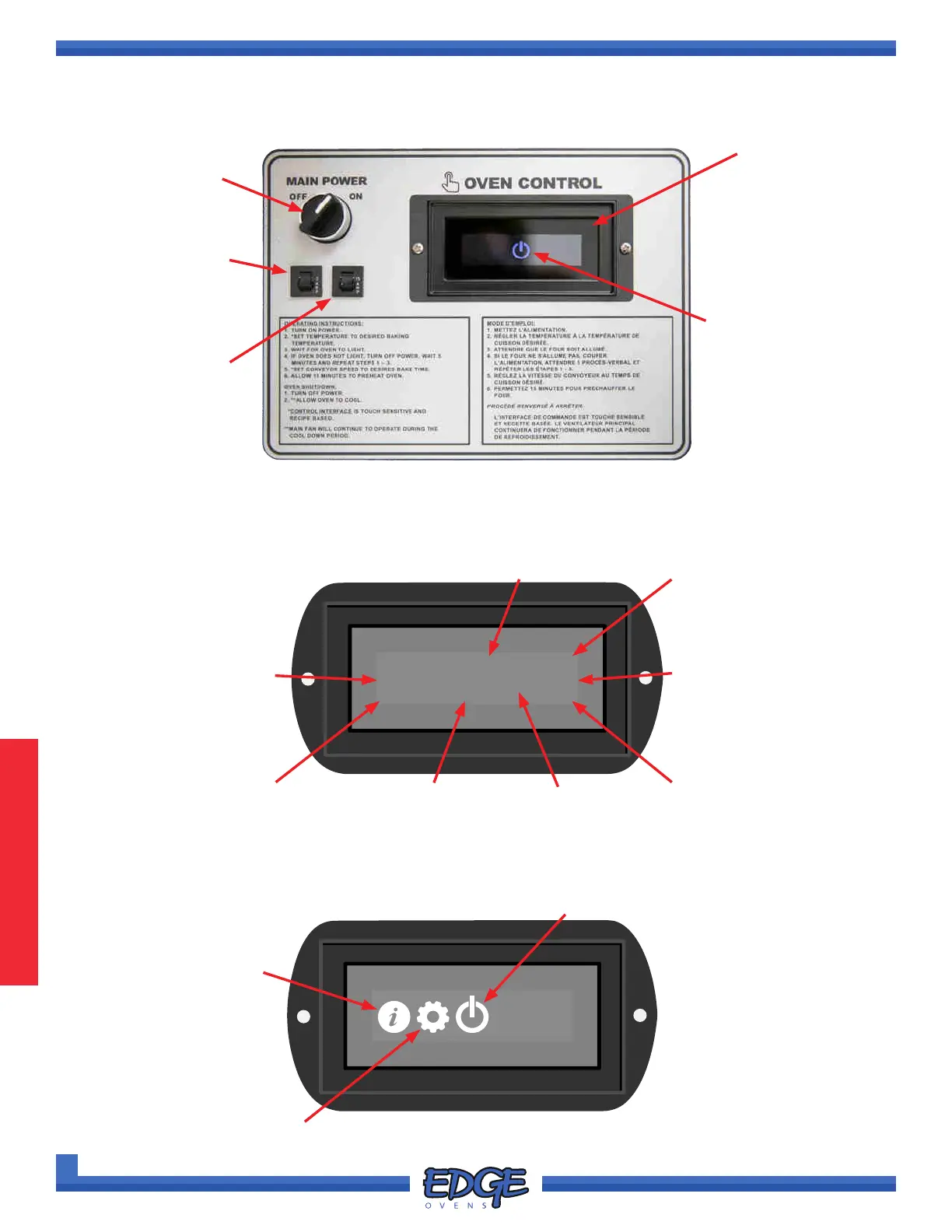

G2 CONTROLS
MAIN POWER
USER INTERFACE
(UI)
TOUCH TO TURN
OVEN ON
CONTROL SYSTEM
BREAKER (3A)
MAIN BLOWER
FAN BREAKER
(10A or 15A)
MANUAL
470°F
F-L►R
06:00
R-L►R
04:30
60.0Hz
BAKE TIME OF STANDARD BELT
OR SPLIT-BELT FRONT CHANNEL
BAKE TIME OF SPLIT-BELT
REAR CHANNEL
BELT DIRECTION OF REAR
CHANNEL OF SPLIT BELT
BELT DIRECTION OF
STANDARD BELT OR SPLIT-
BELT FRONT CHANNEL
OVEN
TEMPERATURE
MAIN BLOWER FAN SPEED
(MODEL SPECIFIC)RECIPE MODE
UI TOUCH SCREEN
MAIN OPERATING SCREEN (DEFAULT SCREEN)
SYSTEM MENU
POWER OFF
SETTINGS MENU
INFORMATION
SP
SET POINT
REACHED
INDICATOR
